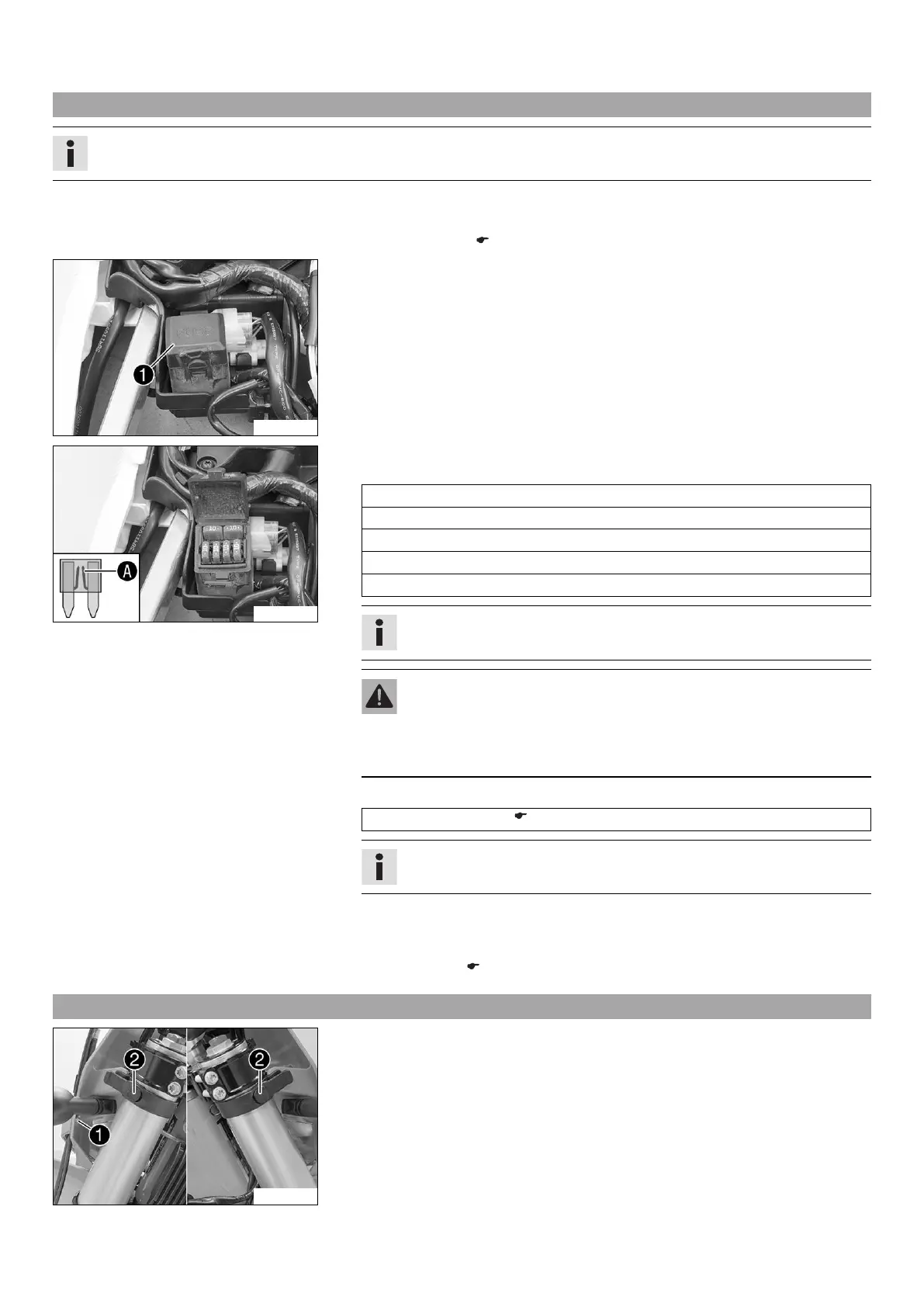

15 ELECTRICAL SYSTEM 96
15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 64)
K00095-10
Main work
–
Open fuse box cover
.
K00094-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - EFI control unit
Fuse 2 - 10 A - fuel pump
Fuse 3 - 10 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 4 - 10 A - horn, brake light, turn signal, radiator fan
Fuses res - 10 A - spare fuses
Info
A defective fuse can be identified by the burned-out fuse wire
.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 121)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 64)
15.6 Removing headlight mask with headlight
K00117-10
(All EXC models)
– Switch off all power consumers and switch off the engine.
–
Remove screw
and take off the clamp.
–
Release rubber straps
. Slide the headlight mask up and swing it forward.
