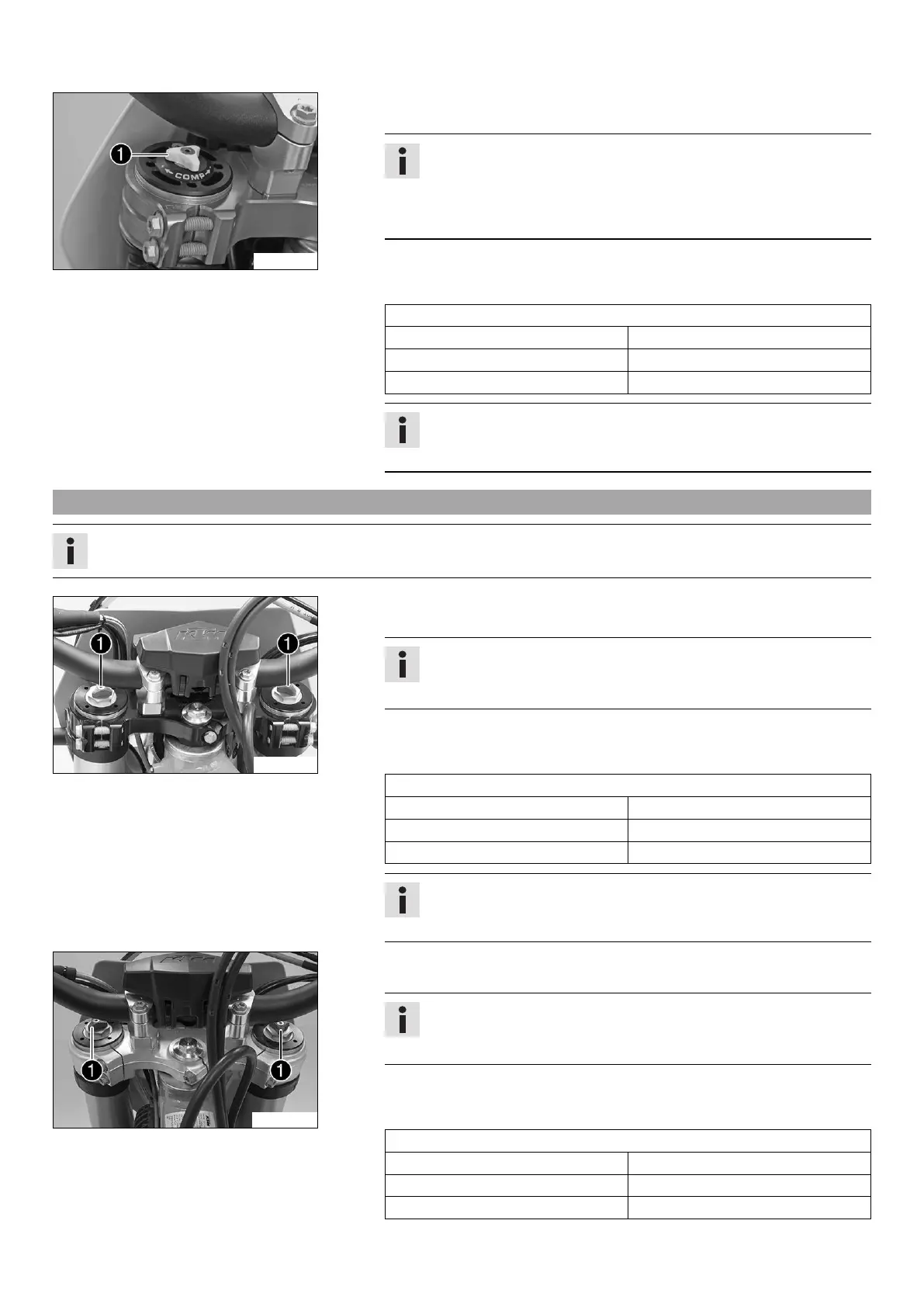

11 TUNING THE CHASSIS 45
B01206-11
(EXC Six Days)
–
Turn the white adjusting screw
all the way clockwise.
Info
Adjusting screw
is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white
adjusting screw). The rebound damping is located in the right fork
leg REB (red adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Compression damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
11.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
K00067-10
(EXC EU/AU)
–
Turn adjusting screws
clockwise all the way.
Info
Adjusting screws
are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 18 clicks
Sport 16 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
M01002-10
(XC‑W)
–
Turn adjusting screws
clockwise all the way.
Info
Adjusting screws
are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 18 clicks
Sport 16 clicks
