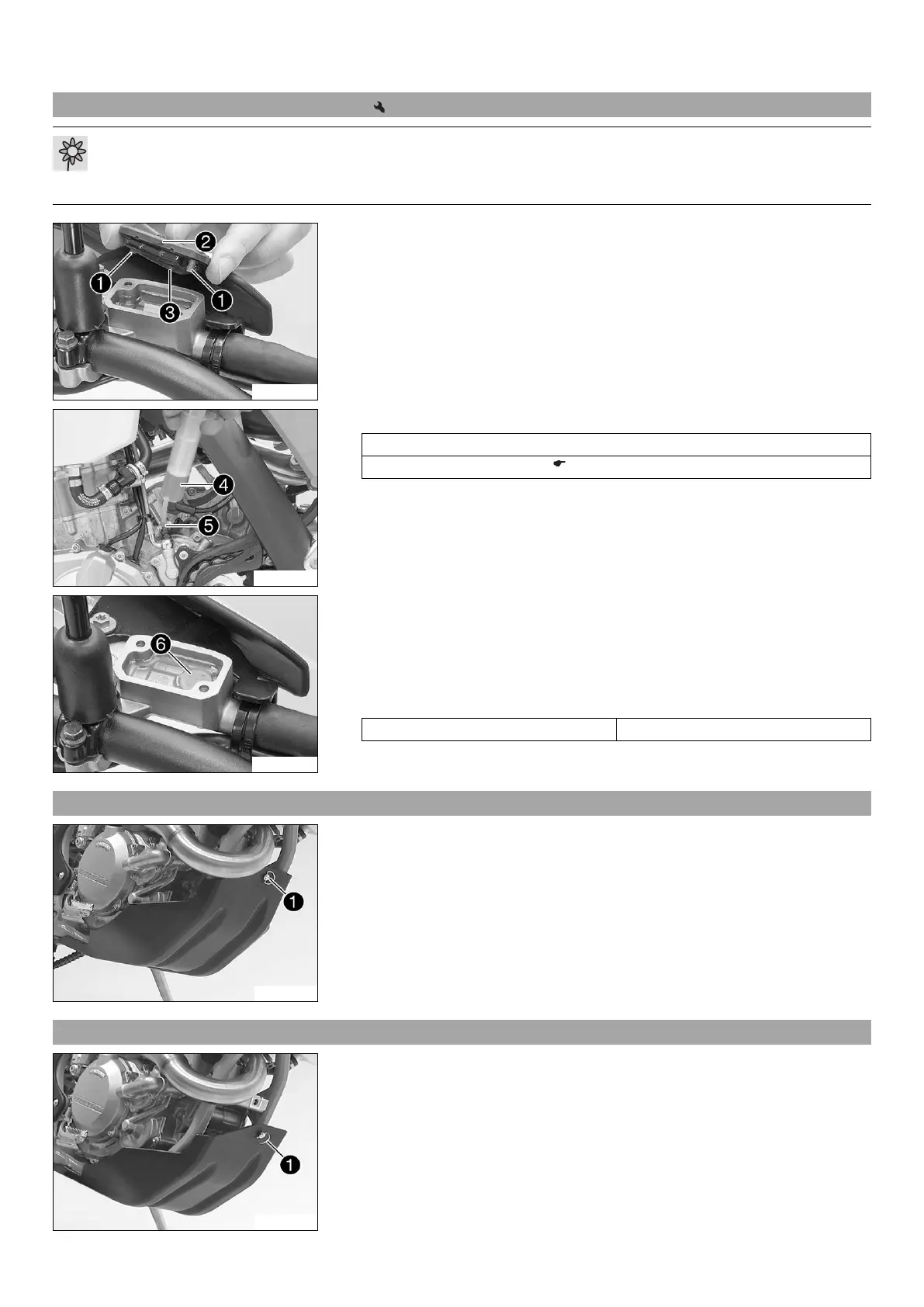

12 SERVICE WORK ON THE CHASSIS 78
12.47 Changing the hydraulic clutch fluid
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
M00208-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws
.
–
Remove cover
with membrane
.
K00134-10
–
Fill bleeding syringe
with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 125)
–
On the clutch slave cylinder, remove bleeder screw
and mount bleeding
syringe
.
M00209-10
–
Inject the liquid into the system until it escapes from openings
of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten screws bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container rim 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
12.48 Removing the engine guard (All EXC models)
S00818-10
–
Turn quick release
counterclockwise until it disengages. Remove the engine
guard.
12.49 Installing the engine guard (All EXC models)
S00819-10
– Attach the engine guard on the frame at the rear and swing up at the front.
–
Turn quick release
clockwise all the way.
