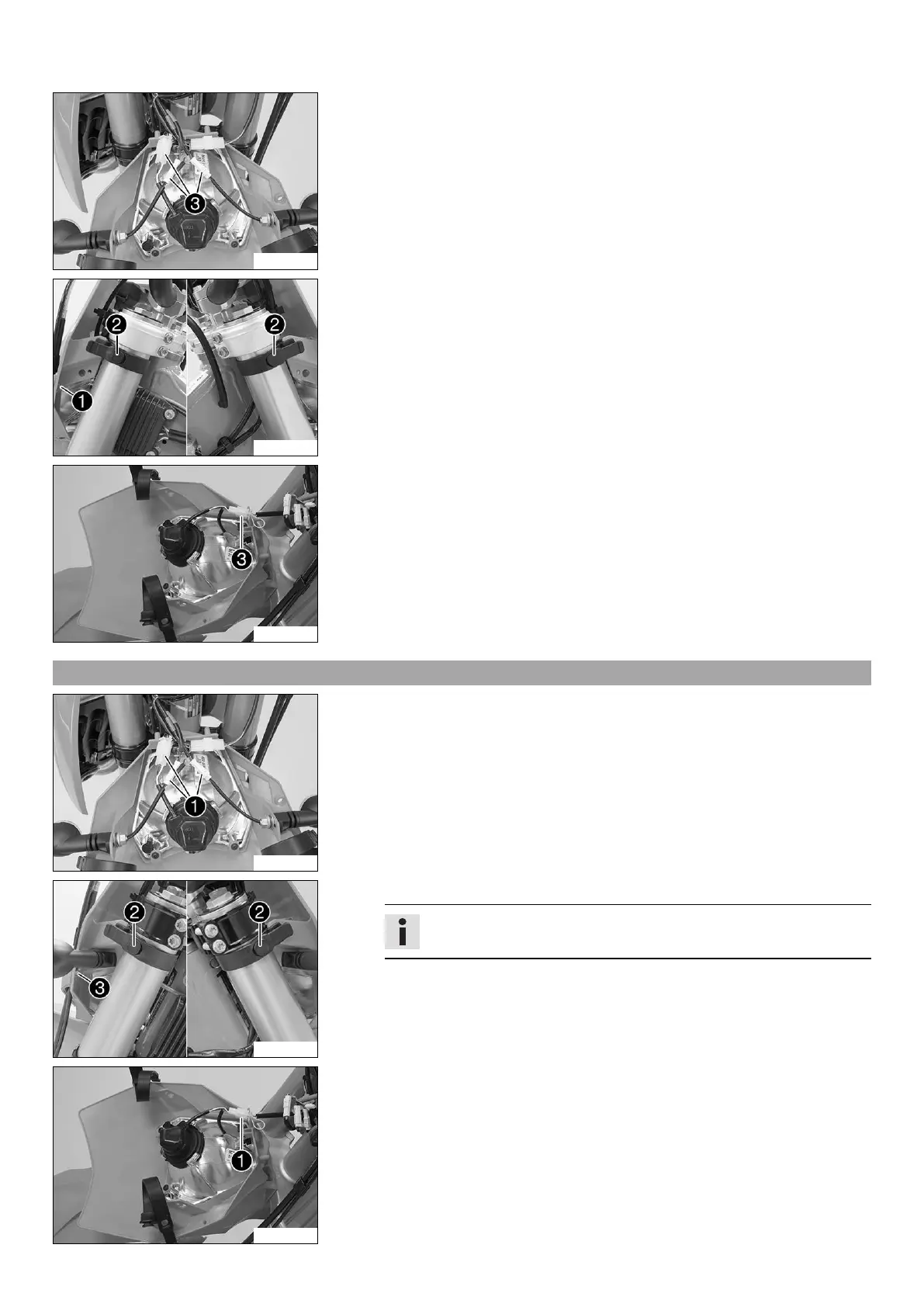

KTM 450 EXC - Refitting the Headlight Mask with the Headlight

15 ELECTRICAL SYSTEM 97
K00118-10
–
Detach plug-in connectors

and take off the headlight mask with the head-
light.
K00151-10
(XC‑W)
– Switch off all power consumers and switch off the engine.
–
Remove screw

and take off the clamp.
–
Release rubber straps

. Slide the headlight mask up and swing it forward.
K00143-10
–
Detach plug-in connector

and take off the headlight mask with the head-
light.
15.7 Refitting the headlight mask with the headlight
K00118-11
Main work
(All EXC models)
–
Connect plug-in connectors

.
K00117-11
–
Position the headlight mask and fix it with rubber straps

.
Info
Ensure the holding lugs engage in the fender.
– Position the brake line and wiring harness. Put the clamp on and mount and
tighten screw

.
K00143-11
(XC‑W)
–
Connect plug-in connector

.
