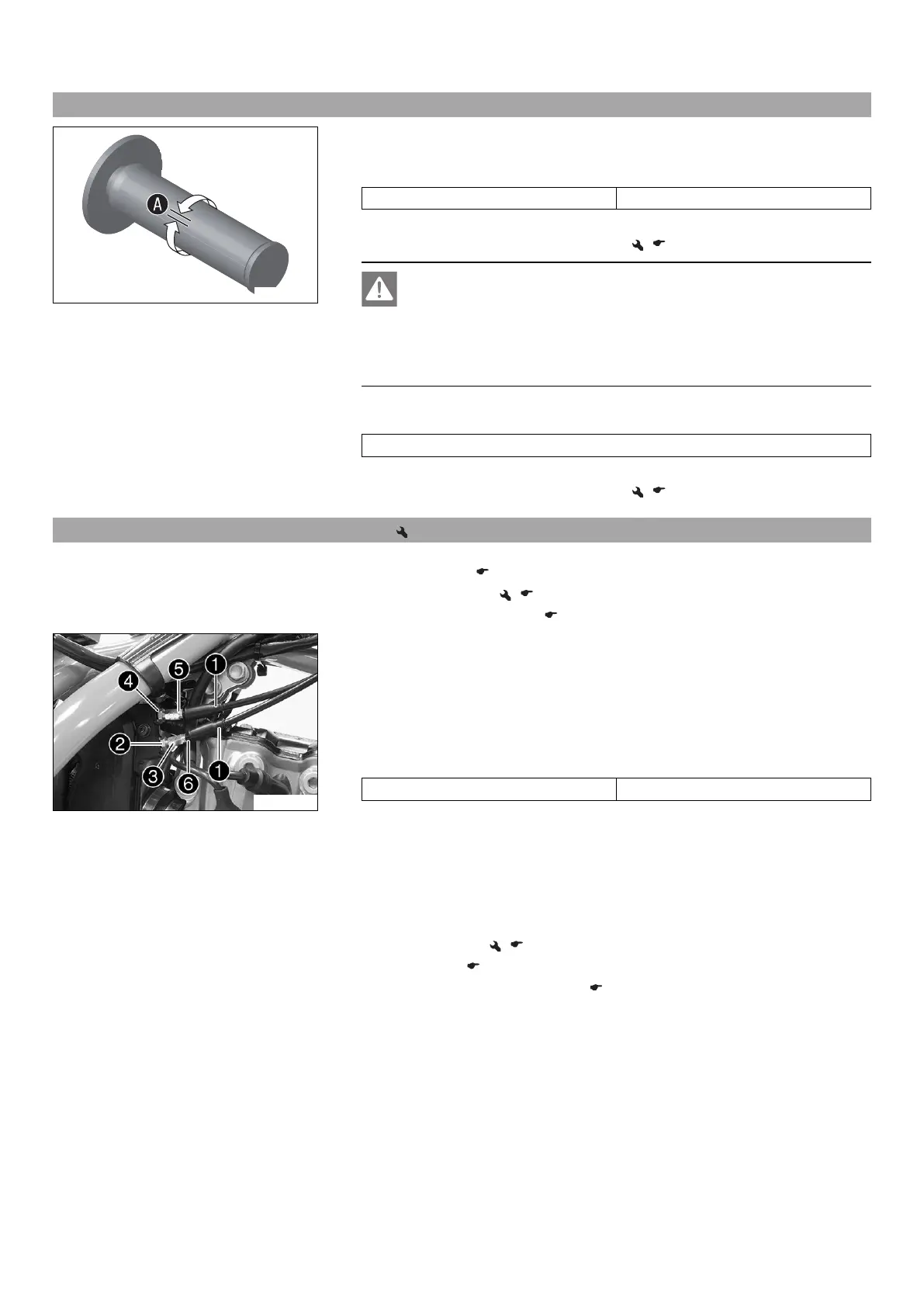

17 TUNING THE ENGINE 104
17.1 Checking the play in the throttle cable
400192-11
– Check the throttle grip for smooth operation.
– Move the handlebar to the straight-ahead position. Move the throttle grip back and
forth slightly to ascertain play
in the throttle cable.
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
» If the throttle cable play does not meet specifications:
– Adjust the play in the throttle cable. ( p. 104)
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result
in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
– Start the engine and let it run idle. Move the handlebar to and fro over the entire
steering range.
The idle speed must not change.
» If the idle speed changes:
– Adjust the play in the throttle cable. ( p. 104)
17.2 Adjusting the play in the throttle cable
Preparatory work
– Remove the seat. ( p. 64)
– Remove the fuel tank. ( p. 69)
– Check throttle cable routing. ( p. 76)
K00147-10
Main work
– Move the handlebar to the straight-ahead position.
–
Push back sleeves
.
–
Loosen nut
. Turn adjusting screw
in as far as possible.
–
Loosen nut
. Turn adjusting screw
so that there is play in the throttle cable
at the throttle grip.
Guideline
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
–
Tighten nut
.
–
Press and hold the throttle grip in the closed setting. Turn adjusting screw
out
until there is no play in throttle cable
.
–
Tighten nut
.
–
Slide on sleeves
. Check the throttle grip for smooth operation.
Finishing work
– Install the fuel tank. ( p. 70)
– Mount the seat. ( p. 64)
– Check the play in the throttle cable. ( p. 104)
