18 SERVICE WORK ON THE ENGINE 109
K00129-10
–

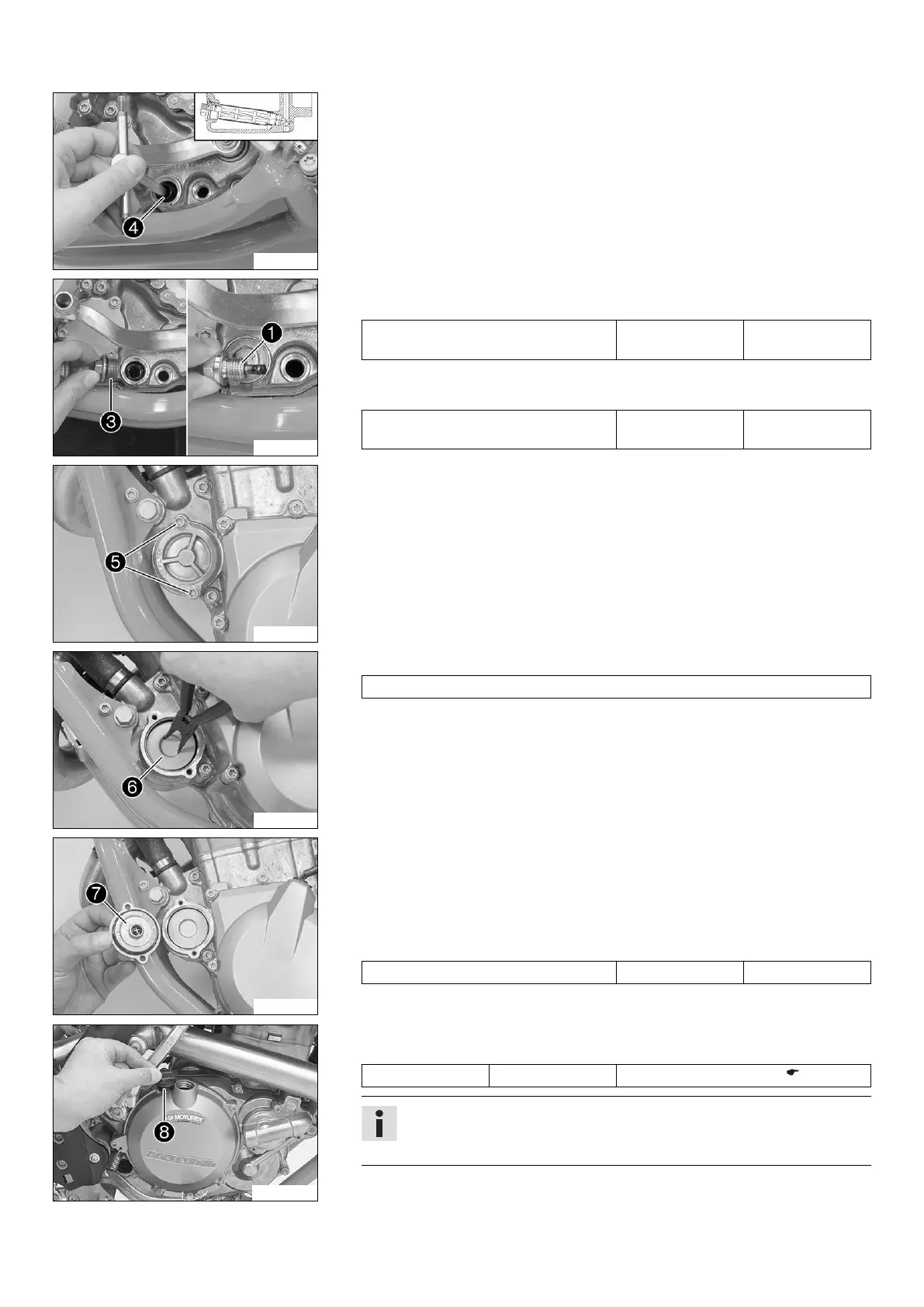

Position oil screen
with the O-rings on a pin wrench.
– Position the pin wrench through the drill hole of the screw plug in the opposite sec-
tion of the engine case.
– Push the oil screen all the way into the engine case.
K00130-10
–
Mount and tighten screw plug
with the O-ring.
Guideline
Screw plug, engine oil screen M20x1.5 15 Nm
(11.1 lbf ft)
–
Mount and tighten the oil drain plug
with the magnet and a new seal ring.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
K00131-10
–
Remove screws
. Remove the oil filter cover with the O-ring.
K00132-10
–
Pull oil filter
out of the oil filter housing.
Circlip pliers reverse (51012011000)
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surface.
K00133-10
– Lay the motorcycle on its side and fill the oil filter housing to about ⅓ full with
engine oil.
– Insert the oil filter into the oil filter housing.
–
Oil the O-ring of the oil filter cover and mount it with the oil filter cover
.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
– Stand the motorcycle upright.
M00229-10
–
Remove the oil filler plug
with the O-ring from the clutch cover and fill up with
engine oil.
Engine oil 1.5 l (1.6 qt.) Engine oil (SAE 10W/50) ( p. 125)
Info
Too little engine oil or poor-quality engine oil results in premature wear to
the engine.
– Install and tighten the oil filler plug with O-ring.
