12 SERVICE WORK ON THE CHASSIS 53
M00992-10
(XC‑W)

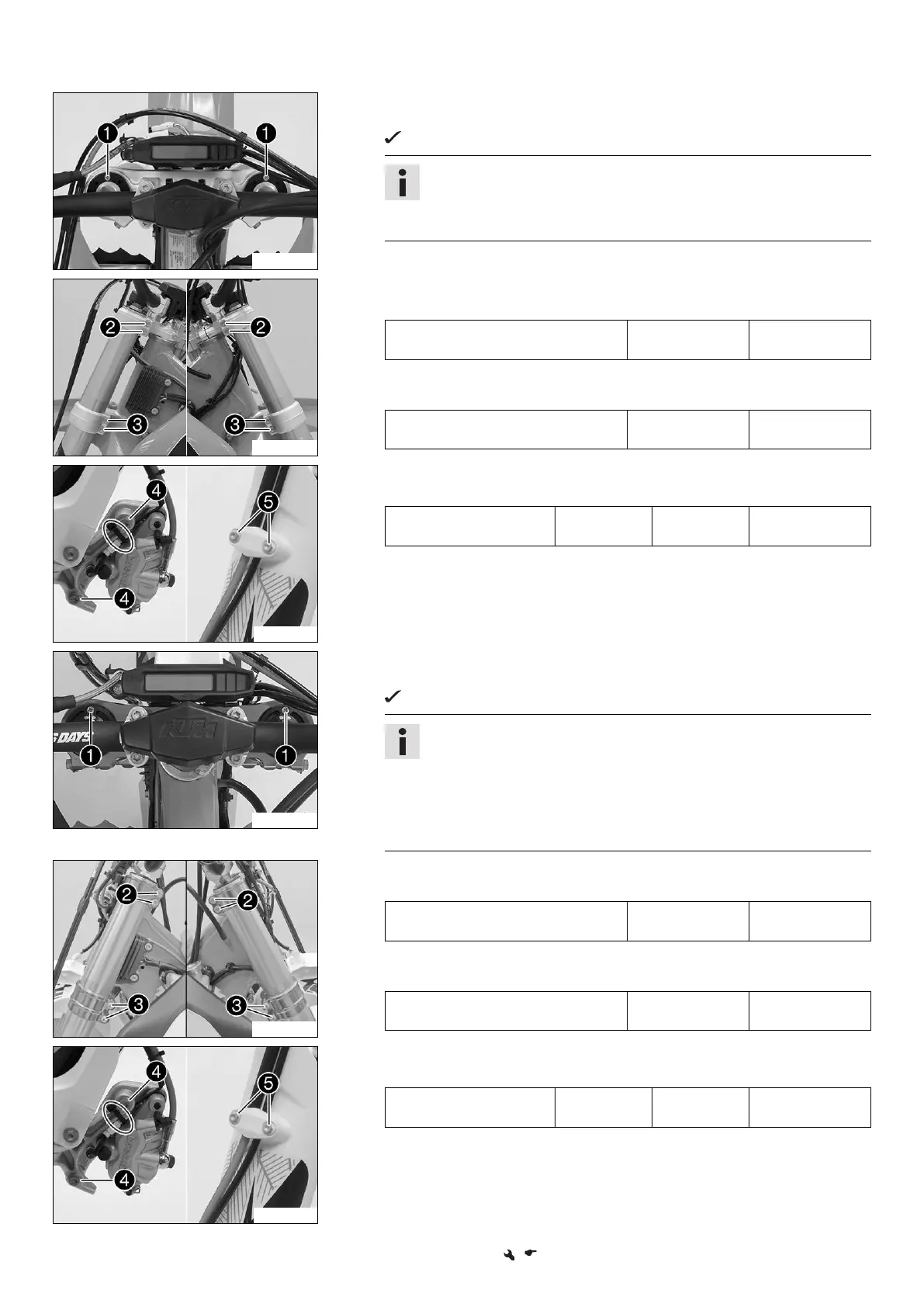

– Position the fork legs.
Bleeder screws
are positioned toward the front.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
M00991-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
K00088-10
–
Position brake caliper, and mount and tighten screws
.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount cable binder.
– Position the brake line, wiring harness, and clamp. Mount and tighten
screws
.
M00137-10
(EXC Six Days)
– Position the fork legs.
Bleeder screws
are positioned toward the front.
Info
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
M00138-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
K00088-10
–
Position brake caliper, and mount and tighten screws
.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount cable binder.
– Position the brake line, wiring harness, and clamp. Mount and tighten
screws
.
Finishing work
– Install the front wheel. ( p. 88)
