12 SERVICE WORK ON THE CHASSIS 71
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Main work
– Check throttle cable routing. ( p. 76)
(EXC EU/AU, XC‑W)
– Position the fuel tank and fit the two spoilers to the sides in front of the radia-
tor bracket.
– Make sure that the throttle cable or other cables or are not trapped or damaged.
(EXC Six Days)
– Position the fuel tank and fit the two spoilers to the sides between the radiator
and radiator shield.
– Make sure that no cables are trapped or damaged.

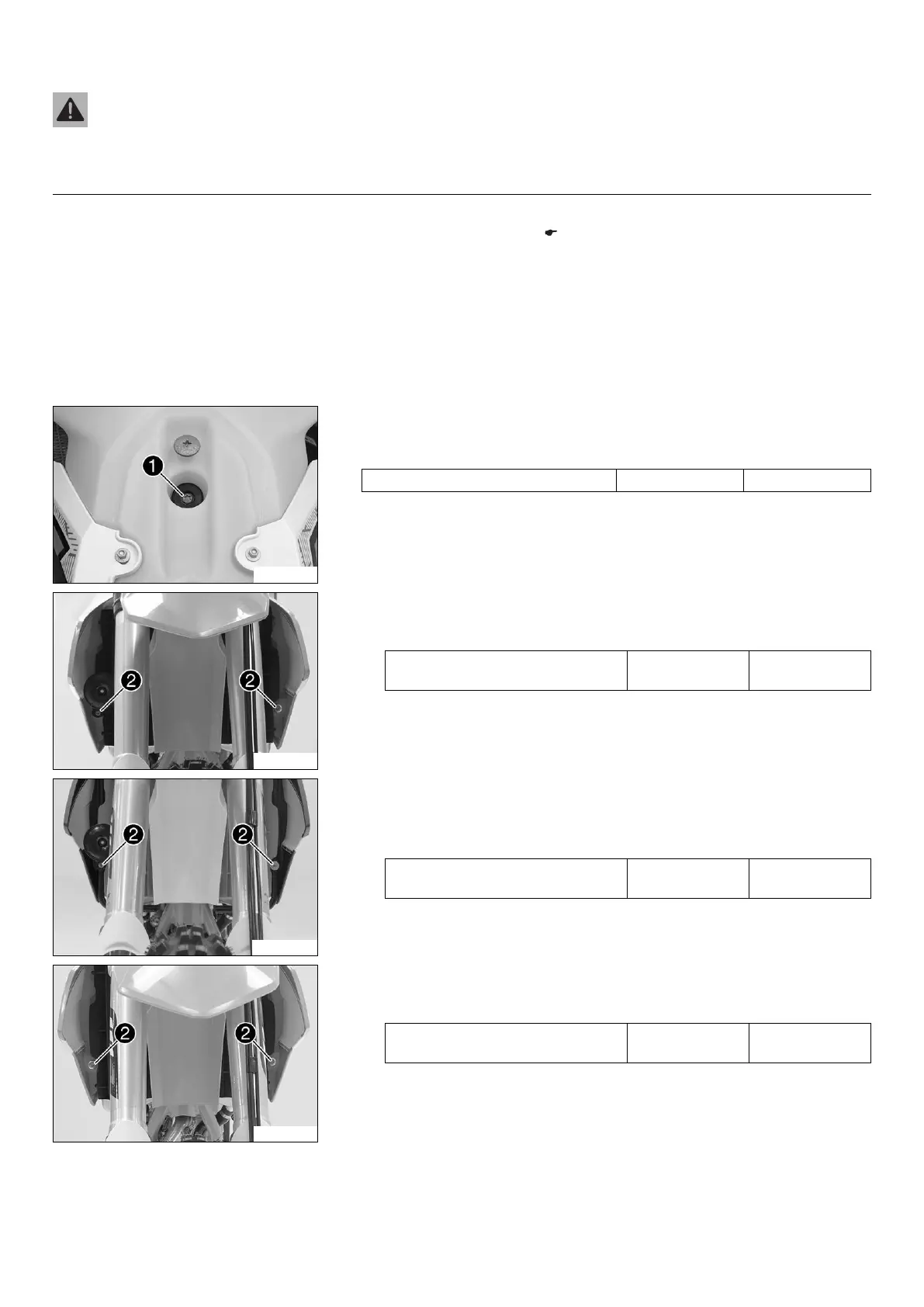

K00104-11
– Mount the fuel tank breather.
–
Mount and tighten screw
with the rubber bushing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
K00103-11
(EXC EU/AU)
–
Position the collar bushings and horn, and mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Connect the connector of the horn.
M01023-11
(EXC Six Days)
– Position collar bushings between the spoiler and radiator shield.
–
Position the horn, and fit and tighten screws
with washers.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Connect the connector of the horn.
K00146-11
(XC‑W)
–
Position the collar bushings, and mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
