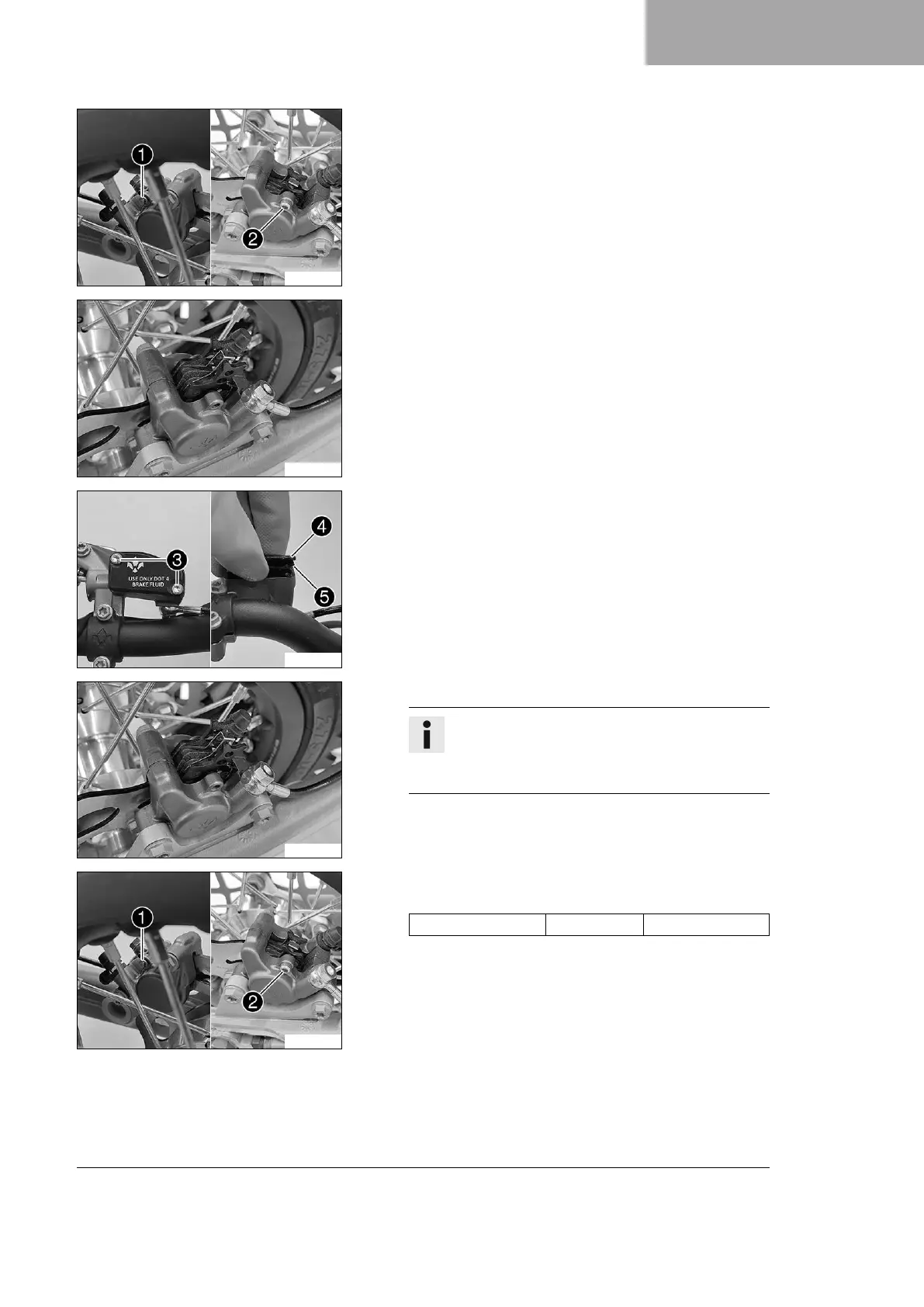

BRAKE SYSTEM 14
79
M02060-10
Main work
(SX‑E 3)
–
Remove lock ring
1
.
–
Remove screw
2
.
M02061-01
–
Remove the brake linings.
– Clean the brake caliper and the brake caliper bracket.
M02057-11
–
Remove screws
3
.
–
Take off cover
4
with membrane
5
.
– Press the brake piston back into the basic position and
ensure that brake fluid does not flow out of the brake fluid
reservoir; extract some if necessary.
M02061-01
– Position the new brake linings.
Info
Always change the brake linings in pairs.
Ensure that the brake linings are correctly posi-
tioned in the holding spring.
M02060-10
–
Mount and tighten screw
2
.
Guideline
Screw, brake linings M5 8 Nm (5.9 lbf ft)
–
Mount lock ring
1
.
