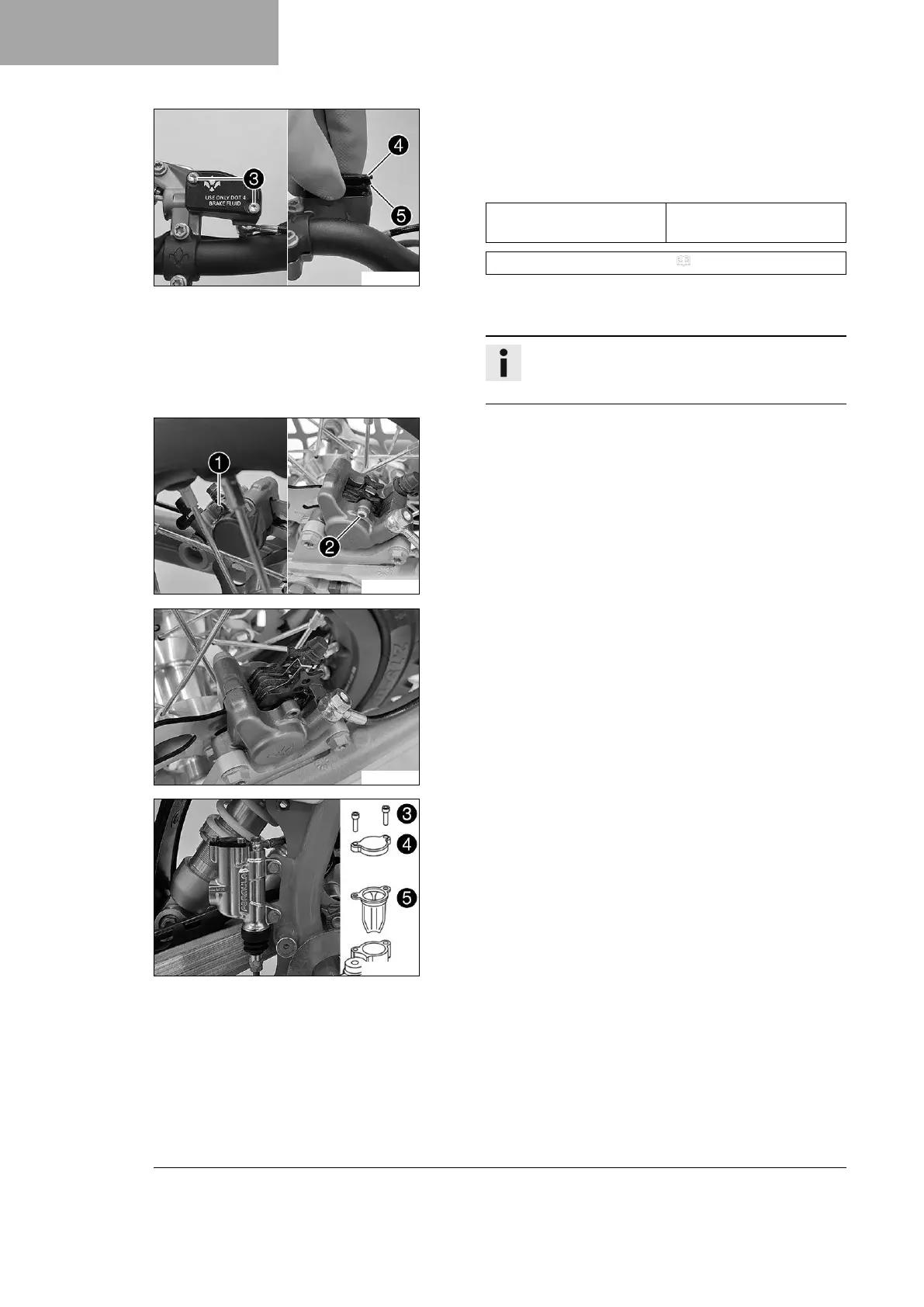

14 BRAKE SYSTEM
80
M02057-11
– Operate the rear brake lever several times until the brake
linings are in contact with the brake disc and there is a
pressure point.
– Check the brake fluid level and correct if necessary.
Guideline
Brake fluid level below
reservoir rim
4 mm (0.16 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
–
Position cover
4
with membrane
5
.
–
Mount and tighten screws
3
.
Info
Use water to immediately clean up any brake fluid
that has overflowed or spilled.
M02060-10
(SX‑E 5)
–
Remove lock ring
1
.
–
Remove screw
2
.
M02061-01
– Remove the brake linings.
– Clean the brake caliper and the brake caliper bracket.
M02025-14
–
Remove screws
3
.
–
Take off cover
4
with membrane
5
.
– Press the brake piston back into the basic position and
ensure that brake fluid does not flow out of the brake fluid
reservoir; extract some if necessary.
