BRAKE SYSTEM 14
81
M02061-01

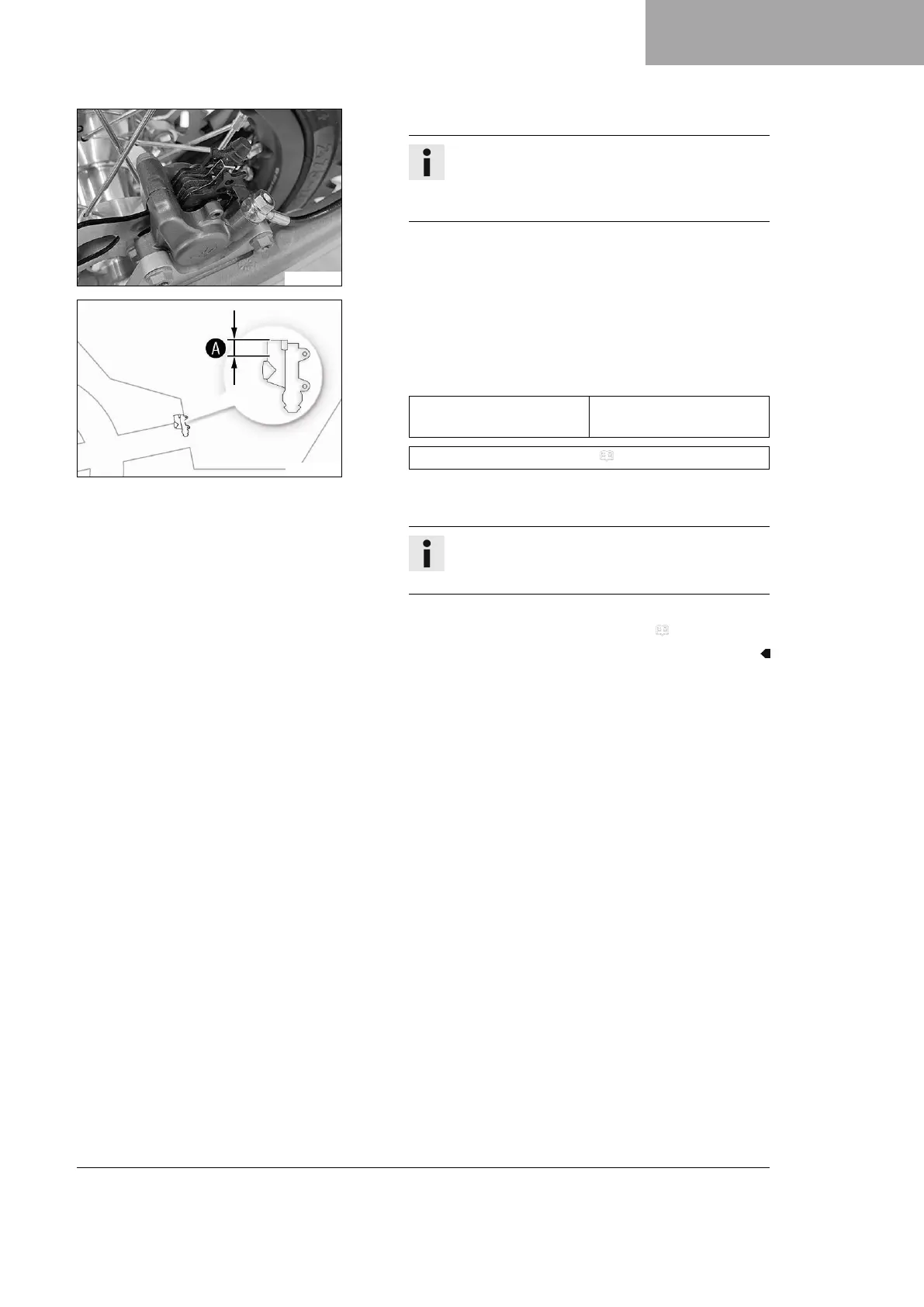

– Position the new brake linings.
Info
Always change the brake linings in pairs.
Ensure that the brake linings are correctly posi-
tioned in the holding spring.
H01654-10
–
Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pres-
sure point.
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
10 mm (0.39 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 105)
– Position the cover with the membrane.
– Mount and tighten the screws.
Info
Use water to immediately clean up any brake fluid
that has overflowed or spilled.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 46)
