16 LV TRACTION BATTERY, BATTERY CHARGER
90
Info
If the temperature of the LV traction battery exceeds the permissible value while it is being charged, the
battery charger stops charging. The malfunction is displayed on the multifunctional element.
Once the temperature of the LV traction battery returns to the permissible range, charging is resumed
automatically.

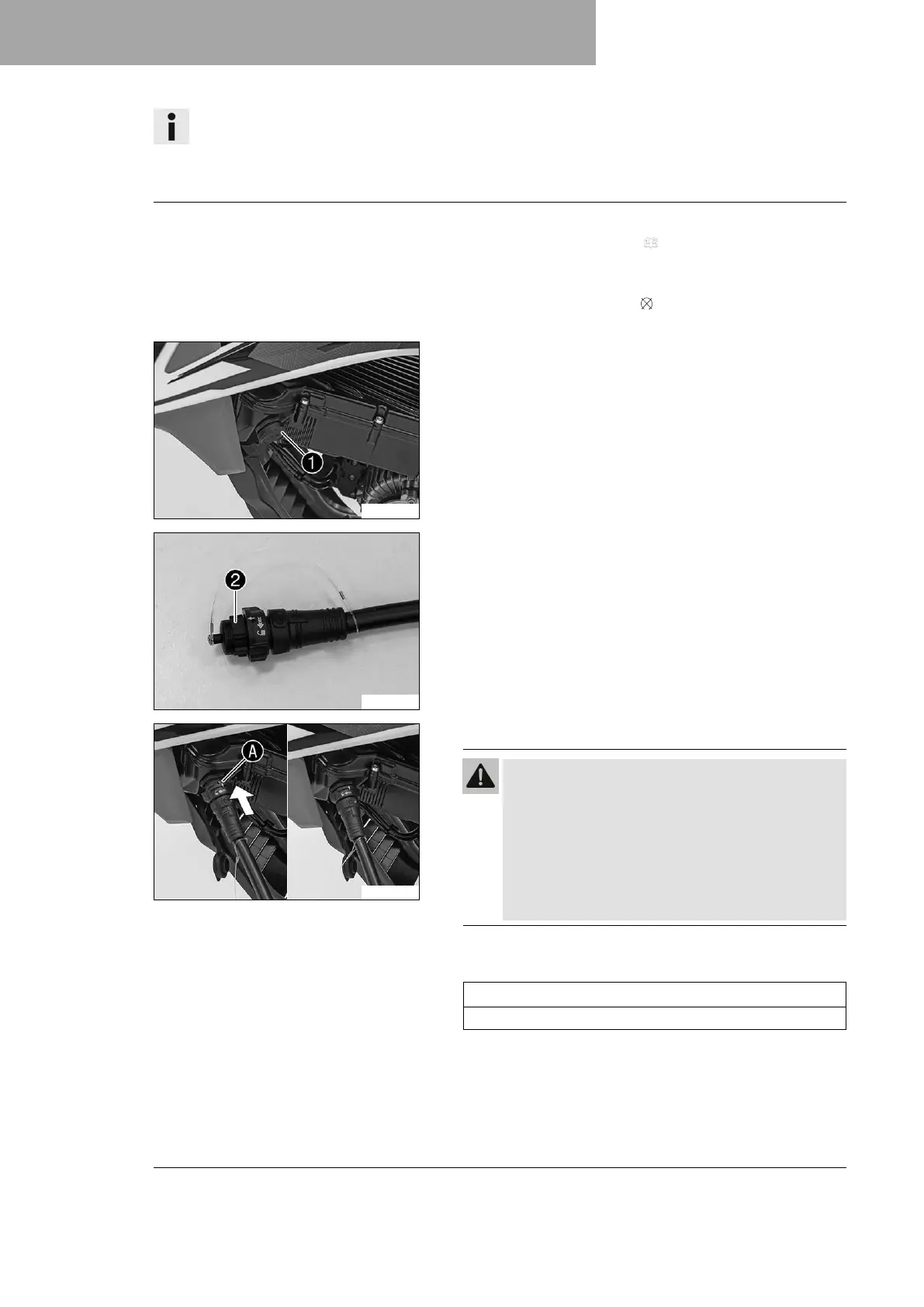

Preparatory work
– Position the battery charger. ( p. 88)
– Press and hold the On/Off button until the multifunctional ele-
ment goes out.
– Remove the magnetic switch from the holder on the handle-
bar.
M01685-10
Main work
–
Remove charging socket protection cap
1
.
M01686-10
–
Remove charging plug protection cap
2
.
M01687-10
– Make sure that all plugs, bushings, and cables are dry.
Warning
Risk of injury The intrinsic safety of the LV traction
battery can only be guaranteed if the original battery
charger is used.
The LV traction battery may only be charged with the
original battery charger.
– Only use the original battery charger to charge the
LV traction battery.
– Connect the battery charger to the LV traction battery.
Guideline
Observe plug marking
A
.
Insert the plug straight so that the contacts are not bent.
