LV TRACTION BATTERY, BATTERY CHARGER 16
91
M01728-02

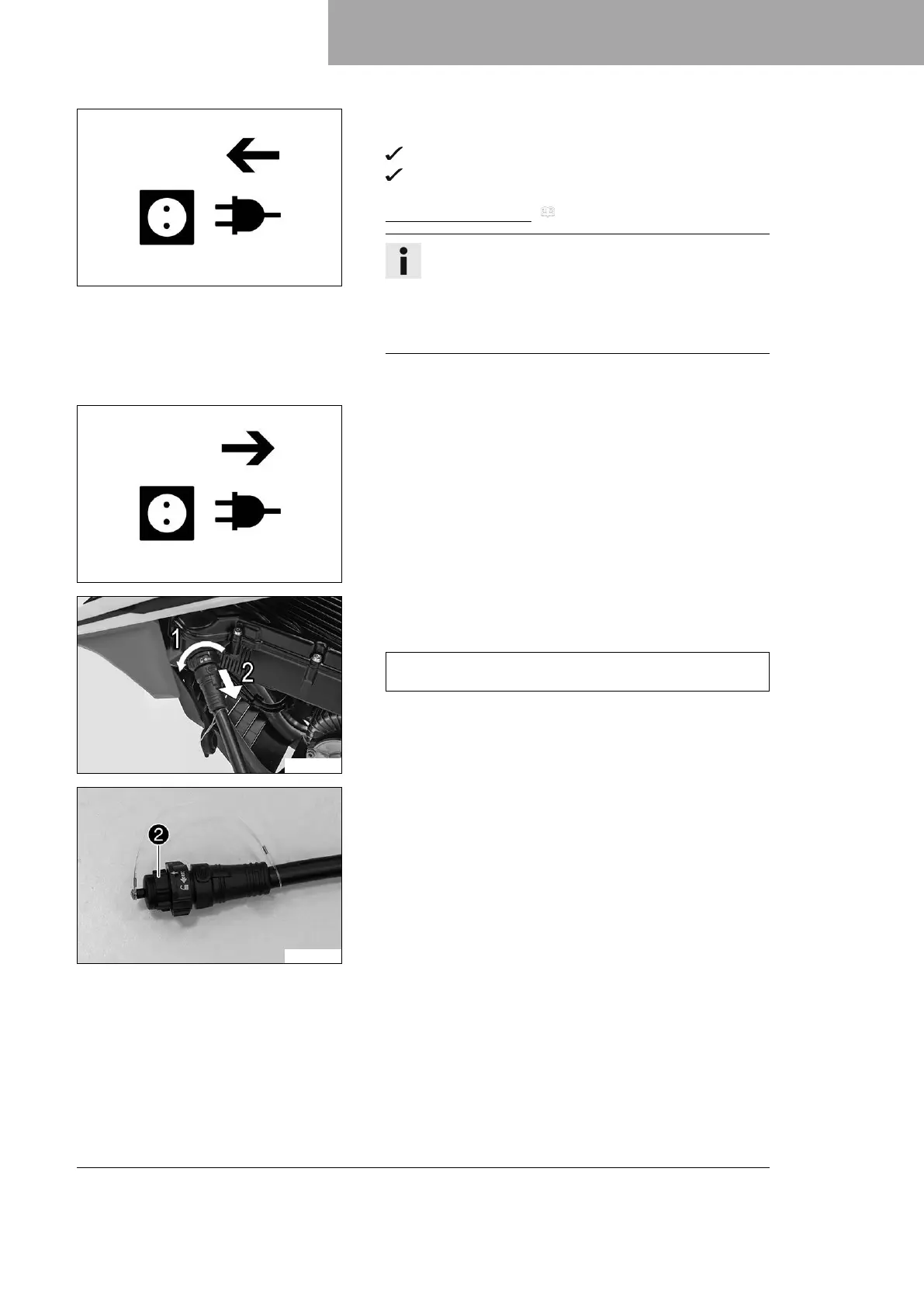

– Connect the power plug for the battery charger to the mains
connection.
Charging starts automatically.
The multifunctional element indicates the charging level.
– Monitor the charging level of the LV traction battery on the
multifunctional element ( p. 20).
Info
It is recommended not to leave the vehicle unattended
for long periods during charging.
When charging is complete, three beeps are emitted
and all segments of the charging level indicator light up
continuously.
– Press and hold the On/Off button until the multifunctional ele-
ment goes out.
M01728-01
– Make sure that all plugs, bushings, and cables are dry.
– Disconnect the battery charger power plug from the mains con-
nection.
M01688-10
– Unlock the charging plug lock counterclockwise and discon-
nect the charging cable from the LV traction battery.
Guideline
Pull on the structured part of the plug. Do not pull on the
cable.
M01686-10
–
Mount charging plug protection cap
