Assembly and fitting
Control box
Quantron S
15
$Assembly and fitting
1. Tractor requirements
Before connecting the control box, make sure the tractor
complies with these conditions:
- Minimum voltage: 12 V: must be ensured even if
several systems are in service (Air conditioning,
Lighting).
2. Electrical connection
The control box kit comprises:

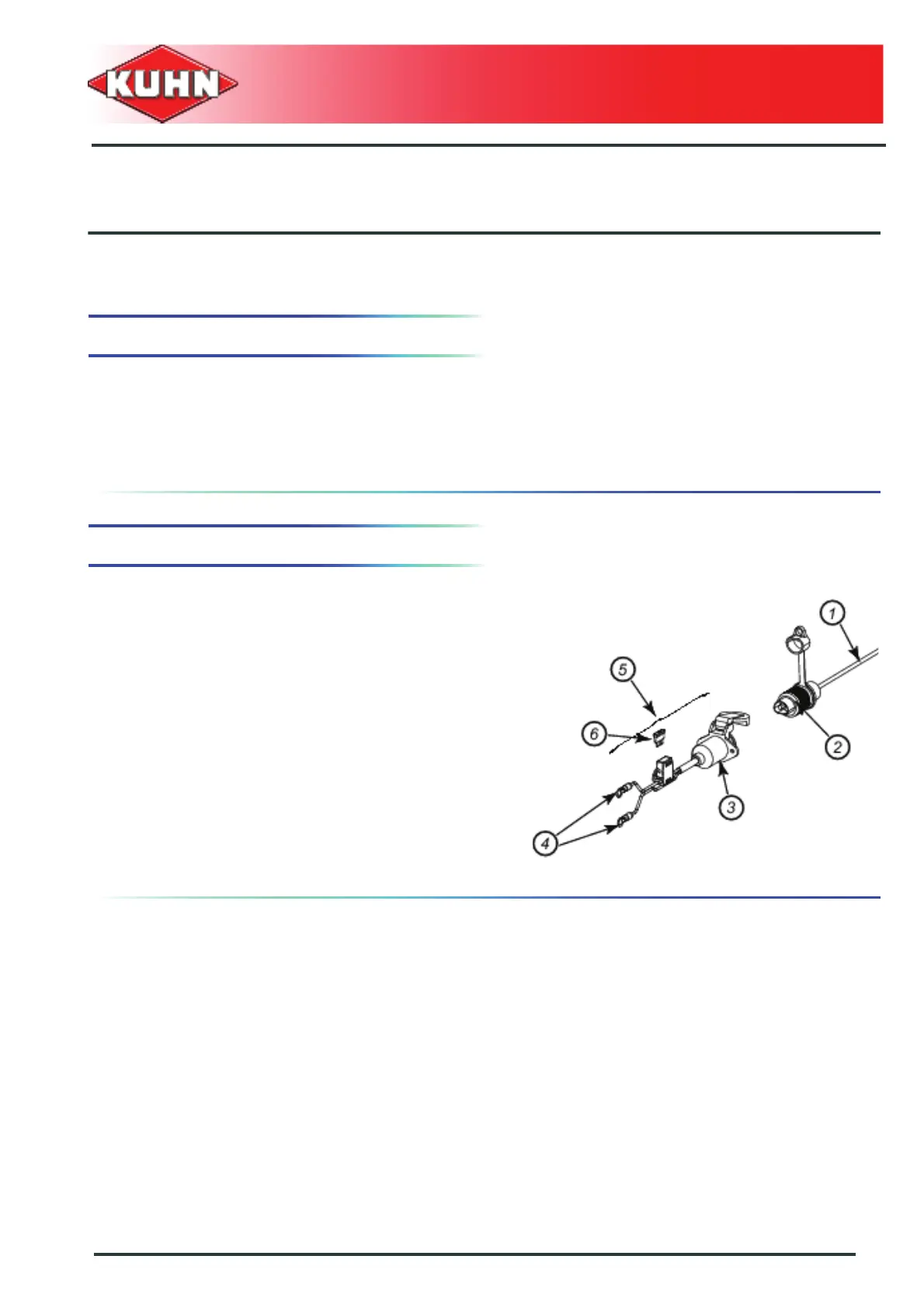

- A wiring harness (1) pre-assembled on the box with a
male connector (2).
Electrical power supply
An electric power supply cable for another tractor can be
ordered under code 83233002.
The cable is connected by the Kuhn dealer to the plus
lugs (brown) and the tractor battery earth (blue).
For a regular and constant electricity supply for the
machines' controls, connect the electricity power cable
directly to the battery.
