Control box
52
Quantron S
System/Test
$System/Test
1. Sensor check

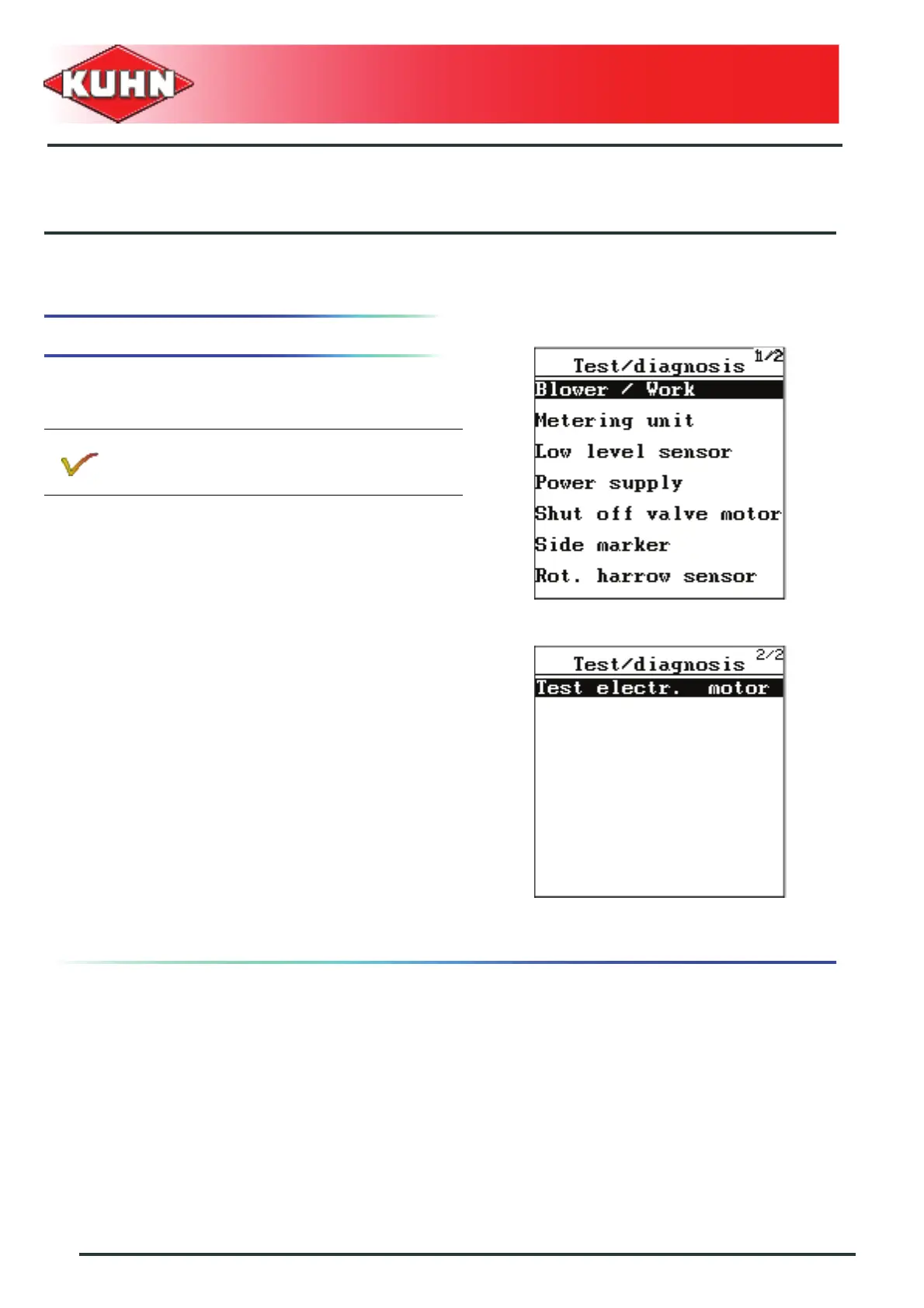

The "Test/diagnosis" menu monitors and indicates the
status of the machine sensors or actors.
- As from the "System - Test" menu, select the "Test -
diagnosis" menu.
- To choose the desired function.
The list of sensors depends from the machine
equipment. Following sensors are controlled by the
control box.
- Blower sensor/Working position sensor
- Metering unit sensor,
- Metering unit hatch sensor:
• Sensor is deactivated: The calibration flap is closed
- Low level sensors (UP/DOWN)
- The power supply
- Tramlining: Position of tramlining motor (Left, Right)
-Markers
• Sensor is deactivated: Markerarm is lifted
- Power harrow sensor
• Sensor is deactivated: Power harrow rotating. The
sensor controls the rotation of the power harrow.
- Electric motor
This menu is only used for information purposes.
