Functioning during work
Control box
Quantron S
47
 Functions available for the BTFR coulter
bar

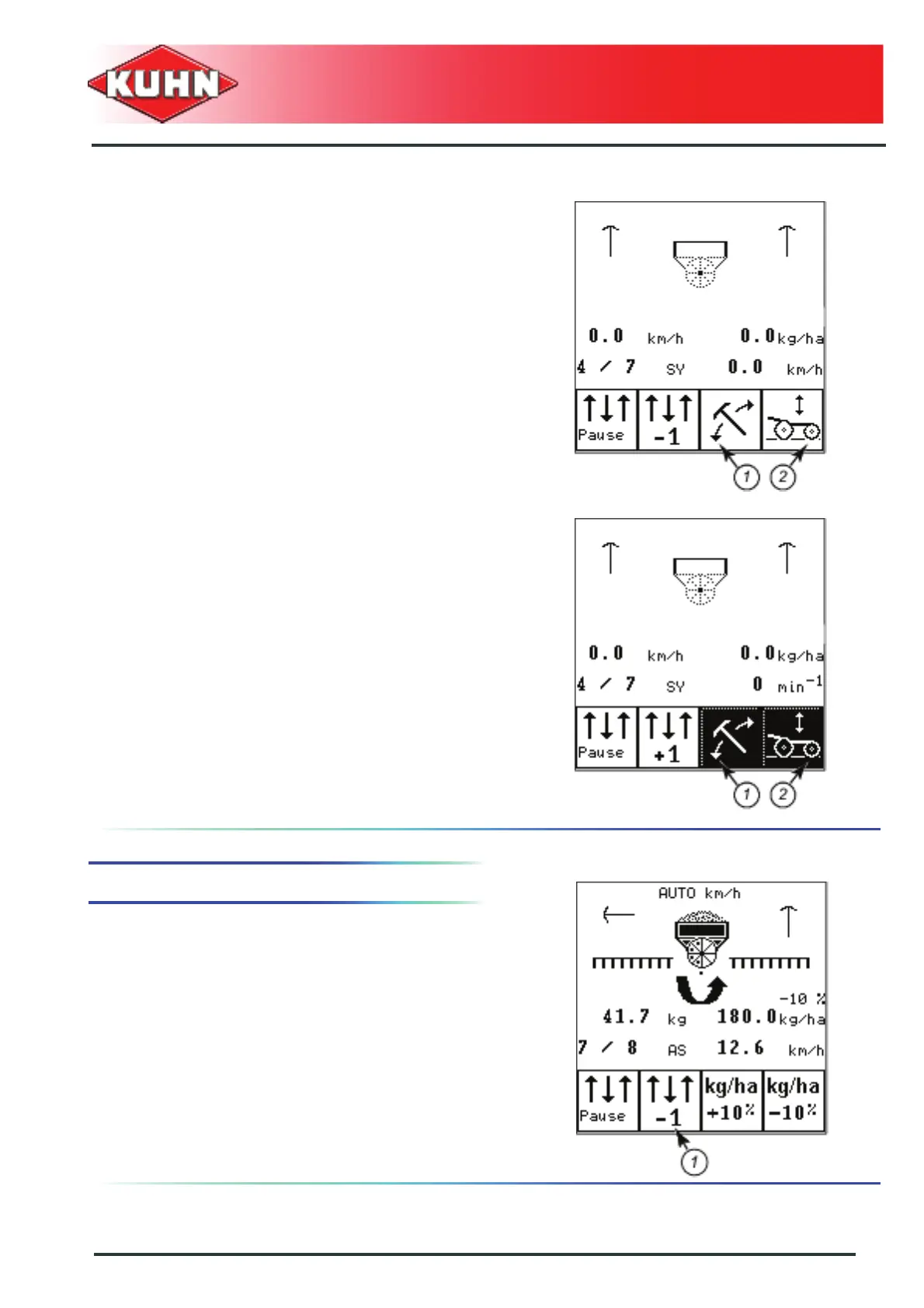

- Press on the button hy: The screen displays the
hydraulic selector functions.
• (1): Side marker control
• (2): Coulter bar control
White background: Functions not activated
Black background: Markers (1) and coulter bar (2) can
be operated.
3. Tramlining rhythm adjustment
The tramlining rhythm can be modified by hand if
necessary.
Condition: the working screen must be displayed.
- Use key F2 (1) until correct rhythm position is
obtained.
The correction direction for the tramlining is adjustable in
the menu "tramlining" under "Machine Configuration".
See chapter Tramlining.
