System/Test
Control box
Quantron S
53


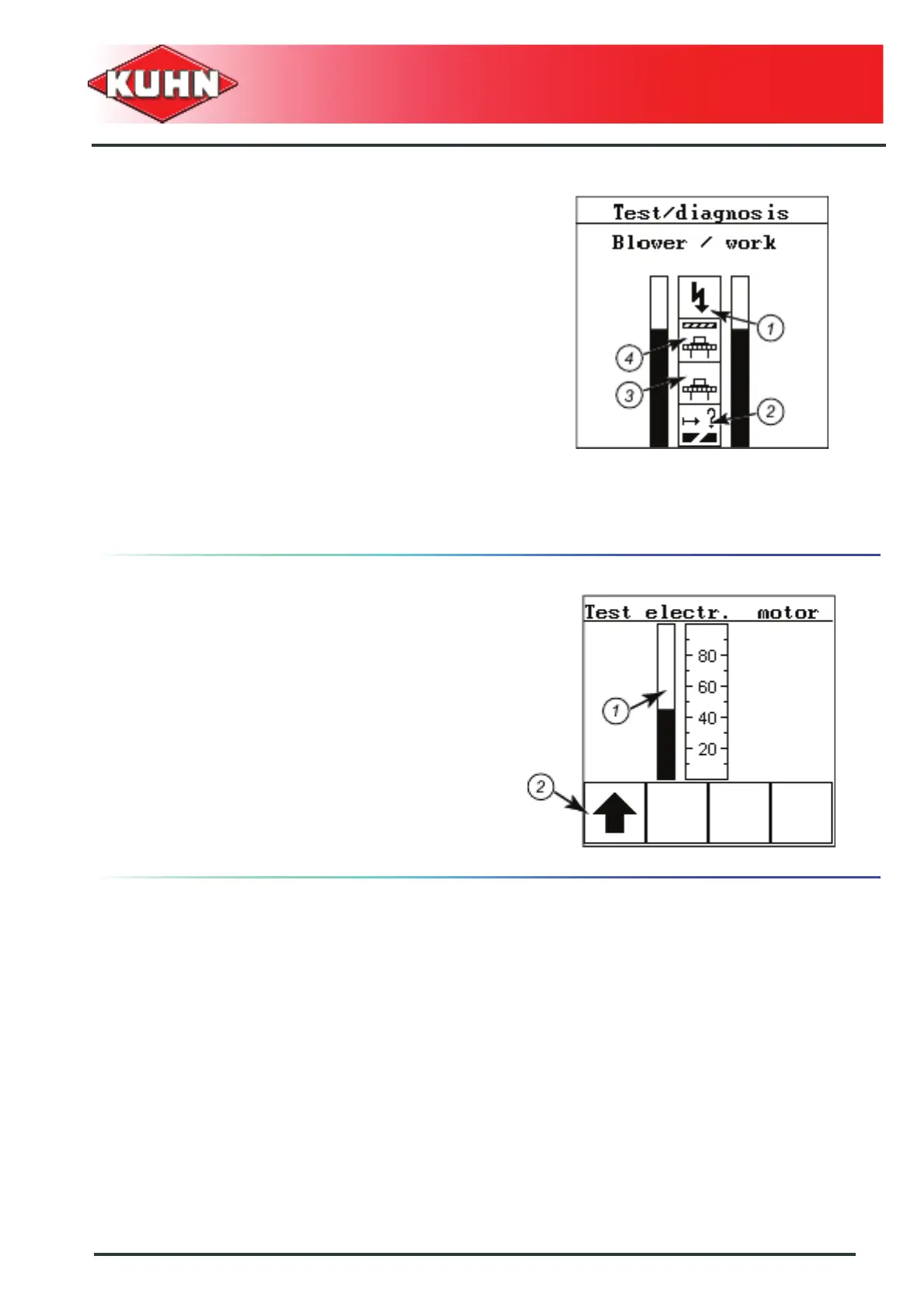

Example: Metering unit
 Example: Electric motor
- Press on the button F1 (2) and keep it pressed down.
When the electric motor rotates, the power supply is
represented by the black bar.
0
1 : Sensor short circuit (Function not switched on)
2 : Wire cut
3/4 :
Sensor function area
3 : Sensor is deactivated
4 : Sensor is activated
