Machine use
If the number of impulses is known, it can be entered
by hand.
- Select the "Machine km/h" submenu.
- select Imp/100m (2).
- Press Enter key.
- Enter the number of impulses. See chapter Entering
values using the arrow keys.
• Average value for VENTA NC 3000/4000 (Wheel
diameter 400 mm): 970 Imp/100 m
• Average value for MEGANT: 1000 Imp/100 m
• Average value for MODULINER and Radar:
900 Imp/100 m
• Average value for the front hopper; For machines
with serial number as from 11612:
13260 Imp/100 m
- Press Enter key.
If the number of impulses is unknown, proceed with
calibration.
- Select the "Machine km/h" submenu.
- Press on function F4 (Auto).

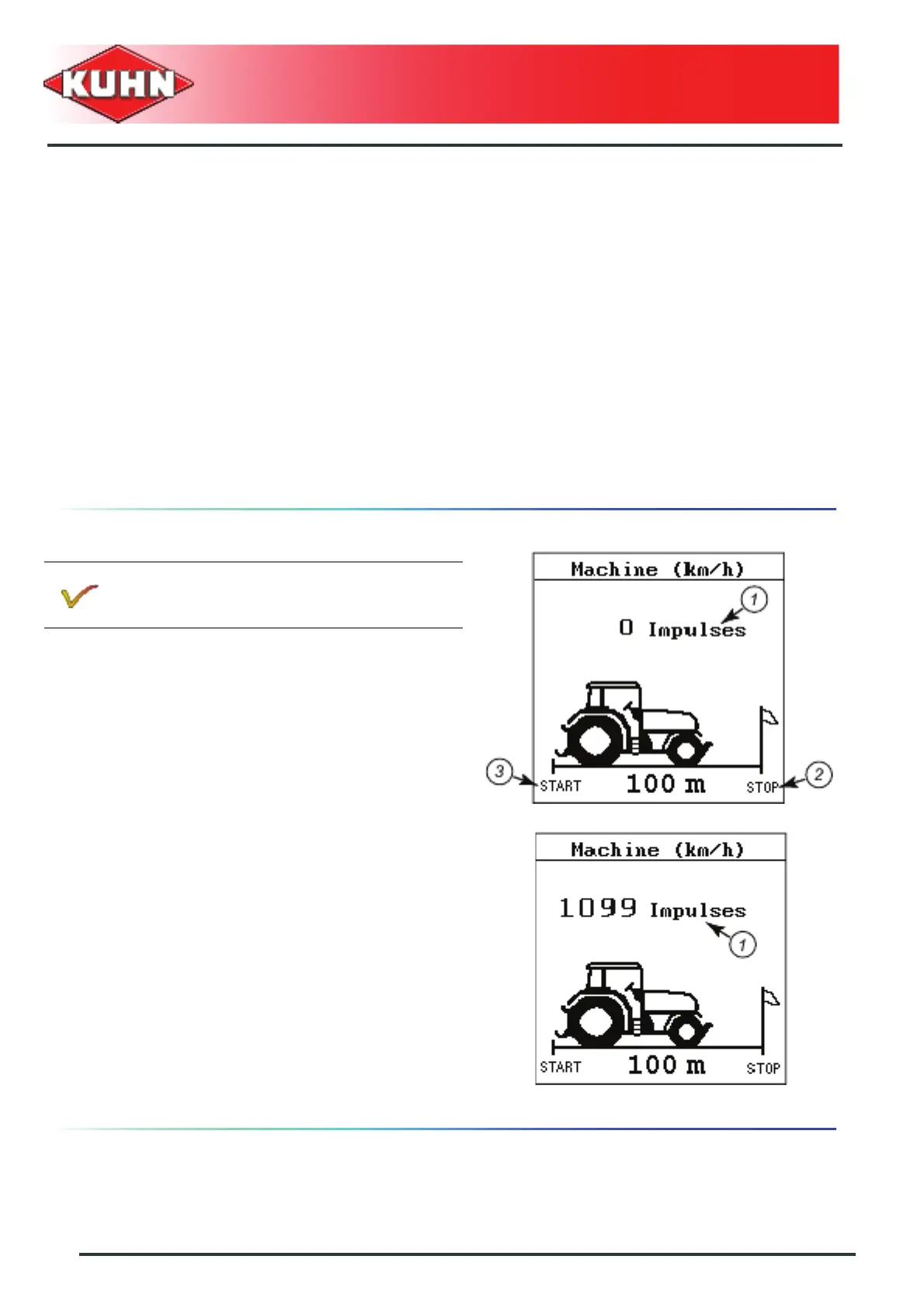

The calibration screen appears.
At the beginning of the reference trip:
- Press key F1 below START (3).
The counter is reset. The control box is ready to count
the impulses.
- Cover 100 m.
At the end of the reference trip:
- Stop moving forward with the tractor.
- Press key F4 below STOP (2).
The number of pulses is displayed on the screen (1).
- Press Enter key.
The new number of impulses is memorized. The screen
displays the previous menu.
The calibration must be carried out in the field.
Reference trip: 100 m
