Service: Machine configuration
Control box
Quantron S
57
Move downwards using the arrow key until page 2/2
appears.

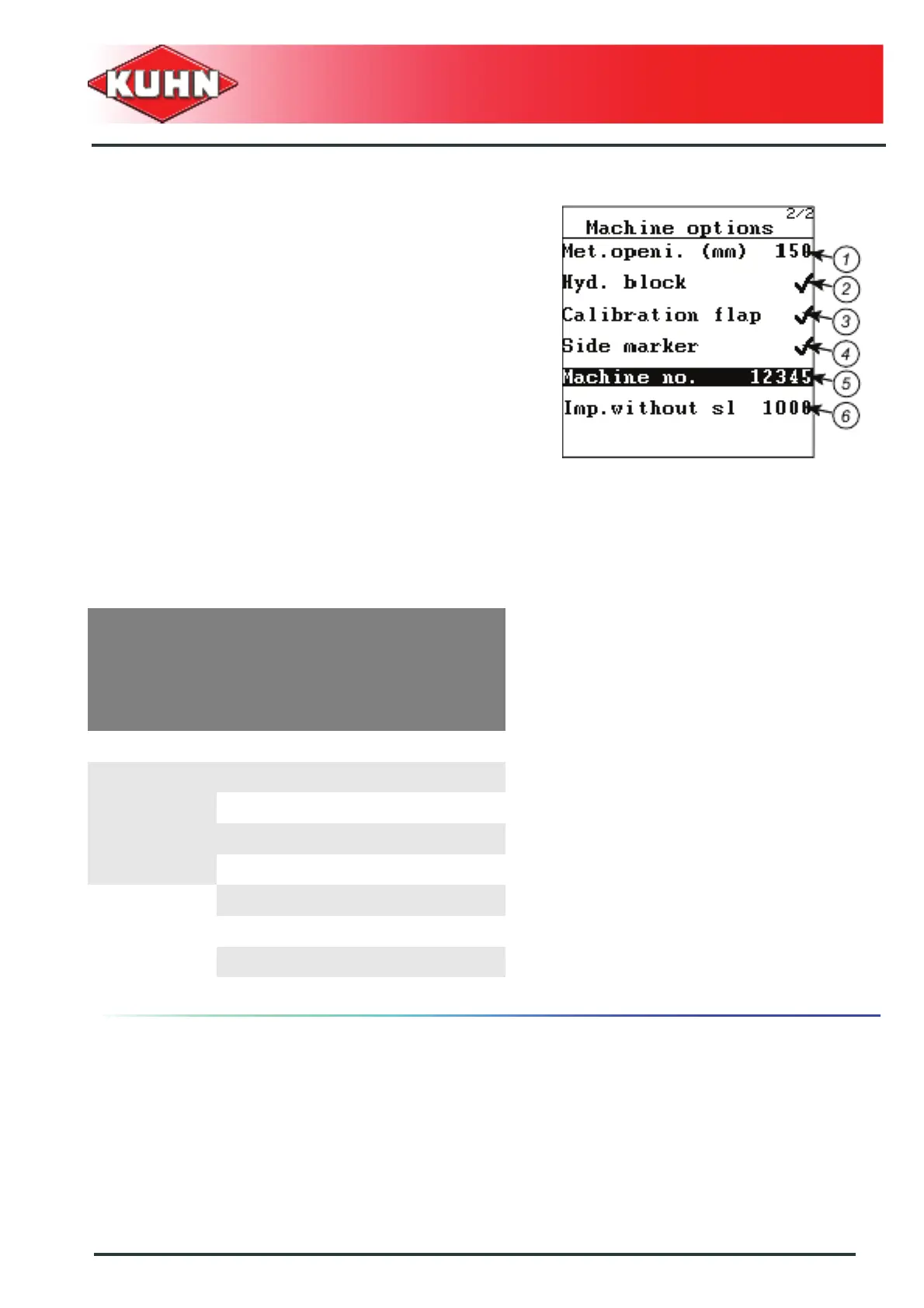

(1) Check width of mounted metering unit.
- There are 2 values possible: 150 mm or 200 mm.
- Press Enter button to select one of the 2 possible
values.
A check mark at the end of the line indicates that this
option is mounted.
(2): Hydraulic valve bank: The control box is connected
to the hydraulic valve bank.
(3): Metering unit hatch sensor
(4): Side marker sensors
(5): Enter the serial number of the machine connected to
the control box.
(6): Programming the theoretical number of pulses
(without slippage) of the metering unit sensor for a travel
of 100 m. This value is only used with seed drills fitted
with a mechanically driven metering unit
- Enter value depending on machine type:
Working
width (m)
Radar
impulse/100m
(Distribution
sensor)
VENTA EC
3750
VENTA LC
3 750
3,5 875
4 1000
4,5 1125
SPEED-
LINER
3 1290
41280
6 1290
To Next Page
