Option 3 - Connecting Three or More IRDs
(North American and Latin American Systems)
To connect three or four IRDs to the TracVision antenna, you will
need to install an active multiswitch (Channel Master model
6214IFD or equivalent) between the antenna and the IRDs. Two
RF cables should already be connected to the plugs labeled “RF1”
and “RF2” on the base of the TracVision antenna. Figure 2-17
shows a typical wiring arrangement for three or four IRDs.
Mount the multiswitch unit in accordance with the
manufacturer’s instruction sheet.
1. Connect the RF cable labeled "RF1" to the
multiswitch input labeled "LNB RHCP +13V.”
2. Connect the RF cable labeled “RF2” to the
multiswitch input labeled "LNB LHCP +18V.”
3. Connect the multiswitch outputs to individual IRD
inputs. Use RG-6 cable with F-type connectors for
all RF connections. Terminate all unused output
connectors with 75 ohm DC blocks (Channel
Master #7184, Radio Shack #15-1259 or equivalent).
Installation
54-0161
27

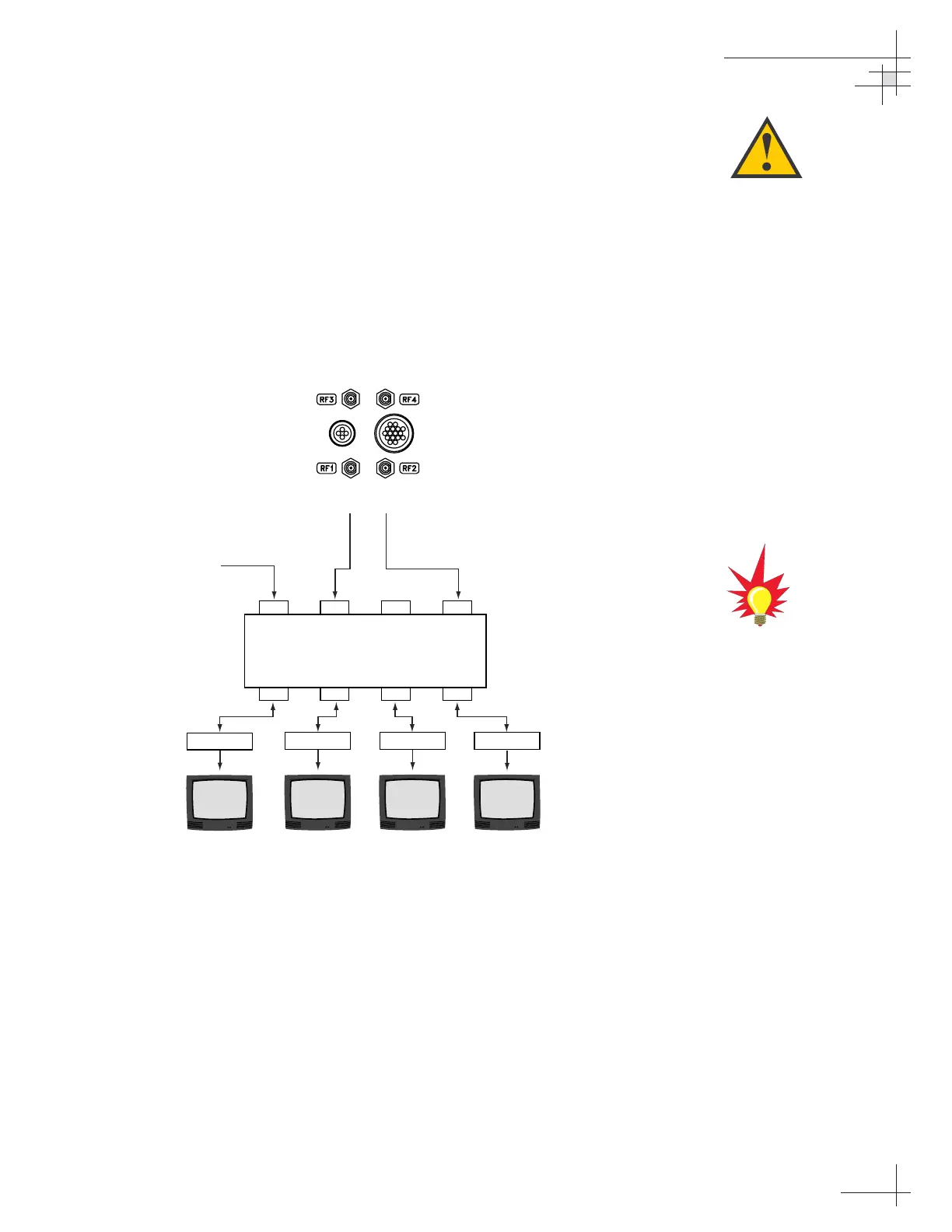

Figure 2-17
Single Multiswitch Installation
(North American and Latin
American systems only)
The use of an active multiswitch will
interfere with the 22 KHz tone sent
by DIRECTV DSS Plus
™
IRDs to
the antenna. As a result, the
antenna will not receive the signal
to change satellites when you
change channels using your
DIRECTV DSS Plus remote. You
will need to use the ADCU front
panel buttons to switch between
satellites.
Due to the signal polarization in
European satellites, the use of a
multiswitch with a dual-output LNB
will result in a loss of signal and
less than optimal operation with
TracVision G6 systems used in
Europe.
