2GM
1-6-30
Screws
Conncetor
Laser scanner unit
Conncetor
1
2
3
6. Remove three screws.
7. Remove two connectors from the laser
scanner unit.
8. Remove the laser scanner unit.
* When refitting the laser scanner unit, tighten
a screw in order of 3 from 1.

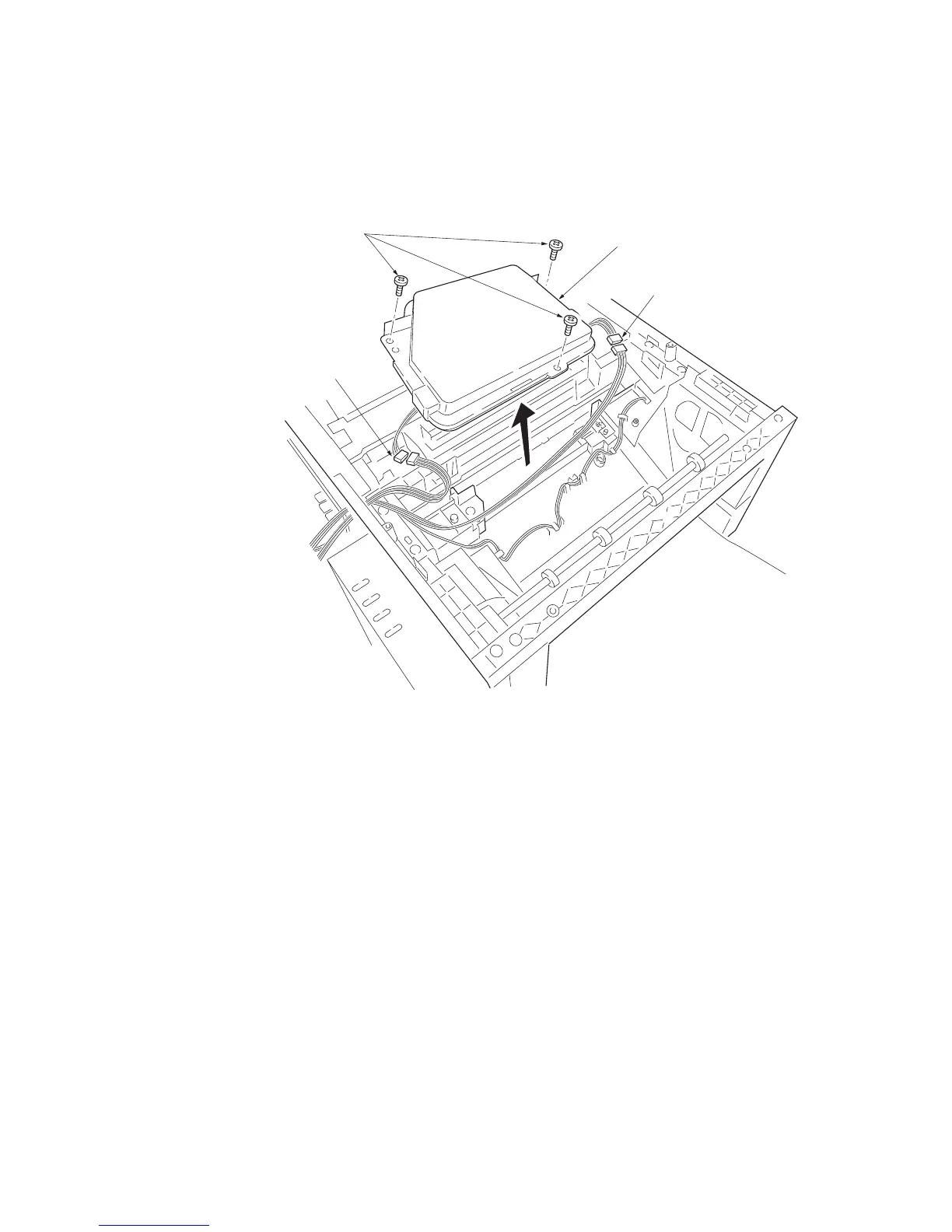

Figure 1-6-34 Removing the laser scanner unit
