L-Acoustics A10 - Page 74

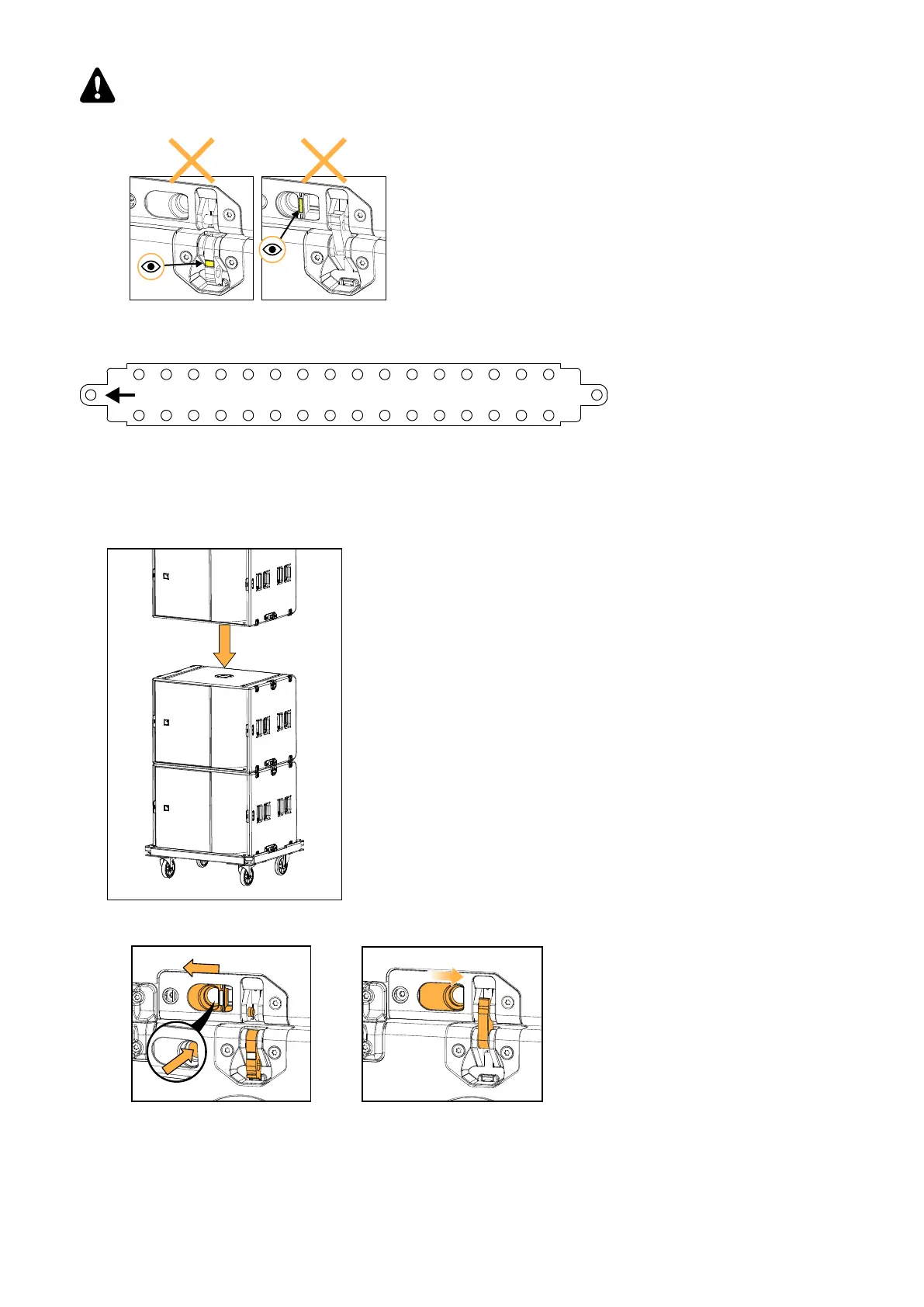

Rigging procedures
Final check
Visually check that no yellow labels are visible.
Manually check that all linking points are secured.
3. Select the pickup point and raise the array.
1 2
3
4
5
6 7 8 9 10
11 12
13
14
15 16
F
R
FRONT
1 2
3
4
5
6 7 8 9 10
11 12
13
14
15 16
4. Add additional enclosures under the array.
a) Lower the array onto a KS21 or a stack of KS21 on KS21-CHARIOT.
Align the runners and the tracks.
b) Connect the enclosures on both sides.
SHLAK!
c) Unlock the KS21-CHARIOT rigging arms.
74 A10 owner's manual (EN) version 1.1
