10.0 DIGITAL I/O OPTION
• Remove the two M3 screws and Nyloc nuts securing the blanking plate
• Fit the nut and washer supplied to the BNC ‘WORD CLOCK’ connector.

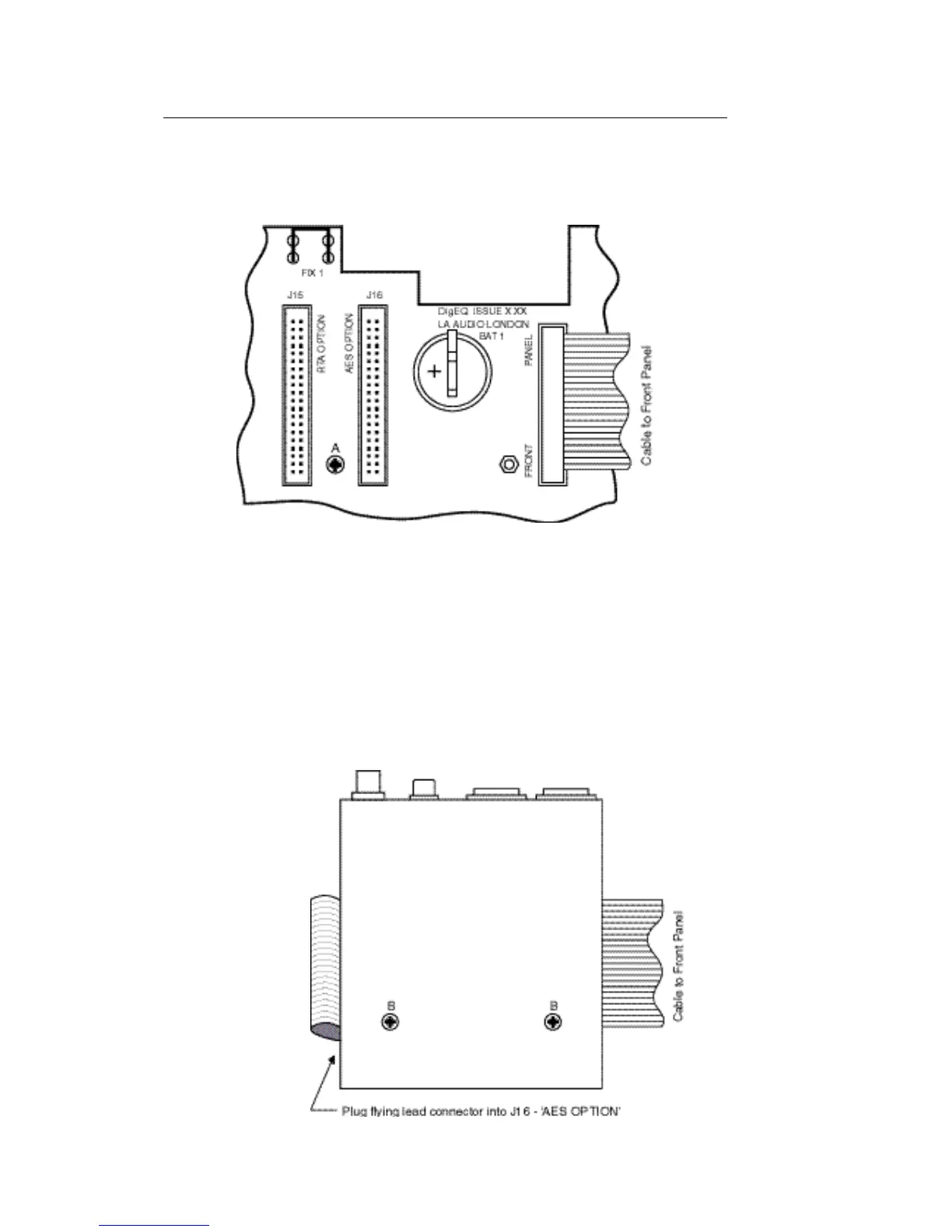

• Plug the flying lead connector into J16 'AES OPTION'
• With the component side of the Digital module facing down locate the connectors
through the rear panel of the DPF3103
