Laars FTCF140 - Page 89

The FT Series Floor Standing, Combination Boiler
Page 89
Description
Part
Number
Notes
58
Exhaust Pipe
FT1823
59
Exhaust sensor bracket
FT1529
60
Exhaust overheat sensor
FT1307
61
EX
-Adaptor FT1784
62
Exhaust pipe
packing (lower) FT1836
63
Heat Exchanger
Assembly FT1837

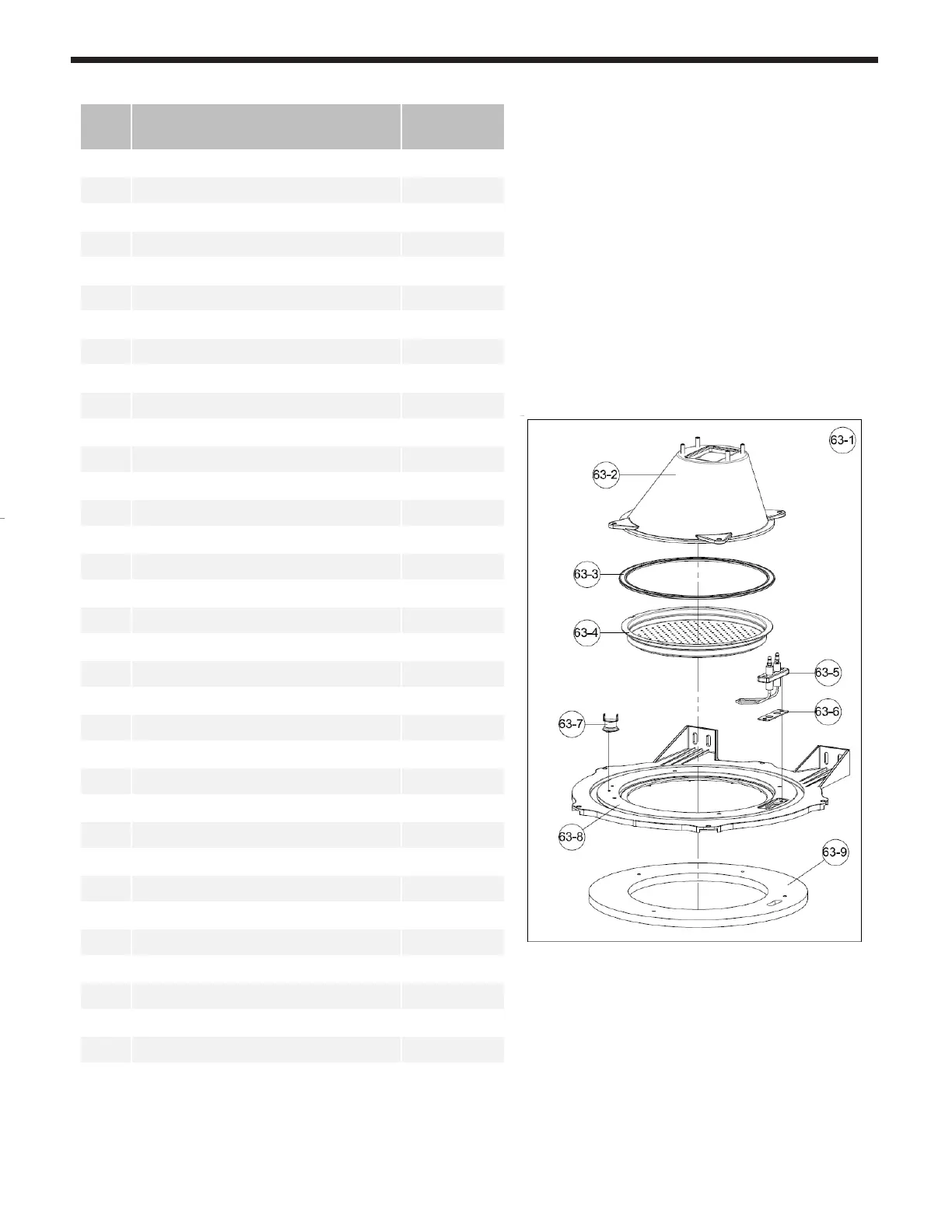

63-1
Burner
Assembly FT1796
63-2
Burner upper case
FT1760
63-3
Burner gasket
FT1824
63-4
Burner
FT1762
63-5
Ignition rod
FT1763
63-6
Ignition
rod Gasket
FT1316
63-7
Overheat sensor
FT1310
63-8
Burner
downside case FT1764
63-9
Refractory
FT1826
64
Flame detector sensor bracket
FT1669
65
Flame detector sensor
FT1327
66
Flame detector sensor cover
FT1069
67
Low level sensor
FT1325
68
Temperature sensor
FT1324
69
Pipe for internal circulation (upper)
FT1914
70
Pump
FT1767
71
Pipe for internal circulation (below)
FT1840
72
CH return pipe (below)
FT1841
73
CH outlet pipe (upper)
FT1842
74
CH outlet pipe (below)
FT1843
75
Clamp (
Ø34)
FT1677
76
Condensate trap hose
FT1844
77
Clamp (
Ø40)
FT1679
78
Condensate trap
Assembly
FT1328
79
Condensate
bracket FT1845
80
Condensate outlet hose
FT1681
81
Clamp (
Ø23)
FT1682
82
Condensate outlet fitting
FT1683
Heat Exchanger & Pump_ Feature&List
No. Description
Part
Number
Notes
O-16 O-Ring P16
FT1643
O-22 O-Ring P22
FT1644
P-6 1" Packing
FT1691
10 Flow Sensor Clip
FT1208
Heat Exchanger & Pump_ Feature&List
No. Description
Part
Number
Notes
O-16 O-Ring P16
FT1643
O-22 O-Ring P22
FT1644
P-6 1" Packing
FT1691
10 Flow Sensor Clip
FT1208
