Laars FTCF140 - Page 90

Page 90

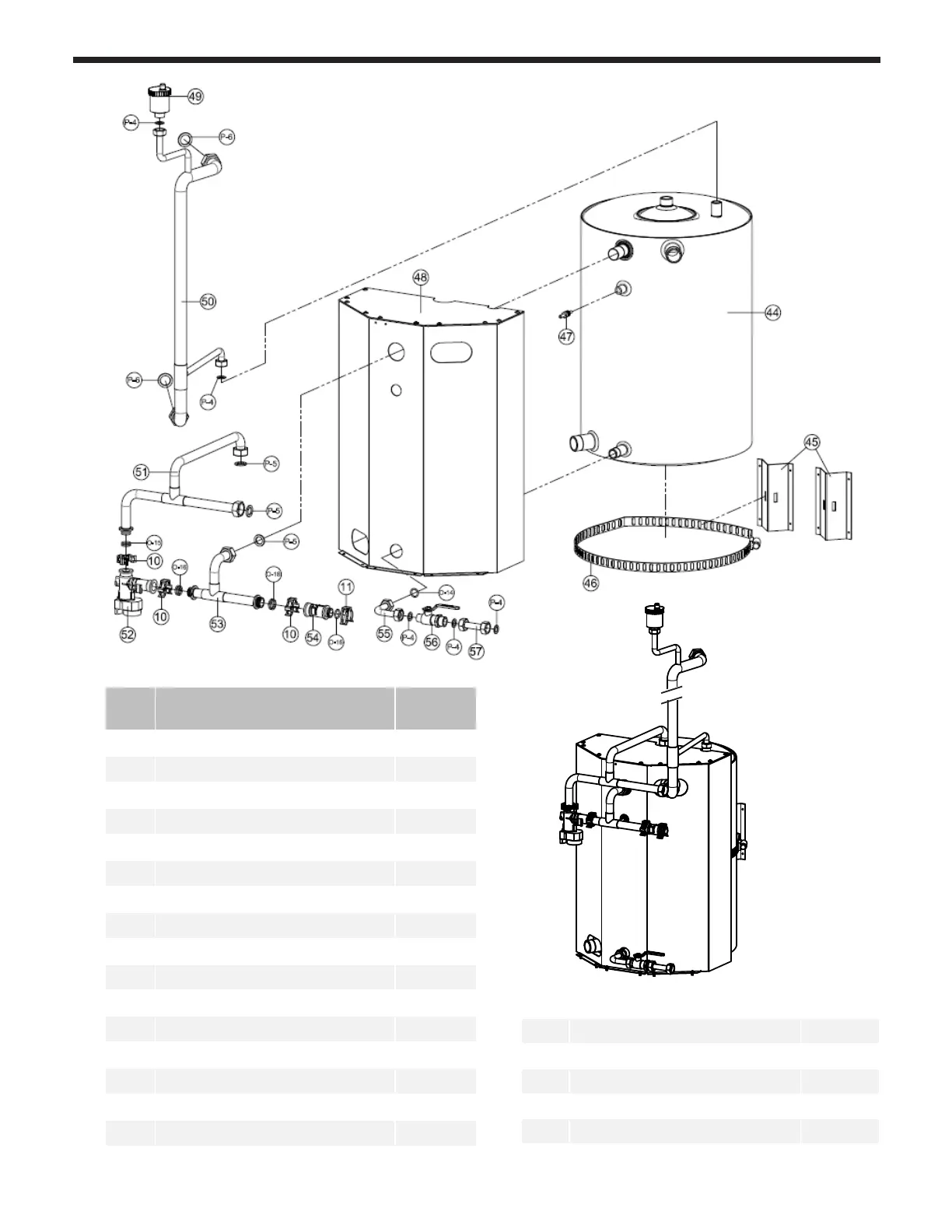

Domestic Hot Water
DHW Tank _ Feature
DHW Tank _ List
No. Description
Part
Number
Notes
O-15 O-Ring P15
FT1685
O-16 O-Ring P16
FT1643
O-18 O-Ring P18
FT1687
P-4 1/2" Packing
FT1645
P-5 3/4" Packing
FT1646
P-6 1" Packing
FT1691
10 Flow Sensor Clip
FT1208
11 Clip for Cold water inlet 1
FT1692
44 DHW Tank
FT1912
45 DHW Tank bracket
FT1696
46 Stainless band (Ø415)
FT1697
47 DHW Tank temperature sensor
FT1695
48 DHW Tank cover Assembly
FT1913
49 Air vent FT1321
50 DHW Tank outlet pipe
FT1833
51 DHW Outlet Pipe
FT1834
52 Mixing valve
FT1116
53 DHW Inlet pipe
FT1835
54 Flow sensor
FT1115
55 Elbow Pipe connector 1
FT1648
56 Drain valve
FT1708
57 Drain pipe connector 2
FT1709
DHW Tank _ List
No. Description
Part
Number
Notes
O-15 O-Ring P15
FT1685
O-16 O-Ring P16
FT1643
O-18 O-Ring P18
FT1687
P-4 1/2" Packing
FT1645
P-5 3/4" Packing
FT1646
P-6 1" Packing
FT1691
10 Flow Sensor Clip
FT1208
11 Clip for Cold water inlet 1
FT1692
44 DHW Tank
FT1912
45 DHW Tank bracket
FT1696
46 Stainless band (Ø415)
FT1697
47 DHW Tank temperature sensor
FT1695
48 DHW Tank cover Assembly
FT1913
49 Air vent FT1321
50 DHW Tank outlet pipe
FT1833
51 DHW Outlet Pipe
FT1834
52 Mixing valve
FT1116
53 DHW Inlet pipe
FT1835
54 Flow sensor
FT1115
55 Elbow Pipe connector 1
FT1648
56 Drain valve
FT1708
57 Drain pipe connector 2
FT1709
