Labconco Purifier Logic+ 30241 - Circuit Breaker

Product Service 1-800-522-7658
125
Circuit Breaker
Resetting a circuit breaker
To reset any of the circuit breakers located on the left side of the electronics
module, as shown in Figure 7-4, depress the white button until it sets.

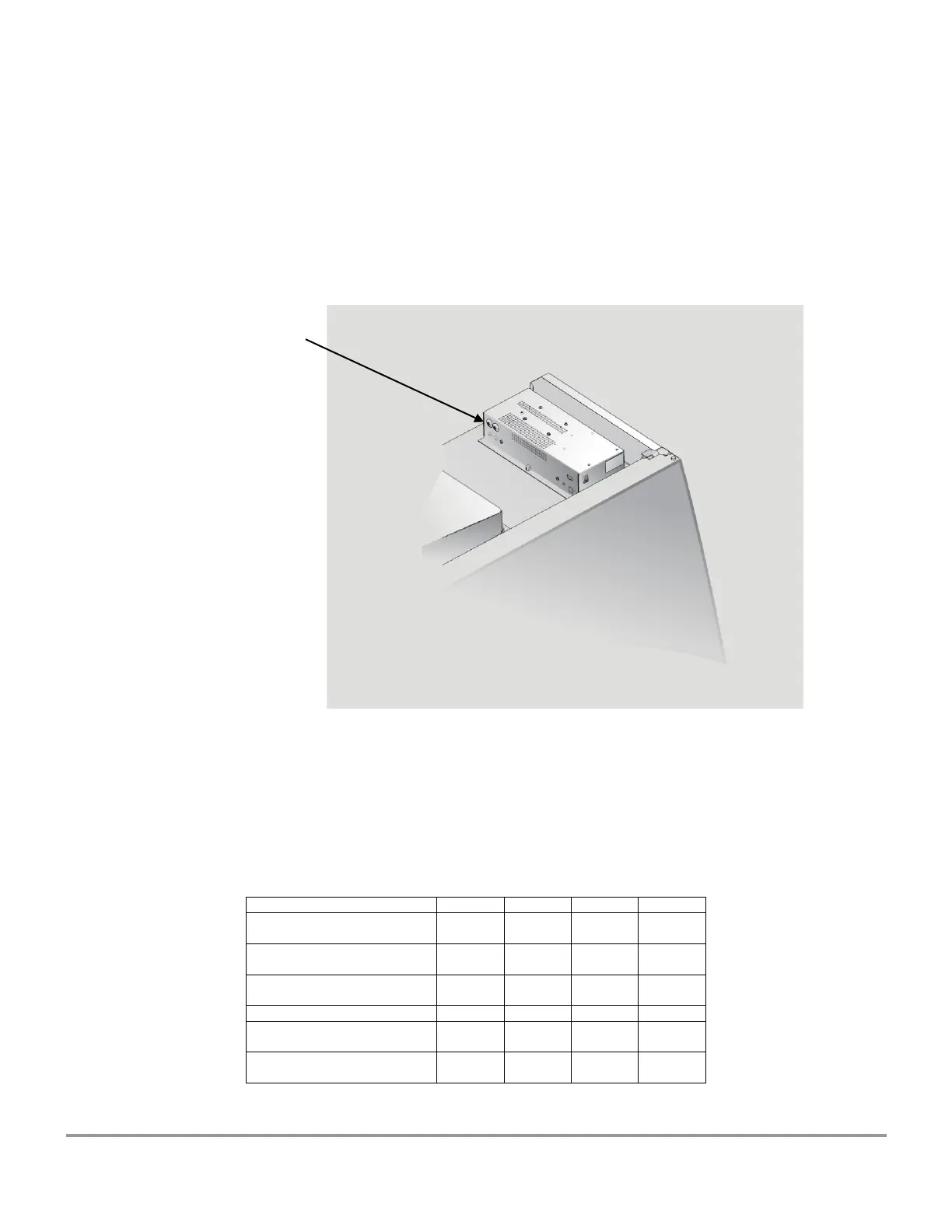

Figure 7-4
Circuit Breakers- The
front breaker protects
the electrical outlets,
the rear breaker
protects the motor
and lights.
Circuit Breaker Specifications
Circuit breaker specifications are shown in Table 7-2, below.
Table 7-2
Circuit Breaker Specifications, 100/115 VAC
Cabinet Width (feet)
3
4
5
6
Motor/Light Breaker Rating,
Amps
8
8
12
12
Motor/Light Breaker, Labconco
Part #
1327208
1327208
1327201
1327201
Motor/Light Breaker,
Mechanical Products Part #
1600-062-
080-007
1600-062-
080-007
1600-062-
120-007
1600-062-
120-007
Outlet Breaker Rating, Amps
5
5
5
5
Outlet Breaker, Labconco
Part #
1327204
1327204
1327204
1327204
Outlet Breaker, Mechanical
Products Part #
1600-062-
050-007
1600-062-
050-007
1600-062-
050-007
1600-062-
050-007
