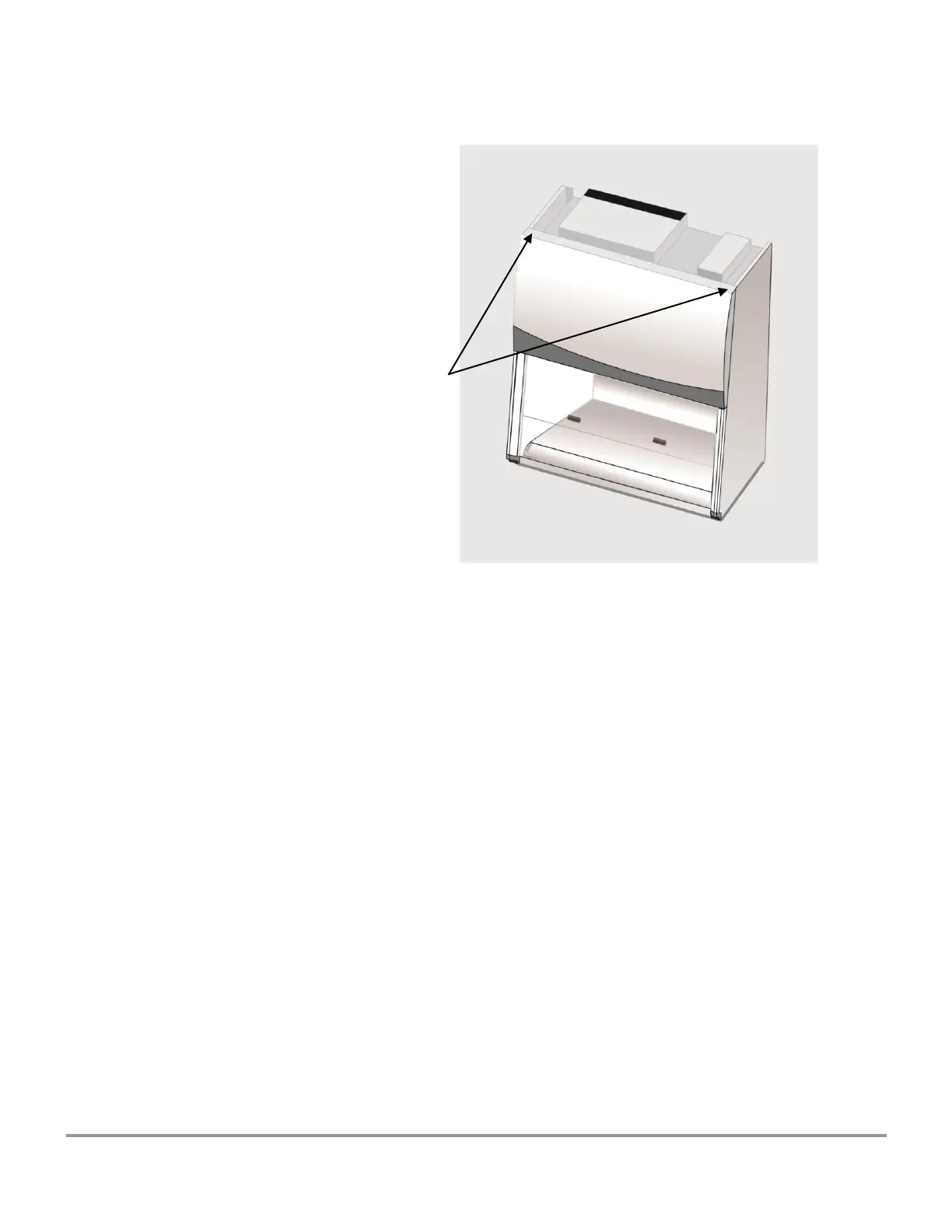

Figure 6-2
To reinstall the panel, reverse these
steps, ensuring that the plastic pin in
the top corners of the dress panel
properly engage the corner posts.
Side Panel Removal
Note: The side panel(s) must be taken off to remove the Logic+ from its
pallet.
1. Remove and save the two Phillips screws on the front edge of the side panel.
2. Pivot the front of the panel away from the cabinet. Lift the panel straight up and
pull the panel straight away from the cabinet to release the rear of the side panel
from its hinge.
Side Panel Installation
1. Install the side panel by inserting both back panel hooks into the side panel
slots.
2. Ensure both panel slots are completely seated on the hooks.
3. Pivot the front of the panel toward the cabinet. Secure the panel by installing
and tightening the two Phillips screws.
