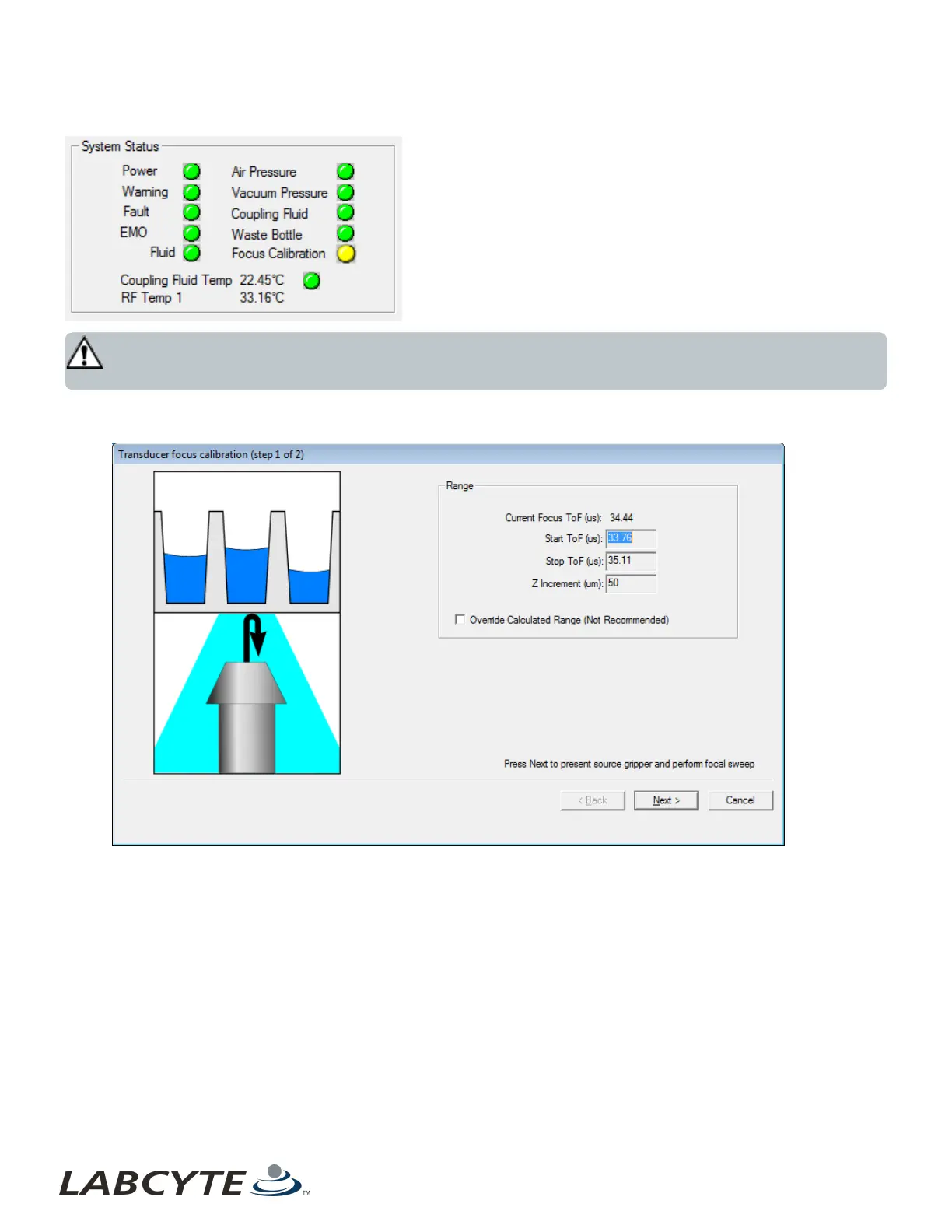

Figure 95: System Status section
Caution: When the Focus Calibration indicator is yellow, Labcyte strongly recommends that the user execute the Focus
calibration wizard as soon as possible.
1. In the Transducer Focus Calibration window, click the Focus button.
Figure 96: Transducer focus calibration step 1
2. Accept all of the default values and do not select the Override Calculated Range checkbox.
3. Click the Next button.
The Echo door opens, the source plate gripper stage extends, and the Echo Liquid Handler performs a focal-sweep on a
built-in internal registration plate. The focal-sweep uses acoustic “pings” bounced off an internal registration plate while
the transducer is being moved vertically. The focal-sweep process measures the transducer’s focal length. After the focal-
sweep is done, the bottom of the registration plate is dried.
