Back Panel
This topic provides a brief description of the components located on the back panel of the Echo 525 Liquid Handler.

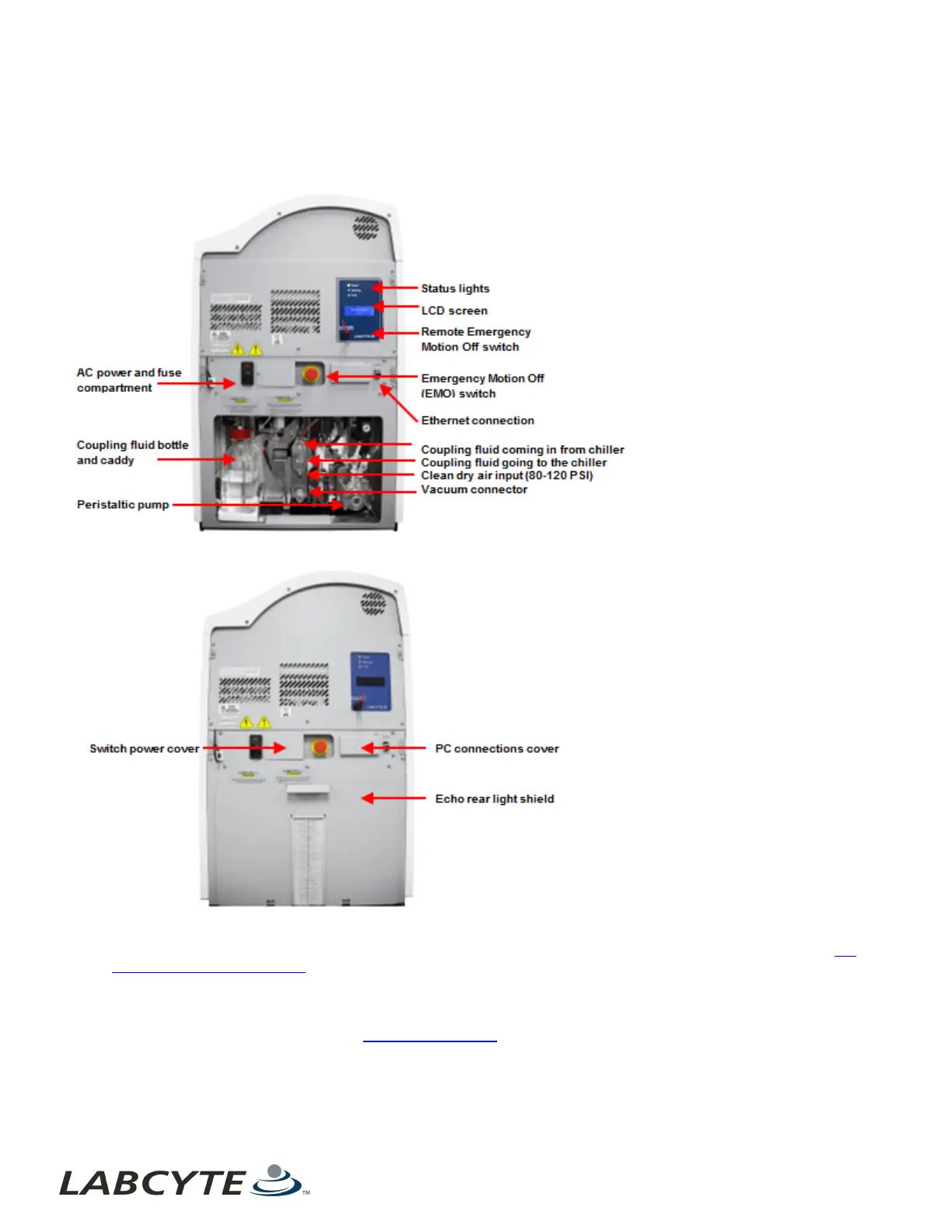

Figure 11: Echo 525 Liquid Handler back panel
l AC power and fuse compartment: The AC power and fuse compartment (also called the power input module) contains the
main Echo Liquid Handler power on/ off switch, AC power outlet, and fuse compartment. For more information, see AC
Power And Fuse Compartment.
l Coupling fluid bottle and caddy: The 1000 mL coupling fluid bottle provides the coupling fluid (Type 1 Ultrapure Water) that
is pumped through the acoustic transducer to maintain constant temperature and transfer acoustic energy to the well. The
coupling fluid bottle caddy contains a sensor that monitors the fluid level and issues a warning when the fluid level is less
than 250 mL. For more information, see Coupling Fluid Bottle.
l Status light indicators, LCD screen, and Emergency Motion Off (EMO): Same as the components on the front panel.
Remote EMO cable enables the customer to set up a remote EMO button more accessible to the operator.
System Overview CHAPTER 3 | General Description
28
