Coupling Fluid Bottle
The Echo system comes with a 1000 mL coupling fluid bottle.

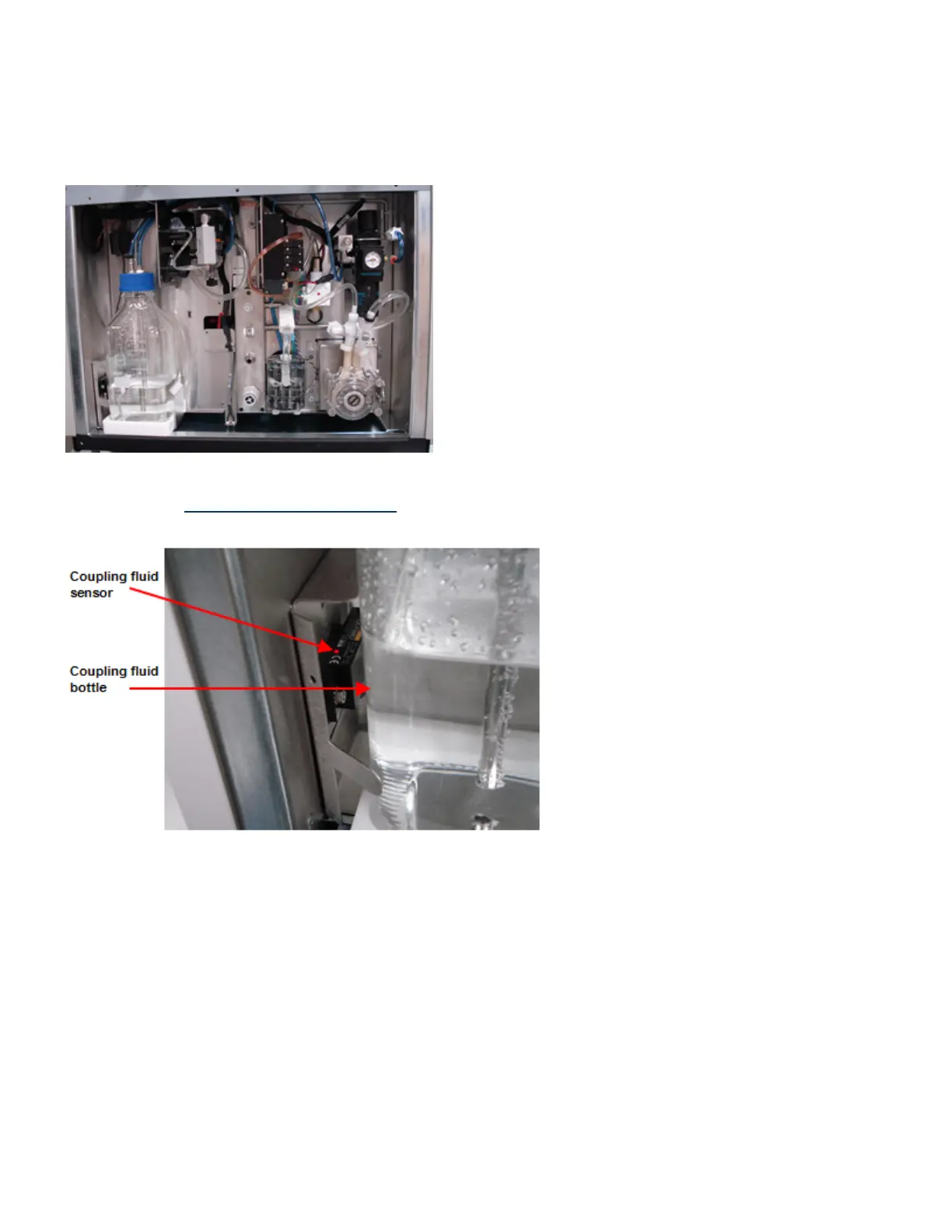

Figure 26: Coupling fluid bottle
The Echo Liquid Handler detects if the coupling fluid bottle falls below a specific level. If the sensor indicates that the fluid has
fallen below the minimum level, a low fluid volume alert warning is sent to the Echo server. For information on how to refill
coupling fluid, see Echo Coupling Fluid Maintenance.
Figure 27: Coupling fluid bottle and sensor connections
39 PN | 001-11665
USER GUIDE | Echo® 525 Liquid Handler User Guide Component Description
