Chiller
The SMC chiller (001-11149) is included with your Echo system. The SMC chiller utilizes a stainless steel thermoelectric (Peltier)
heat exchanger that circulates fluid temperature.
l The SMCchiller ships preconfigured for operation with Echo Liquid Handlers
l Weight: 14 kg (31 lbs)
l Dimensions:
l Width: 30 cm (11.8 in) plus fittings
l Depth: 34 cm (13.4 in)
l Height: 18 cm (36.4 in)
l The SMCchiller uses an autoswitching power supply capable of running any single phase AC voltage in the range
100-240V, 50-60 Hz
l A power cord suitable for the install location is provided
l Maximum power is 500W
l The SMCchiller controls the temperature to +/- 0.02 °C by cooling and heating as appropriate
l The SMCchiller is air cooled
l Ambient Operating Conditions
l Temperature: 10-35 °C
l Relative Humidity:35-80%
Note: The SMCchiller is not connected to the Echo EMO circuit. If the EMO is activated, the SMC chiller needs to
be turned off separately.
Note: It is recommended that the coupling fluid chiller be placed within 121.9 cm (48 in) of the Echo Liquid
Handler.
Chiller Configuration Part Number
SMCChiller
001-11149 SMC Chiller, 100-240V, 50-60Hz
001-11168 SMC Chiller Upgrade Kit (Must be purchased separately)
Table 4: SMCConfigurations Supported
A Labcyte service representative will set up the chiller with the Echo system. Refer to the following sections for safety information,
equipment setup (if the Echo system is relocated), operation, and troubleshooting.

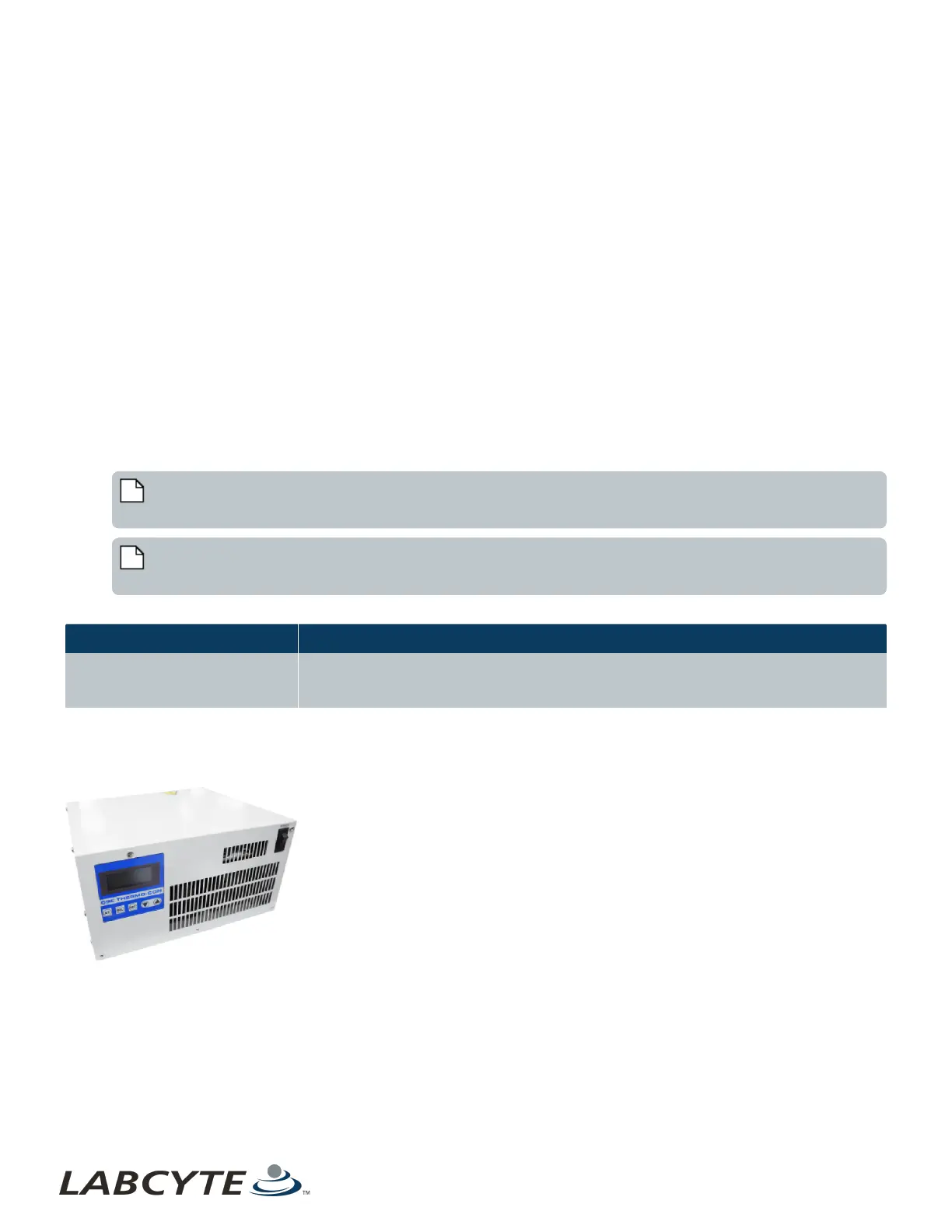

Figure 32: SMCchiller
Safety Warnings and Precautions
The SMC chiller has been designed for safe operation. Observe all safety warnings and precautions in this section during
installation, relocation, maintenance, and normal operation of a chiller.
