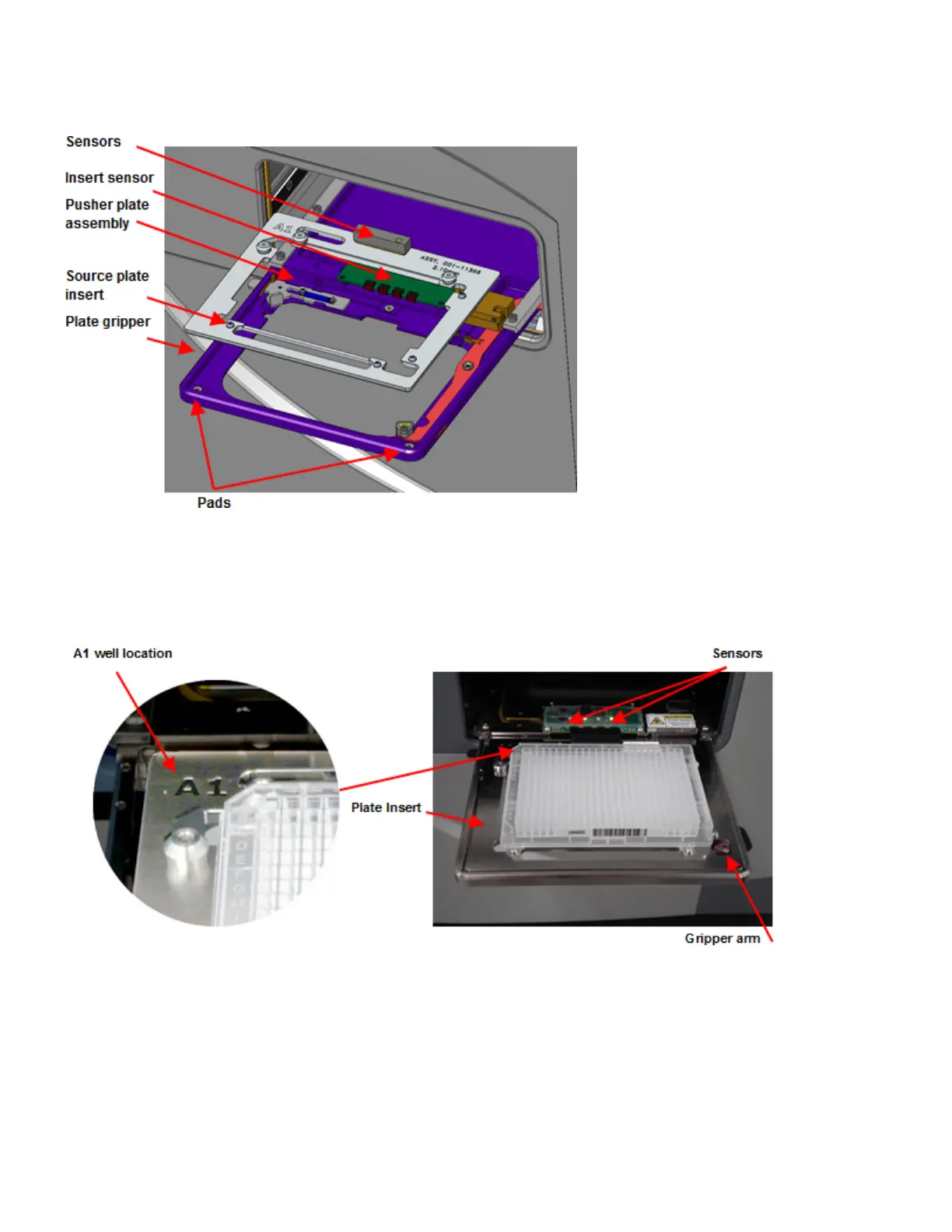

Figure 15: Source plate gripper stage (entire assembly)
The plate insert will be moved into the correct position by the gripper arm when the source plate gripper stage moves through the
door.
When you load a source microplate onto the plate insert, well A1 is located in the upper left corner (see figure below). As a
reminder, the upper left corner of the plate insert is labeled A1. The insert contains sensors that inform the Echo Liquid Handler
which plate is being used.
Figure 16: Plate insert and gripper arm securely hold the source microplate
31 PN | 001-11665
USER GUIDE | Echo® 525 Liquid Handler User Guide Component Description
