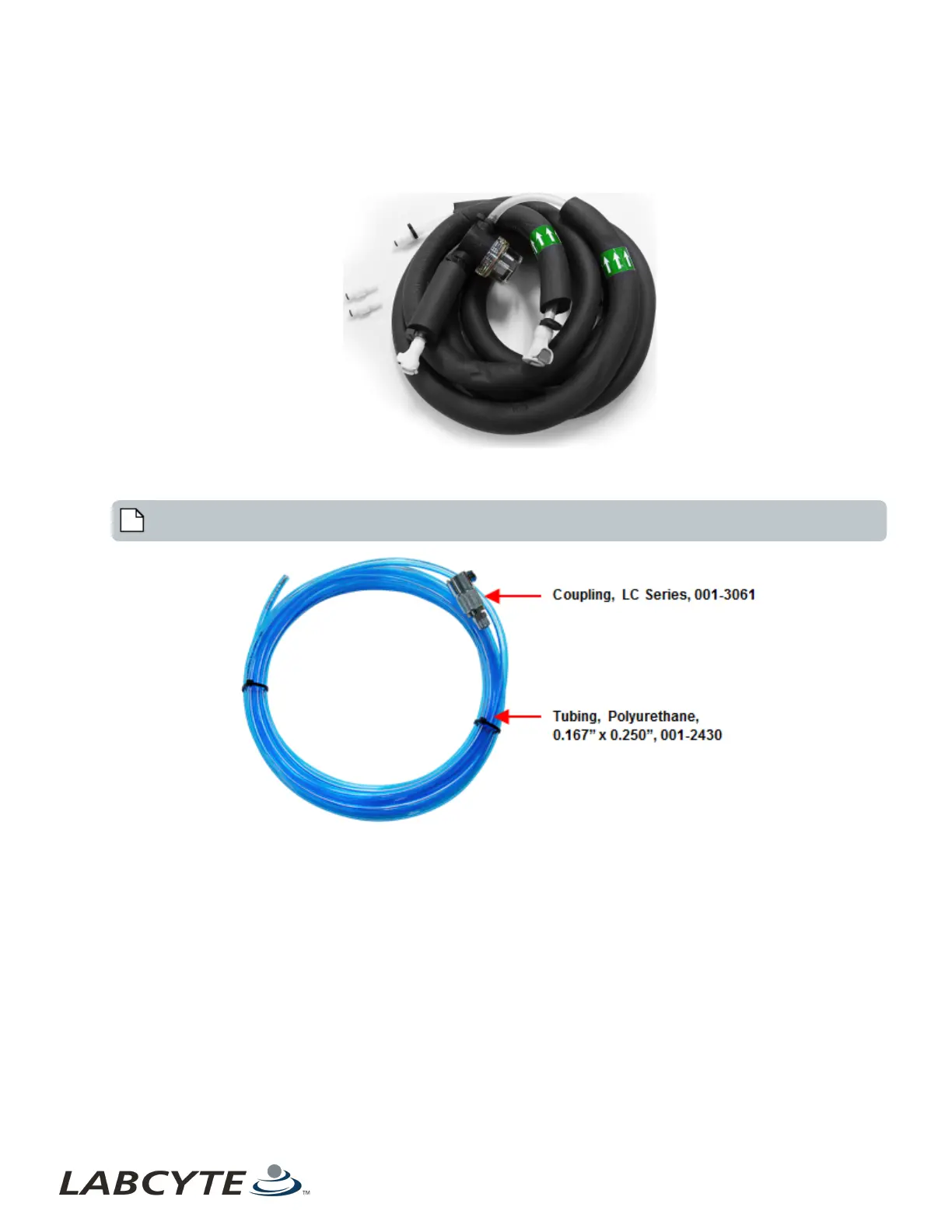

l Chiller tubing: The chiller tubing provides the coupling fluid circulation path between the Echo Liquid Handler and the
chiller. The chiller maintains the fluid temperature at 22°C.
The tubing is sufficiently long to allow the chiller to be placed on the floor below the Echo Liquid Handler (for reduced
vibration and good ventilation).
l Compressed air connector: The compressed air connector connects an external air supply to the Echo Liquid Handler and
the dryer.
Note: Use clean, dry air. Air pressure must be between 80 to 150 psi.
Component Description CHAPTER 3 | General Description
