Operating the AUTOMIZER
TM
HELPING-HAND 89

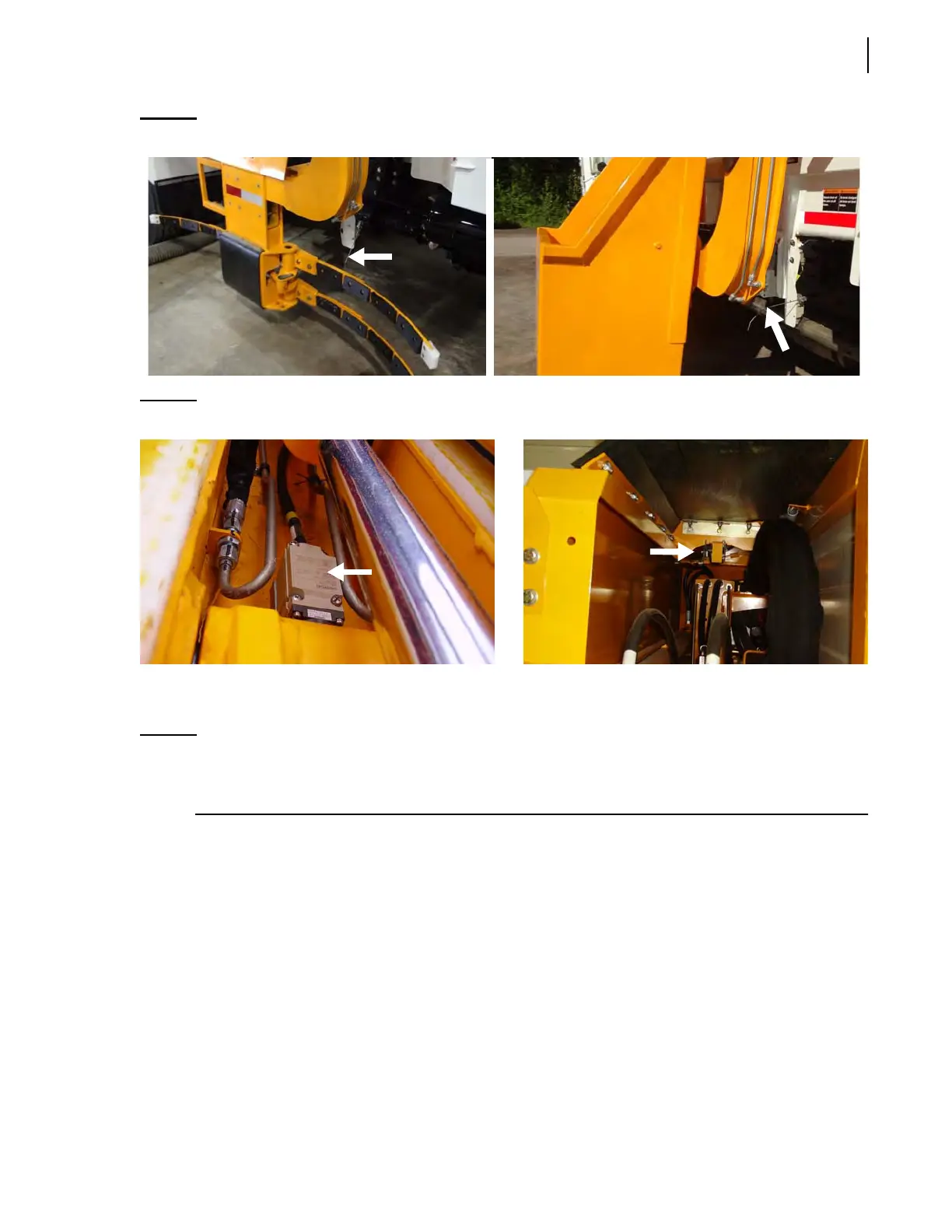

Figure 4-3
Gripper/bucket limit switch
Figure 4-4
Mid-height limit switch (left), parked limit switch (right)
Inspecting Right-Hand Side Driving Controls
NOTE: This section applies only to cabs modified by Labrie Enviroquip Group. If your cab has not
been modified by Labrie Enviroquip Group, please refer to your cab manufacturer’s
recommendations.
Enter the right-hand side cab extension and operate the corresponding driving controls. Report any
defective system to the maintenance personnel.
To inspect the right-hand side driving controls:
1. Turn the steering wheel to the left then to the right as you slowly move the vehicle forward.
2. Stop the vehicle by applying the foot brake.
3. Engage the parking brake and try to get the vehicle moving by throttling up with the right-hand
side accelerator pedal.
4. Throttle down to idle, step on the foot brake and disengage the parking brake.
5. Apply the temporary handbrake (if equipped) and try to get the vehicle moving by throttling up
with the right-hand side accelerator pedal.
6. Apply the parking brake.
