90 Operating the AUTOMIZER
TM
HELPING-HAND
You must follow the inspection sheet provided by your employer. If your employer does not have any,
ask his permission to use the inspection sheet on page 92.
Adjusting Mirrors
Every time you use the AUTOMIZER
TM
HELPING-HAND, you must adjust the mirrors to make sure that
you have all-around visibility from either driving position.
The following diagrams show the ideal mirror adjustments for both driving positions.

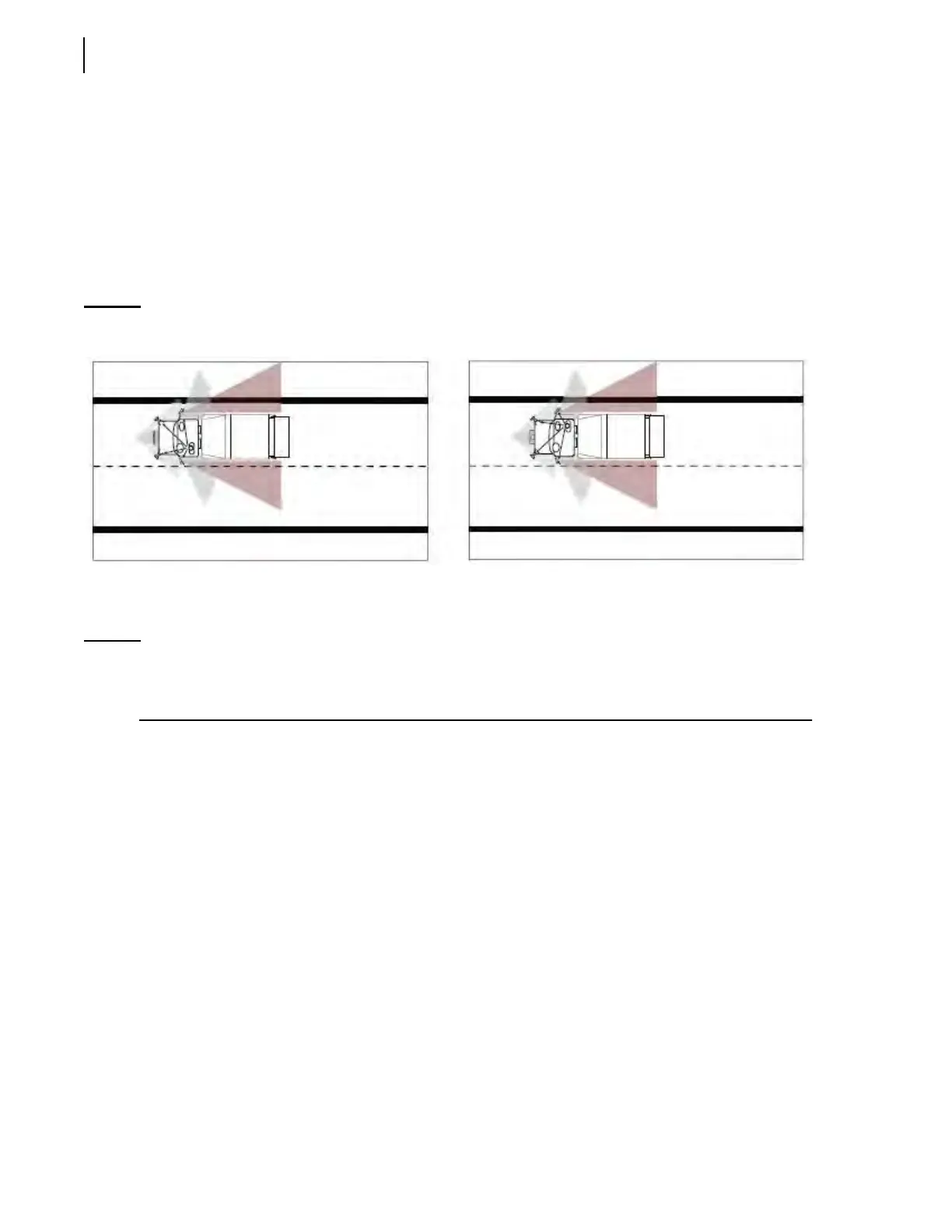

Figure 4-5
Mirror adjustment from left and right driving positions
Setting the Floor Riser
NOTE: This section applies only to cabs modified by Labrie Enviroquip Group. If your cab has not
been modified by Labrie Enviroquip Group, please refer to your cab manufacturer’s
recommendations.
In the A
UTOMIZER
TM
HELPING-HAND, the right-hand side driving position can be equipped with a
height-adjustable floor riser. This riser makes your stand-up driving more efficient by giving you a
better field of view, a more comfortable driving position, and a safer non-slippery surface to stand on.
Also, its grid pattern allows drainage of any type of mud or snow that can be stuck under your boots.
Labrie recommends the use of this aluminum platform in its horizontal position at all times when
driving from the right-hand side.
To set the floor riser:
1. With the floor riser in vertical position, release the latch and pull down the floor riser to its
horizontal position (see Figure 4-6).
