Start
Once the SimNewB manikin has been connected to the
SimNewB Control Unit, turn the Control Unit and Remote
Control on. The Control Unit will automatically detect the con-
nected manikin and set the parameters to the default values.
Information on battery insertion or change, system setup and
the Setup Menu for the Remote Control, see the Setup Guide
section (pages 4-10).

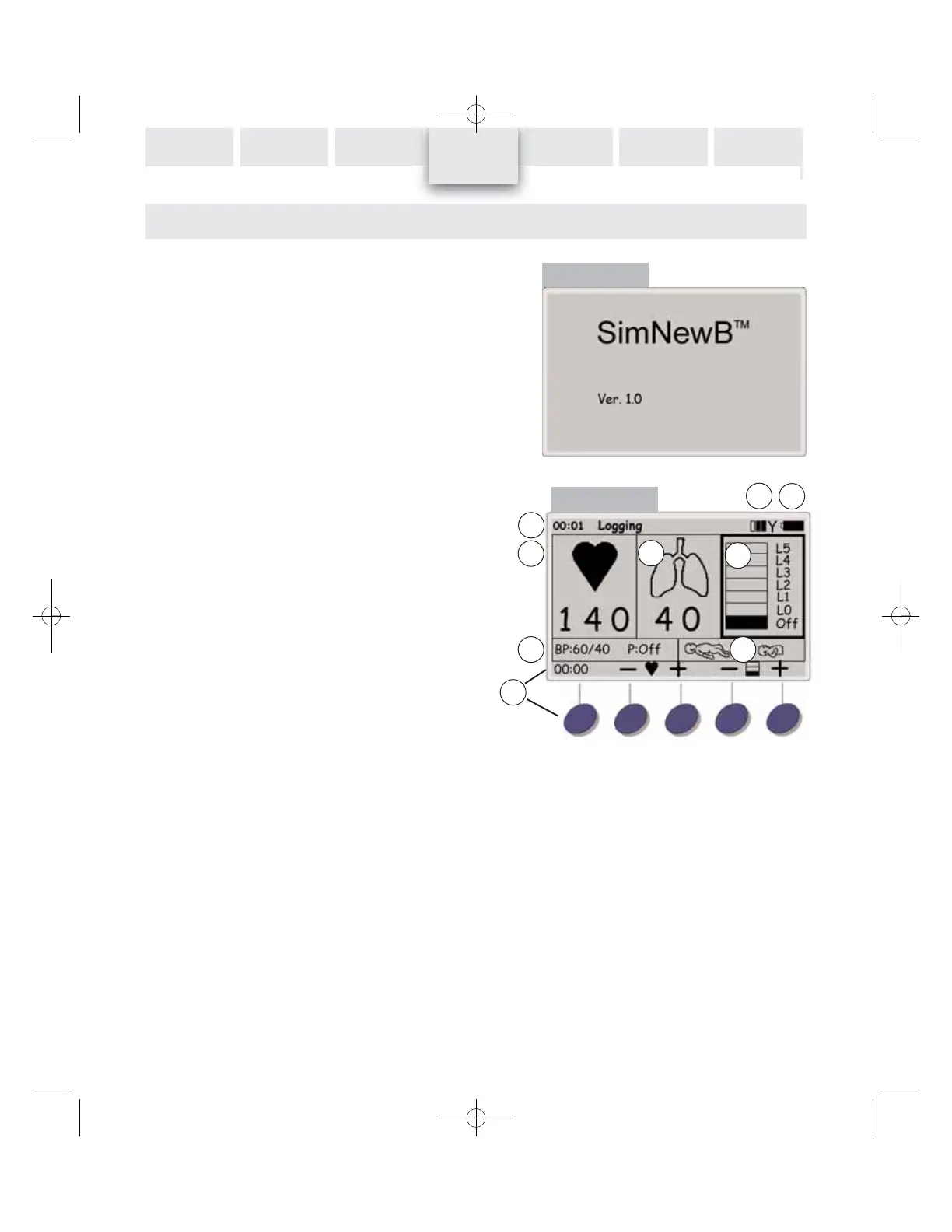

Main display elements
The main screen shows the current overall status of the mani-
kin, and allows for modification of parameters using the quick
execution keys.
The main display is divided into six functional areas and a Quick
Execution function line:
1. Log functional area shows the log clock, log status, and
if the log has been saved, the current log’s file name.
2. Radio reception indicator
3. Battery status indicator
4. Cardiac functional area shows the set heart rate.
5. Breathing functional area shows the set breathing rate, lung
closure state and if manikin CO
2
output is on.
6. Preset Patient State functional area.
(see chart page 12)
7. Blood Pressure (BP) functional area shows the set BP
and pulse on/off status.
8. Patient Motions functional area shows the manikin limb
motion and chest-rise settings.
9. Quick Execution functions/keys
The function of the keys will change with the
selected functional area.
1
7
4
6
8
5
9
Figure 2
REMOTE
CONTROL
Figure 1
3
2
Remote Control of the SimNewB™ manikin
