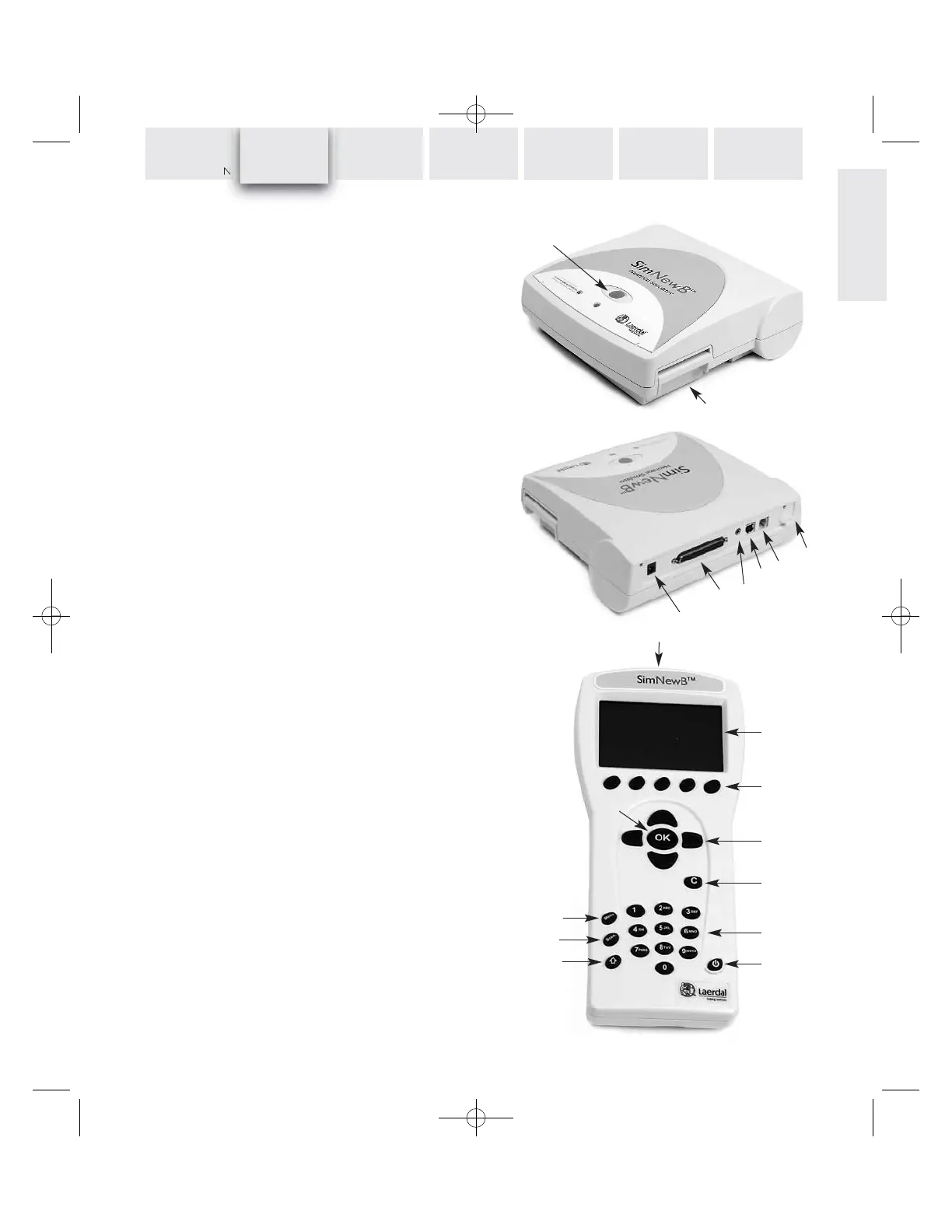

Overview of Control Unit
A On/Off button and Indicator light
Press once to turn the Control Unit on.
Press again to turn the Control Unit off.
The indicator light is steady green if the Control Unit has con-
tact with the Remote Control. If there is no contact with the
Remote Control the indicator will blink green.
If battery needs to be replaced, the indicator will blink,
alternating between green and red.
B DC power supply input: Used for stationary training and to
limit battery consumption.
C Manikin Connector: Connects the Control Unit to the manikin.
D Microphone input: External microphone attachment.
E USB port: For connection to PC.
F Remote Control connector: Used for direct connection
with the Remote Control. RF communication is disabled
when the units are connected via cable.
G Blood Pressure connector: Connects the clear pneumatic tube
from the manikin blood pressure connector.
H Battery case: Holds 6 replaceable C-cell batteries.
Overview of Remote Control
I LCD display: Displays status and operation information.
J Quick Execution keys: Function keys. The function of each
key is labeled on the display directly above the key.
K Navigation keys: Use keys to navigate and select functions
on the display.
L OK / Select key: Use this key to activate selected functions.
M Cancel / Back key: Go back from submenus without any
changes.
N Numerical keys: Use these keys to enter numerical data
or to select numbered parameters.
Can also be used as alphanumerical keys to enter file-
and event-names.
O Menu/Setup: Enter Setup Menu.
P Scenario: Use this key to start a scenario.
Q Shift key: Displays alternative quick execution functions.
R On/Off key: Press once to turn the Remote Control on.
Press again to turn the Remote Control off.
S Remote Control connector: Used for direct connection with
the Control Unit.
Use of the remote control with the SimNewB™ manikin is descri-
bed in detail in section “Remote Control”.
