Cardiac parameters
On the main display, use the navigation keys to select the
Cardiac functional area (Figure 9), which shows the current he-
art rate.
Heart Rate
Use the and quick execution keys to change the
heart rate in steps of 10, or enter the heart rate directly with
the numeric keys when the Cardiac functional area is selected.
The heart rate can be set between 0 and 300 beats per minu-
te. The heart rate is automatically rounded to the nearest avai-
lable rate.
Set Running Rhythm menu
When the Cardiac functional area is selected, press OK to open
the Set Running Rhythm menu (Figure 10). Use the left / right
navigation keys to select the desired functional area, and then
use the up / down navigation keys or the quick execution func-
tions to change settings of the parameters.
Running Rhythm:
Use the up / down navigation keys to choose rhythm. The ar-
row at the right of the selection field indicates that there are
more selections than presented on the screen. You can also en-
ter the numeric identifier directly with the numeric keys.
The heart rate, pulse (if active) and blood, heart sounds pressu-
re will be affected by your choice of heart rhythm.
The
Set PEA quick execution key sets PEA as the current he-
art state.
Reset PEA returns affected parameters to their origi-
nal values.
QRS: Types can be set to A through G (Figure 11). Use the up /
down navigation keys to select type. Press OK to activate selec-
tions.
Set Heart Sound
Pressing the -icon quick execution function opens the Set
Heart Sound menu (Figure 12). Pressing C (no change) or OK
(activate changes) returns you to the Set Running Rhythm menu.
Use the up / down navigation keys to select heart sound. The
arrow on the bottom right of the selection field indicates that
there are more selections than presented on the screen. You
can also enter the numeric identifier directly with the numeric
keys.
Use the and quick execution keys to change
the heart sound volume.
Press OK to activate selections.

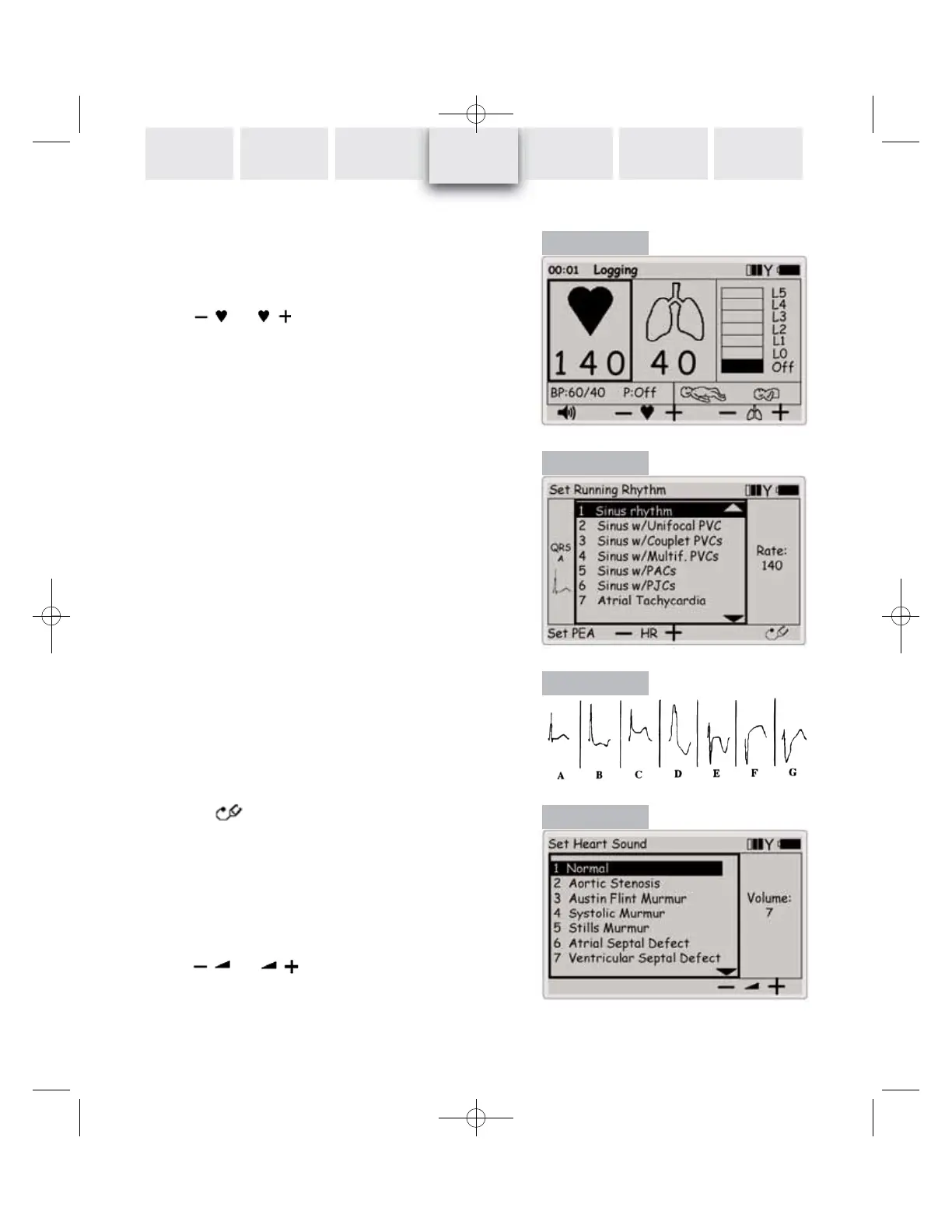

Figure 9
Figure 10
Figure 11
Figure 12
