QRS Types

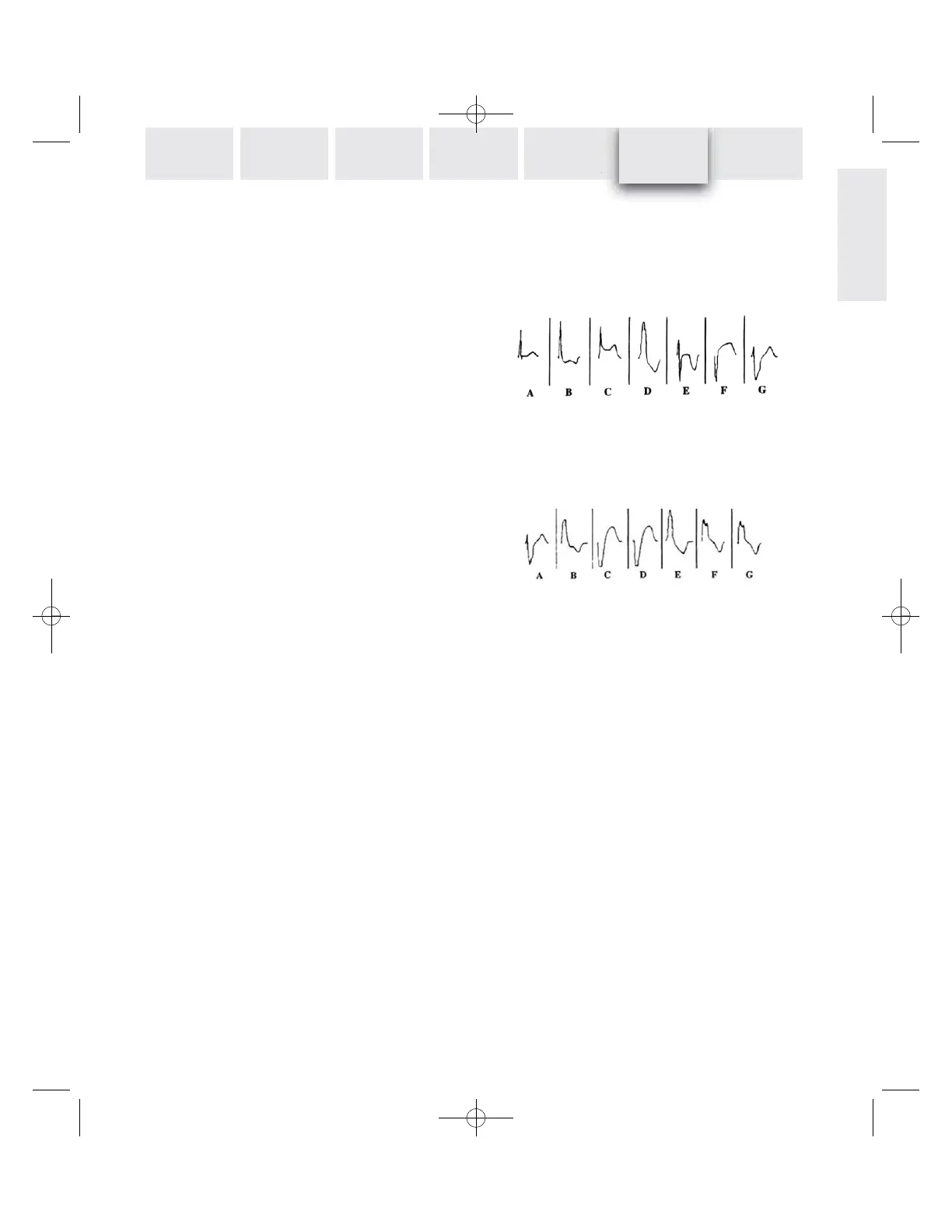

Seven different QRS waveforms named “A” to “G” can be selected. Available QRS types vary with each basic rhythm.
Supraventricular QRS types for: Sinus, A-tach, A-flutt, A-fib, Junctional, 1°AVB, 2°AVB types 1 and 2, 3°AVB (high rates),
PACs and PJCs.
A. Normal upright QRS-T.
B. Upright QRS with ST depression and T inversion.
C. Upright QRS with ST elevation.
D. BBB. Broad R-wave with T inversion.
E. Biphasic QRS with T inversion.
F. QS with ST elevation.
G. BBB. Broad S-wave with upright T.
Ventricular QRS types for: Idioventricular, V.Tach. and PVCs:
A. Broad rS wave.
B. Broad R wave.
C. Broad QS wave
D. Broad QS wave. Same as C.
E. Broad R wave.
F. Broad Rr Wave.
G. Broad Rr Wave. Same as F.
Heart sounds
Heart sounds are synchronized to ECG.
DETAIL
SPECIFICATIONS
Normal
Aortic Stenosis
Austin Flint Murmur
Systolic Murmur
Stills Murmur
Atrial Septal Defect (ASD)
Ventricular Septal Defect (VSD)
Pulmonary Stenosis
