4 Installation in an airplane
Please pay special attention to the installation and wiring of all components of the flaps
controller when installed in an airplane. This is important for the proper functioning of the
equipment and the safety of the airplane.
4.1 Mechanical installation

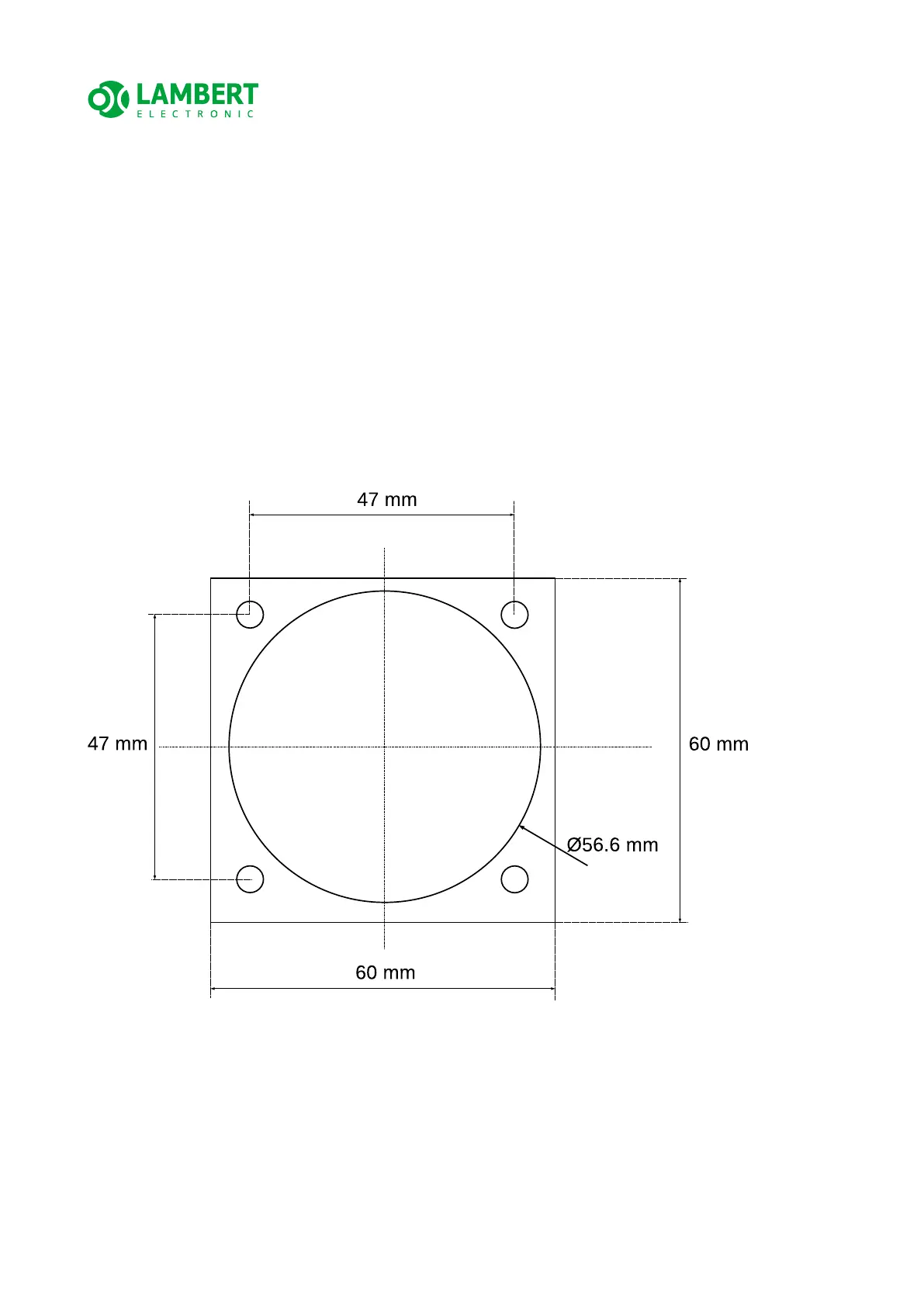

The sketch below shows the dimensions needed to fit the FLAPS V6 HBR control unit to
the airplane dashboard.
Mounting holes are provided with M3 thread and 4 mm thread depth.
