4.2 Position sensor mounting

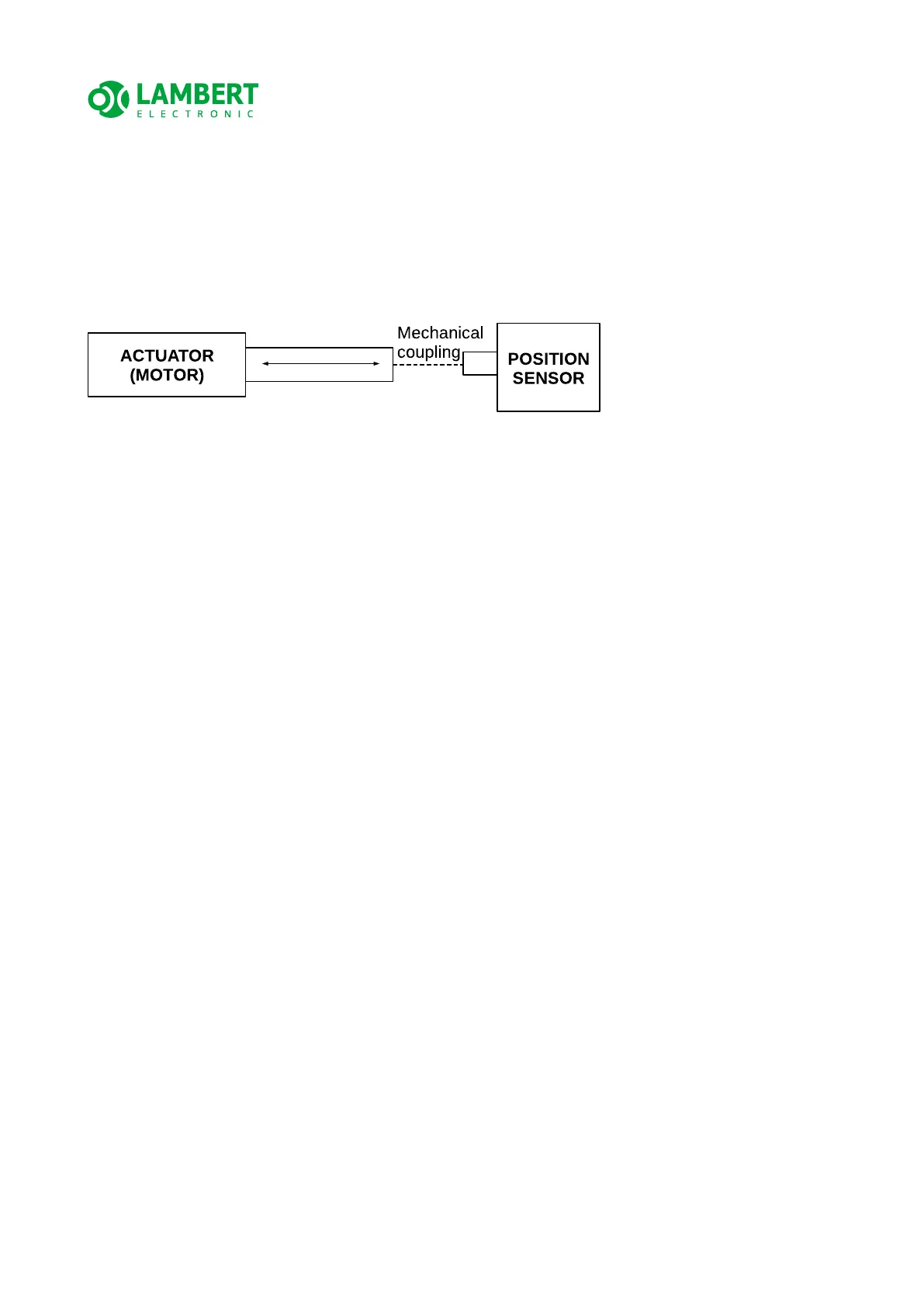

If an actuator without an integrated position sensor is used in the installation, it is
necessary to use an external position sensor that is rigidly mechanically attached to the
actuator rod so that the control unit has undistorted actuator position information.
ATTENTION! The position sensor shall be mechanically coupled so that when the piston
rod is fully extended or fully retracted, the position sensor is still within its valid travel
range and remains at least 5% to its edge. (For example, the Honeywell RTY050 rotary
sensor has a range from -25 ° to + 25 °, so use the range from -22.5 ° to + 22.5 °)
ATTENTION! Make sure that the position sensor is mounted correctly and that it is
reliably secured against self-releasing.
