4: Configuration Using the Web Manager
EDS4100 4 Port Device Server User Guide 70
HTTP Pages
Clicking the HTTP link in the menu bar displays the HTTP Statistics page. This page has
four links at the top for viewing statistics and for viewing and changing configuration,
authentication, and RSS settings.
HTTP Statistics Page
The HTTP Statistics page appears when you click HTTP in the menu bar. It also appears
when you click Statistics at the top of one of the other HTTP pages. This read-only page
shows various statistics about the Hyper Text Transfer Protocol (HTTP) server.
Note: The HTTP log is a scrolling log, with the last Max Log Entries cached and
viewable. To change the maximum number of entries that can be viewed, go to
the HTTP Configuration page (described on page 71).

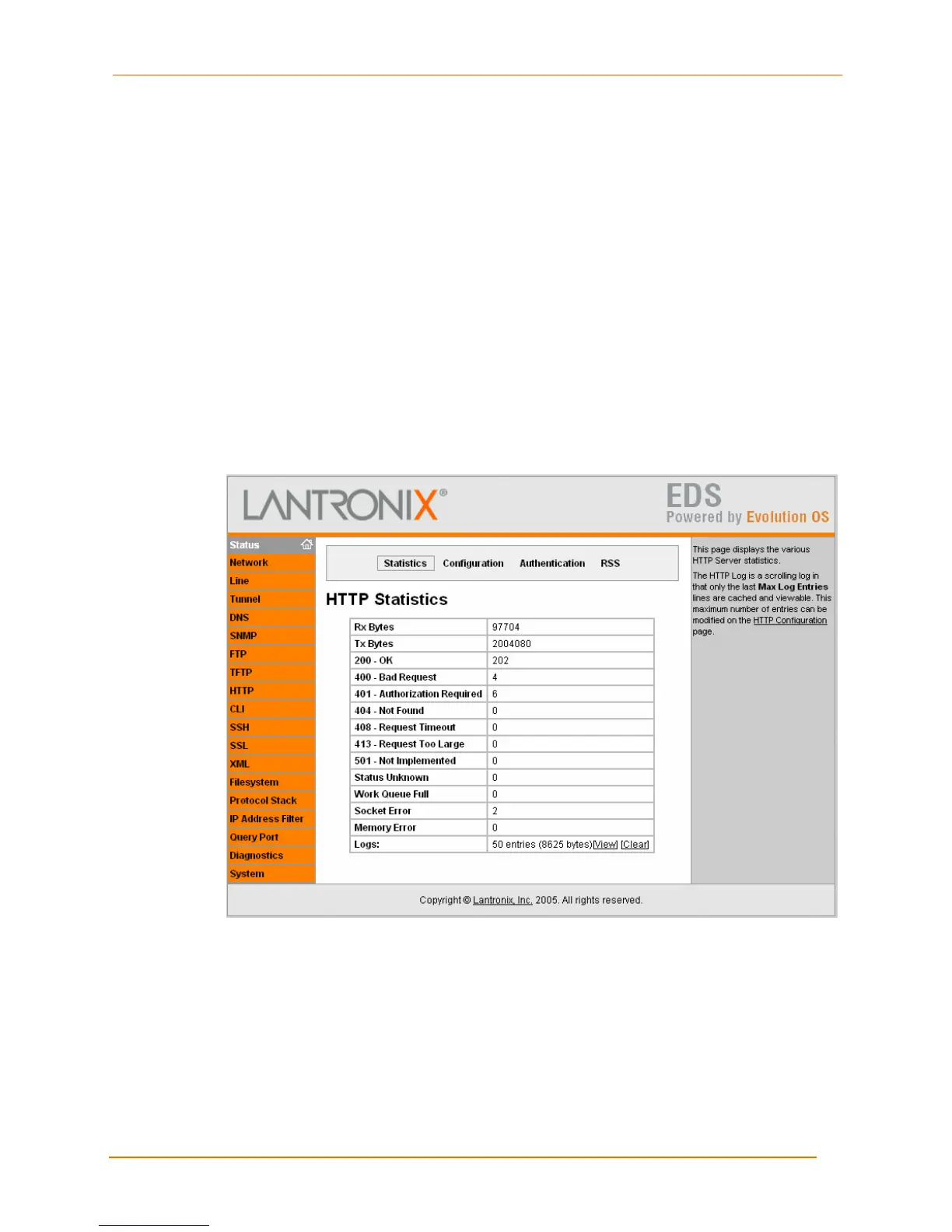

Figure 4-25. HTTP Statistics Page
