4: Configuration Using the Web Manager
EDS4100 4 Port Device Server User Guide 95
XML Status Record: Export System Status
If you click XML Status Record at the top of an XML page, the XML Status Record:
Export System Status page appears. This page lets you export the current system
configuration in XML format. The generated XML file can be imported at a later time to
restore a configuration. It can also be modified and imported to update the configuration
on this EDS4100 or another. The XML data can be exported to the browser window or to
a file on the filesystem.

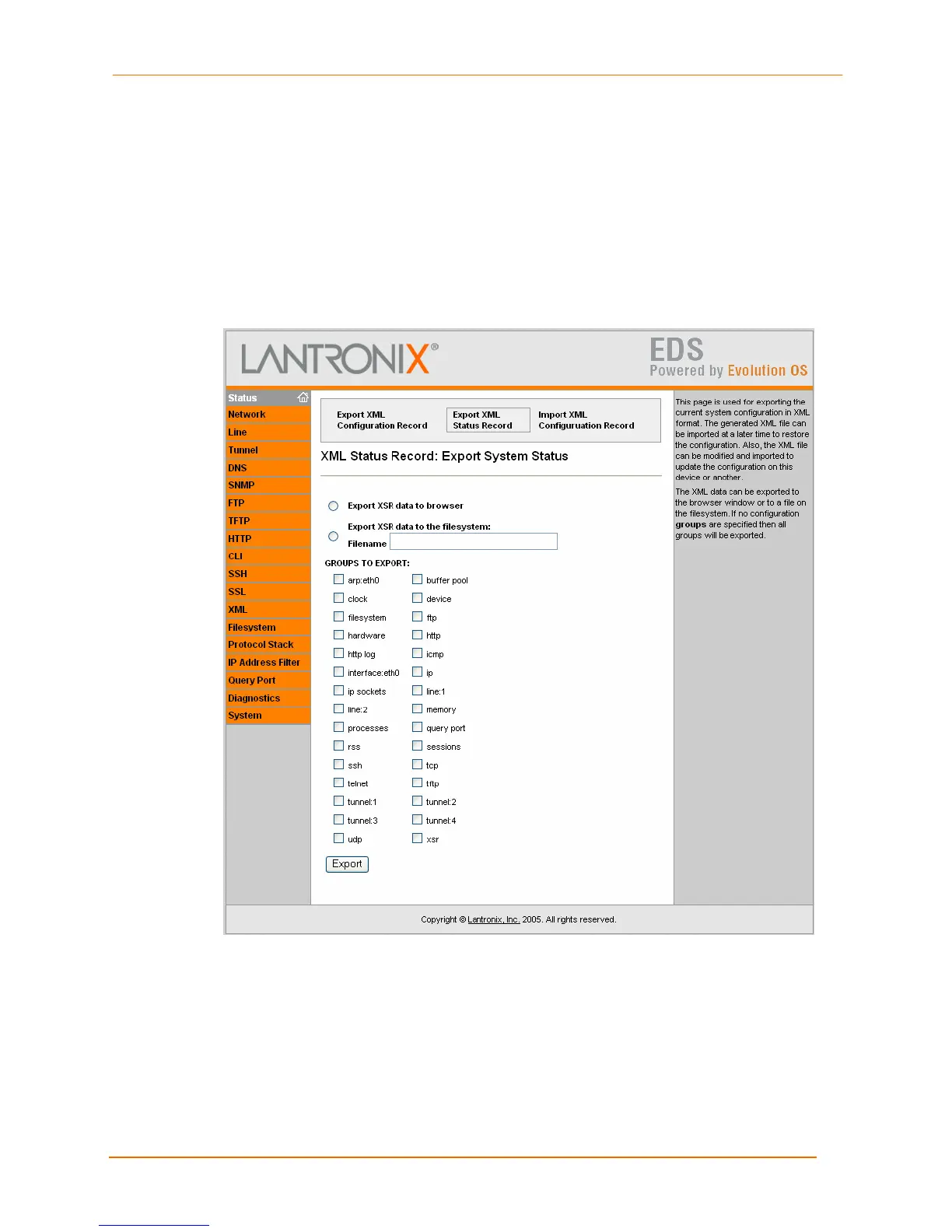

Figure 4-37. XML Status Record: Export System Status Page
