HVM200 Reference Manual Mechanical B-1
AppendixBAdaptor Resonance
& Frequency Response
B.1 Mechanical ........................................................................................................... B-1
B.1.1 ADP080A ................................................................................................ B-1
B.1.2 ADP081A ................................................................................................ B-2
B.1.3 ADP082A ................................................................................................ B-2
B.1.4 Measurements ........................................................................................ B-2
B.1.5 ADP080A + SEN041 ............................................................................... B-3
B.1.6 ADP081A + SEN041 ............................................................................... B-4
B.1.7 ADP082A + SEN041 ............................................................................... B-4
Experimental measurements indicate no resonances within the Wh frequency range for the adaptors
ADP080A, ADP081A and ADP082A.
B.1 Mechanical
B.1.1 ADP080A

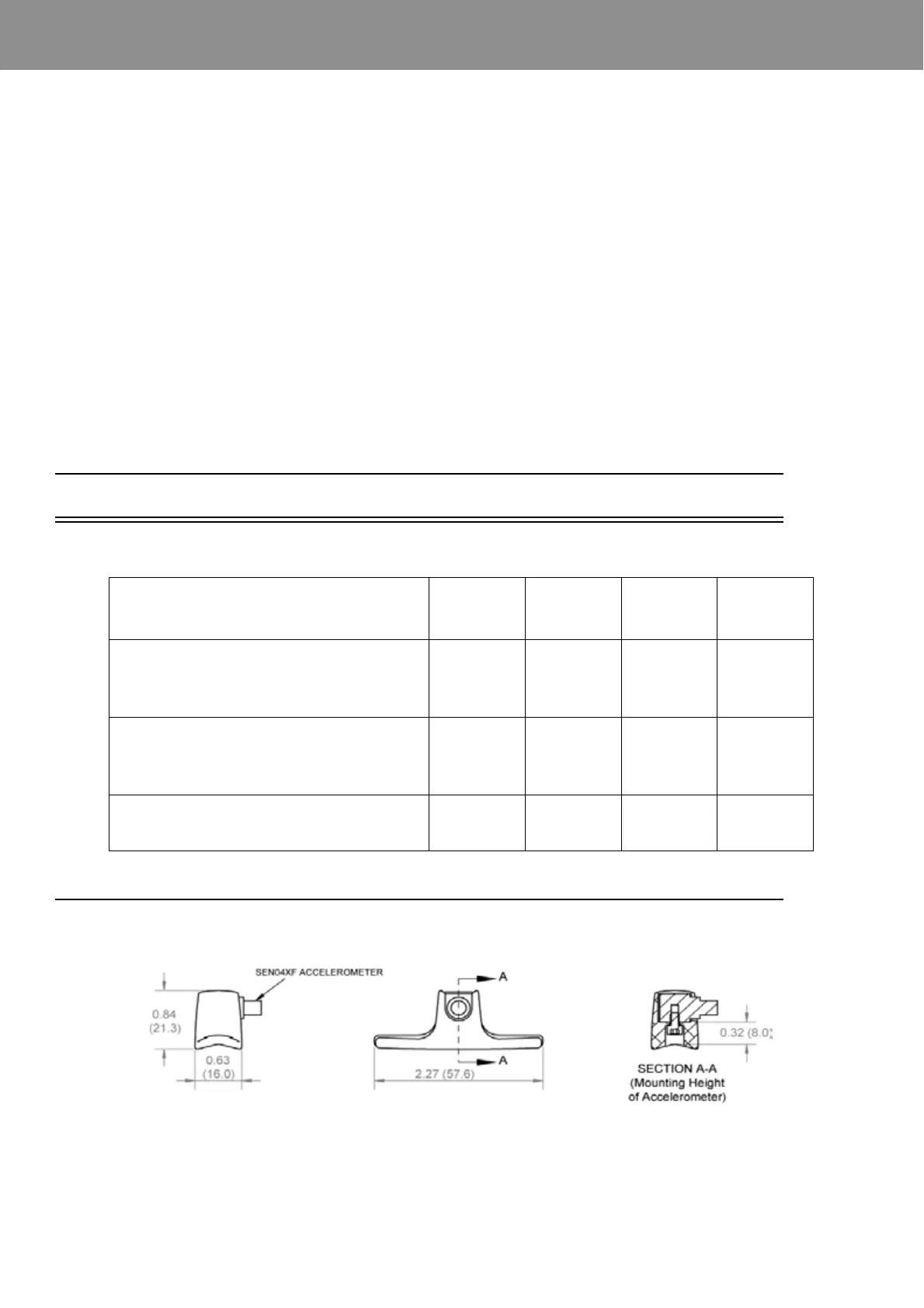

FIGURE B-1 (Hand Adapter with SEN04XF Accelerometer)
Specification Unit
ADP080
A
ADP081
A
ADP082
A
Total Mass of Vibration Sensor &
Mounting System (including sensor,
adapter, & mounting screw)
ounces
(grams)
0.67 (19) 0.74 (21) 0.35 (10)
Mounting Height of Vibration Sensor
(distance between sensor and mounting
surface)
inches
(mm)
0.32 (8.0) 0.18 (4.6) 0.32 (8.1)
Adapter dimensions inches
(mm)
Shown
Below
Shown
Below
Shown
Below
