HVM200 Reference Manual Mechanical B-2
B.1.2 ADP081A

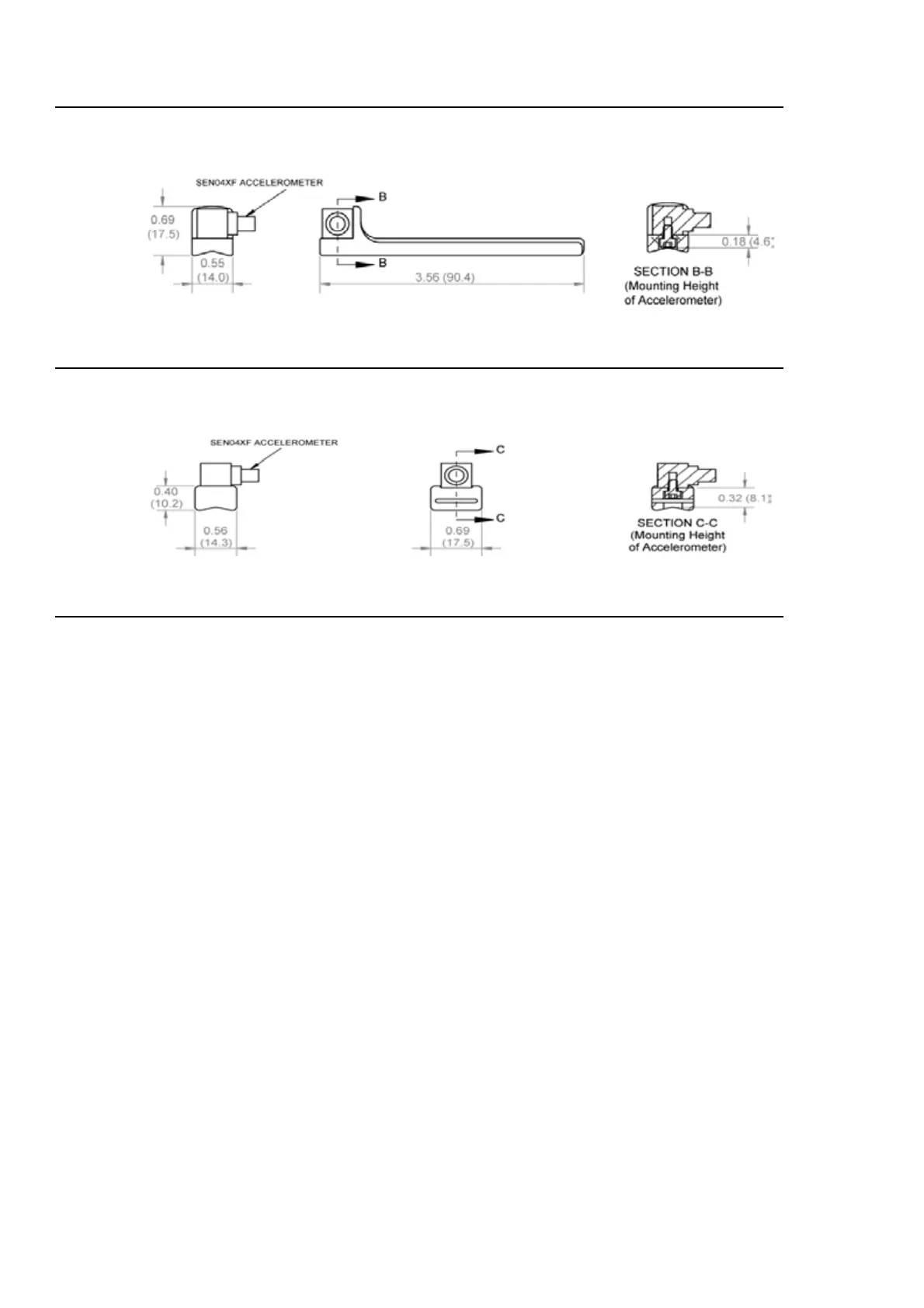

FIGURE B-2 (Handle Adapter with SEN04XF Accelerometer)
B.1.3 ADP082A
FIGURE B-3 (Clamp Adapter with SEN04XF Accelerometer)
B.1.4 Measurements
Frequency Response
The frequency response measurements were performed by suspending the test object and exciting it with a
modal hammer. The responses were measured in x, y and z directions using a triaxial accelerometer con-
nected to the test object using the specified adapter. A graphic is included to illustrate the test configuration.
Triaxial Accelerometer
The triaxial accelerometer used for these tests was a Larson Davis Model SEN041F having a sensitivity of 10
mV/g.
