PLMNL0243 REV. A, Effective Date: 03/24/16 9 FiberMINI ™ 2.0 Operation Manual
3.3 Control Box Mounting

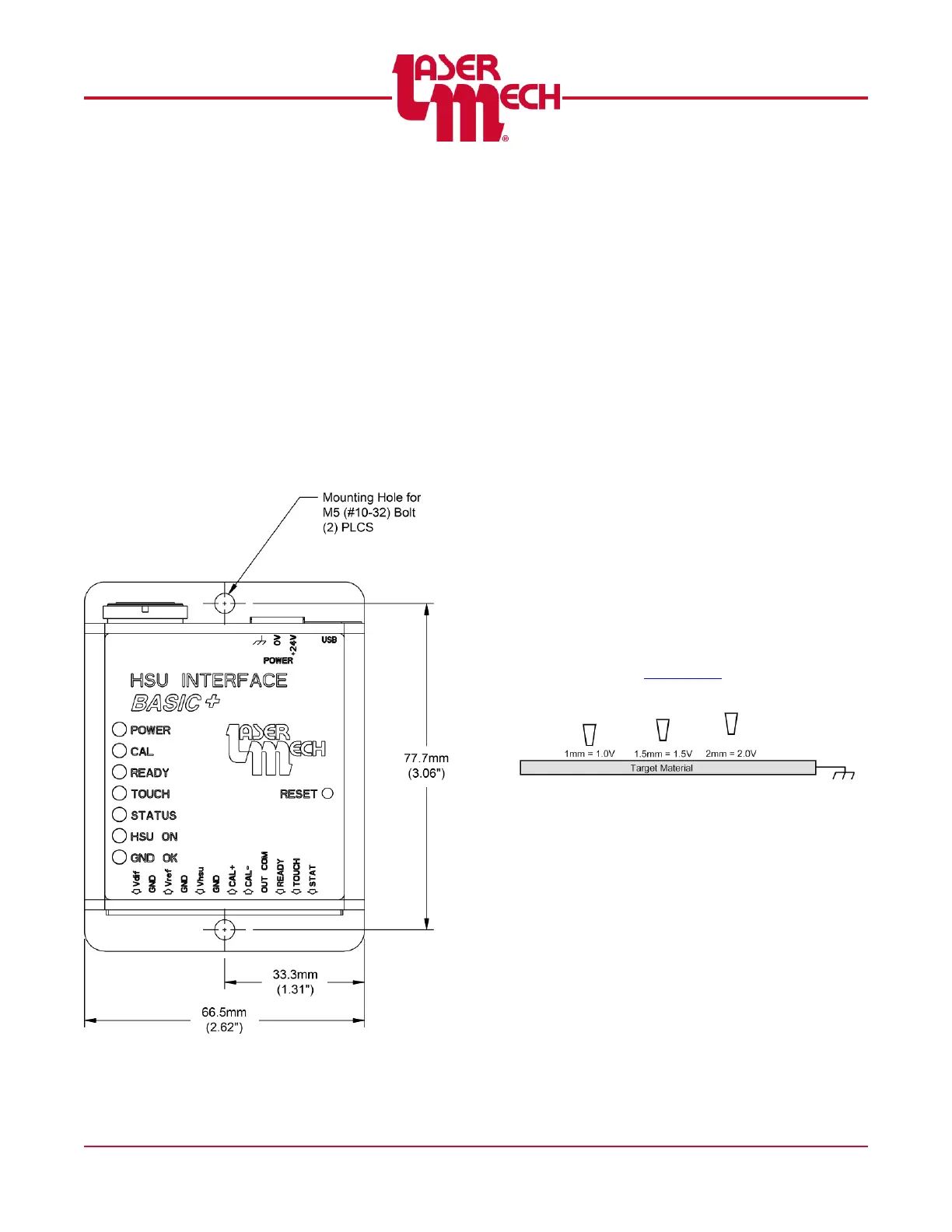

The control box mounting pattern is
illustrated in Figure 12. Important things to
consider when mounting the control box
(PLEBX0063):
 Standard cable length is 15 meters
 Easy access for maintenance.
 Mounting such that debris from the
process is not directed at the control
box.
 Mounting in an area where there are
no water leaks or oils from hydraulic
lines.
Figure 12
3.4 Interface Signals
3.4.1 V
HSU
Standoff (Analog Out)
The V
HSU
analog output is
proportional to the distance between
the sensor and the target material.
See Figure 13.
 Positive progressing voltages
indicate the sensor is moving
further from the target material.
 Negative progressing voltages
indicate the sensor is moving
closer to the target material.
There are two operating curve
outputs; Linear or Optimized.
 The Linear output is scaled at
approximately 1V/mm (e.g.
1mm=1V, 2mm=2V).
 The Optimized output has
varying slopes; as the material
gets closer to an object, the
slope is greater. Please refer to
Section 4.3 for the output setting
and curve selection method.
Example of Linear Feedback Curve
Figure 13
