5.8 Optional Vision Systems

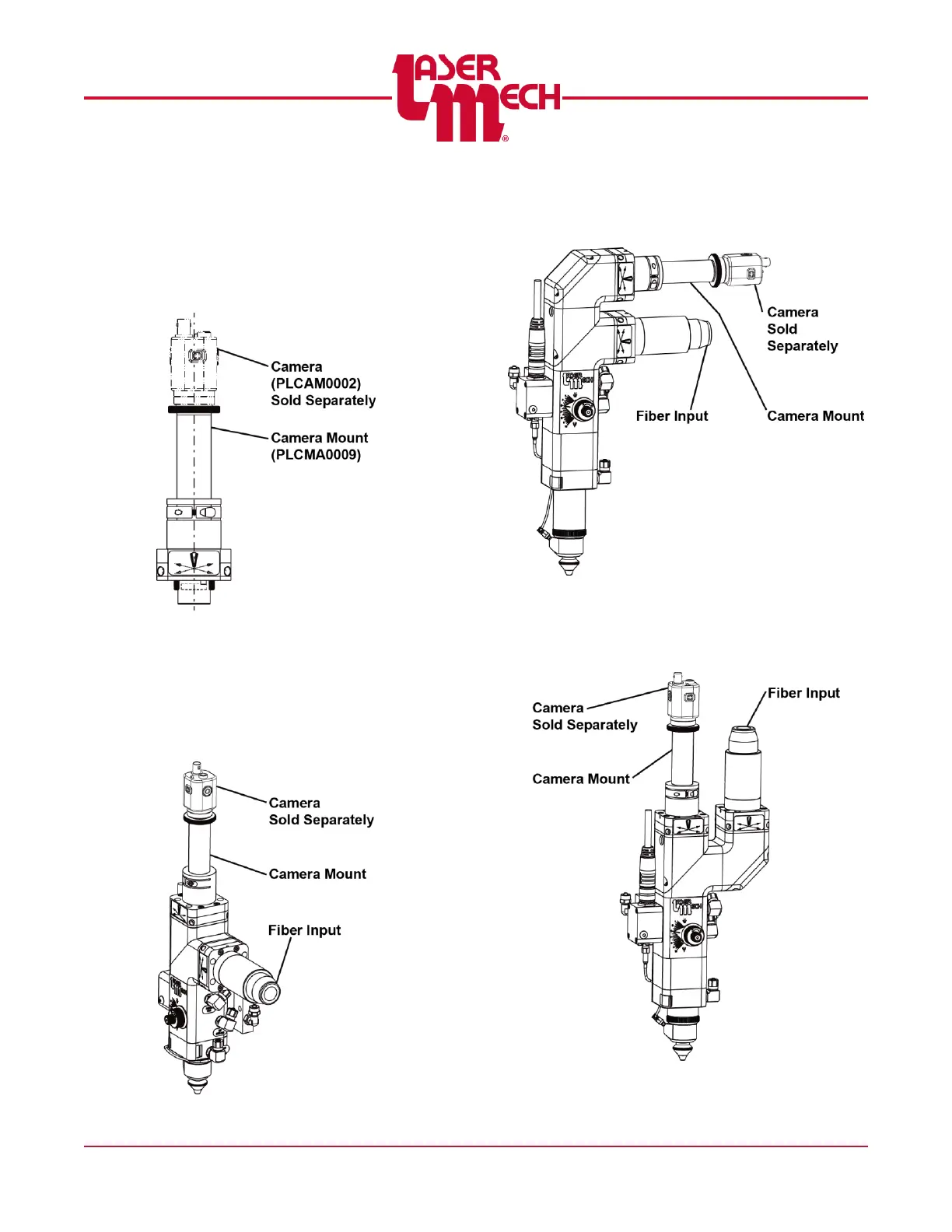

The purpose of the camera mount is to
provide visual observation of the operation
as it is performed. One camera mount
assembly (PLCMA0009) is available. The
camera (PLCAM0002) must be purchased
separately. See Figure 43.
Figure 43
Three mount styles are available to
accommodate differing space restrictions.
 The straight vision option mounts
vertically above the right angle fiber
input. See Figure 44.
Figure 44
 The right angle vision option
mounts horizontally above the fiber
input. See Figure 45.
Figure 45
 The offset vision option mounts
vertically parallel to the fiber input.
See Figure 46.
Figure 46
