PLMNL0243 REV. A, Effective Date: 03/24/16 12 FiberMINI ™ 2.0 Operation Manual
3.5 Internal Illumination
Internal illumination is an option on all
vision systems. Plug it in according to
Figure 15.
A 5VDC 300mA power supply is
included with each vision system.

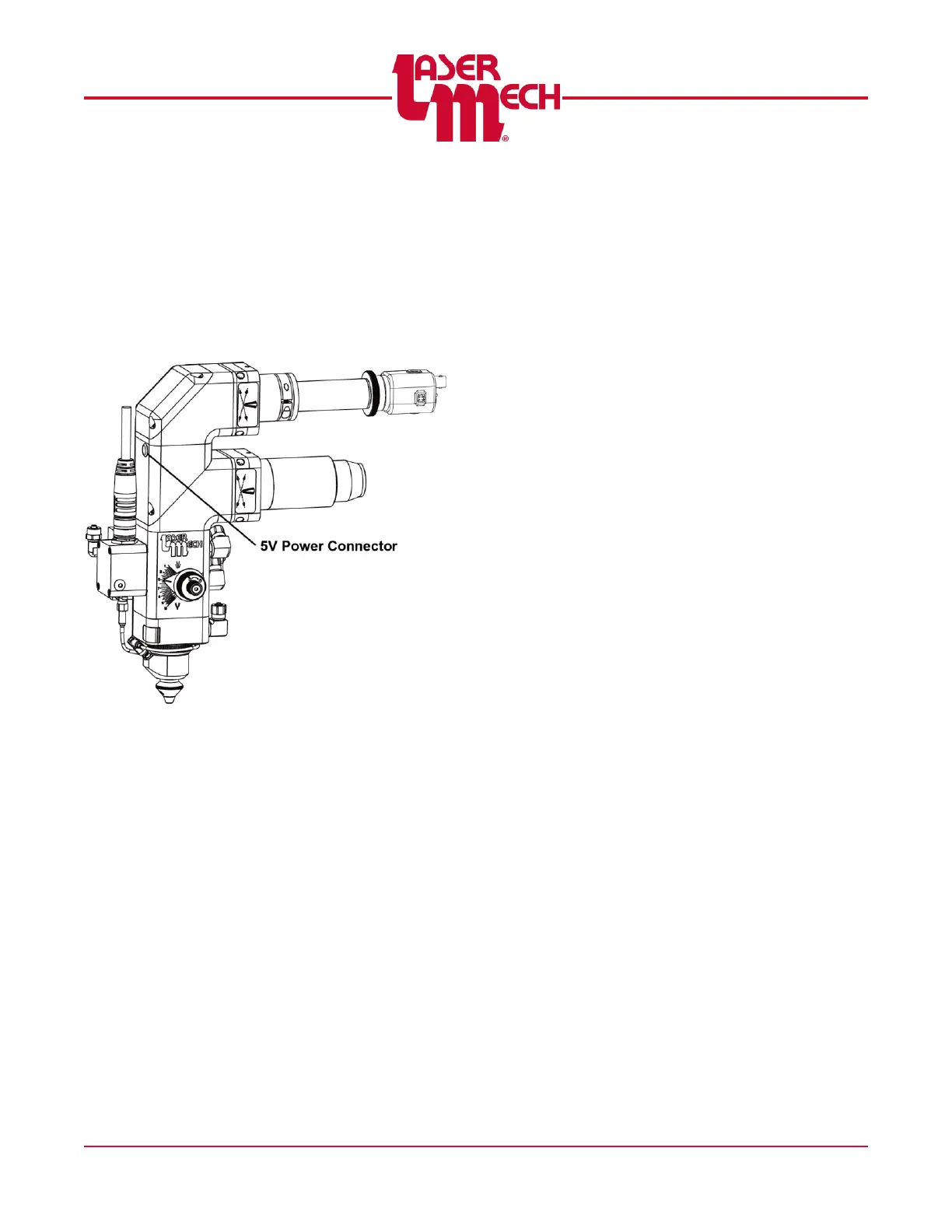

Figure 15
