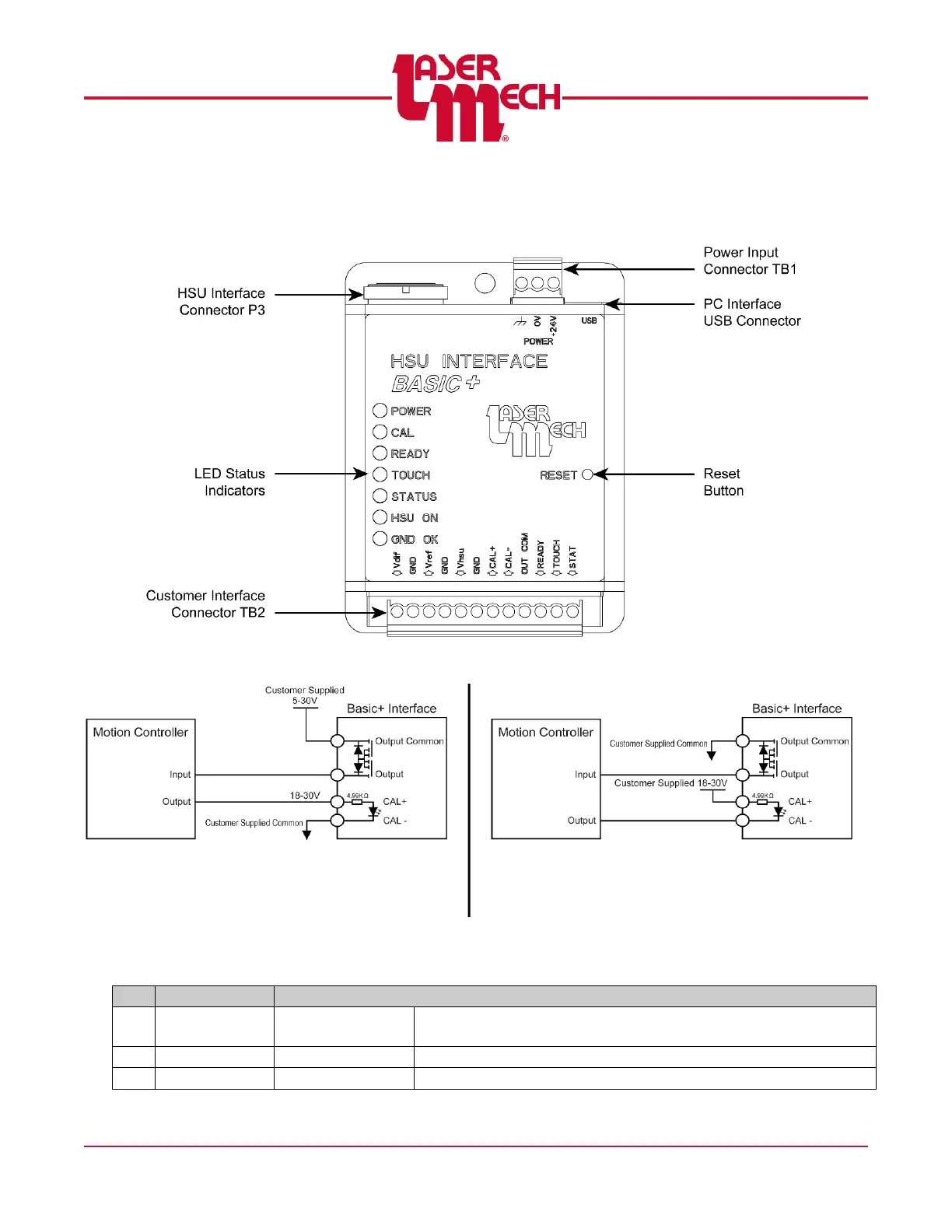

9 Appendix A – Interface Specifications
Example of Sourcing Outputs Example of Sinking Outputs
From Motion Controller and From HSU from Motion Controller and From HSU
Figure 63
TB1
PIN
FUNCTION
DESCRIPTION
1
+24VDC
(18 to 30VDC)
Power input (100mA)
2
0VDC
Ground for all supplies (system common)
3
FGND
Chassis connection for Earth Ground
