5 Service
See Appendix E – Service Dimensions for
helpful assembly dimensions and notes.
5.1 Servicing Gas Jet Tip
5.1.1 Heads with Height Sensing

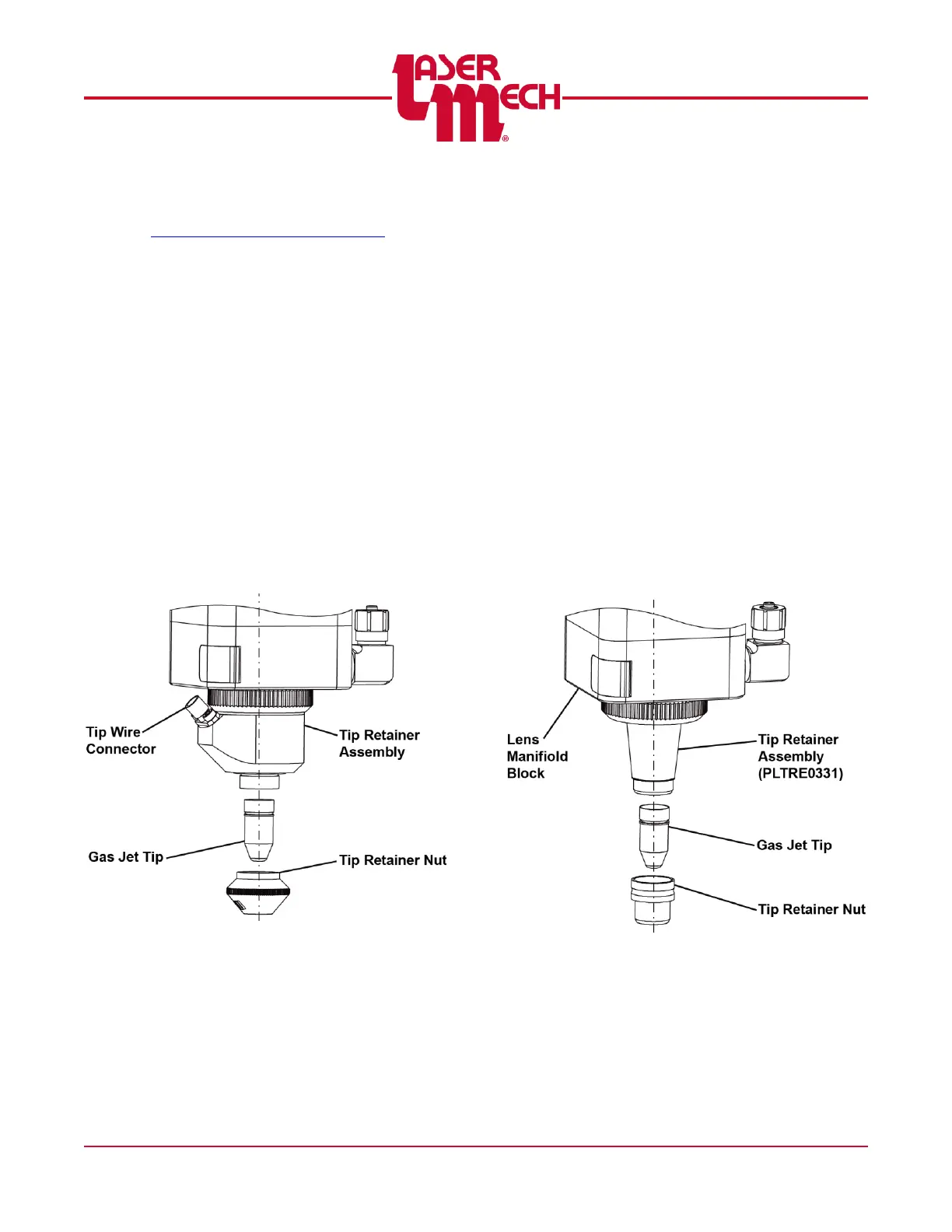

See Figure 31.
To remove the gas jet tip:
1. Unthread the tip retainer nut
from the tip retainer assembly.
2. Remove the gas jet tip by
pulling it straight out.
3. Insert the new gas jet tip.
To replace the gas jet tip:
4. Thread the tip retainer nut, with
the new gas jet tip installed,
onto the tip retainer assembly.
Figure 31
5.1.2 Heads without Height Sensing
See Figure 32.
To remove the gas jet tip:
1. Unthread the tip retainer nut
from the tip retainer assembly.
2. Remove the gas jet tip by
pulling it straight out.
3. Insert the new gas jet tip.
4. To replace the gas jet tip:
5. Thread the tip retainer nut onto
the tip retainer assembly.
Figure 32
